Host Setup & Flashing

This phase prepares the host PC environment, extracts the pre-built L4T Oppila image, and flashes it to the AstrOptix Board via recovery mode.

Install Dependencies

Note

Skip step 1 if you have already installed the dependencies on the host machine.

Step 1: Update Package Lists and Install Required Packages

sudo apt update
sudo apt install -y qemu-user-static sshpass binutils abootimg libxml2-utils nfs-kernel-server u-boot-tools android-tools-fastboot python3-pip lz4
pip3 install -U pip
Prepare Working Directory

Step 2: Download Required Files

Download rc.local and OPPILA_ASTROPTIX.tar.bz2 from the link provided by the Oppila Support.

Step 3: Create a Working Directory

mkdir ~/OPPILA_ASTROPTIX

Step 4: Move the Downloaded Image

mv ~/Downloads/ORIN_NX_IMAGE_ASTROPTIX.tar.bz2 ~/OPPILA_ASTROPTIX/

Step 5: Navigate to the New Directory

cd ~/OPPILA_ASTROPTIX/
Extract the OS Image

Step 6: Extract the Archive

Run the following command. Extraction may take several minutes:

sudo tar -xvJf ORIN_NX_IMAGE_ASTROPTIX.tar.bz2

Once complete, a directory named Linux_for_Tegra will be created inside ~/OPPILA_ASTROPTIX/.

Step 7: Navigate to the Extracted Directory

cd Linux_for_Tegra/
Set Recovery Mode

Step 8: Recovery Mode Setup

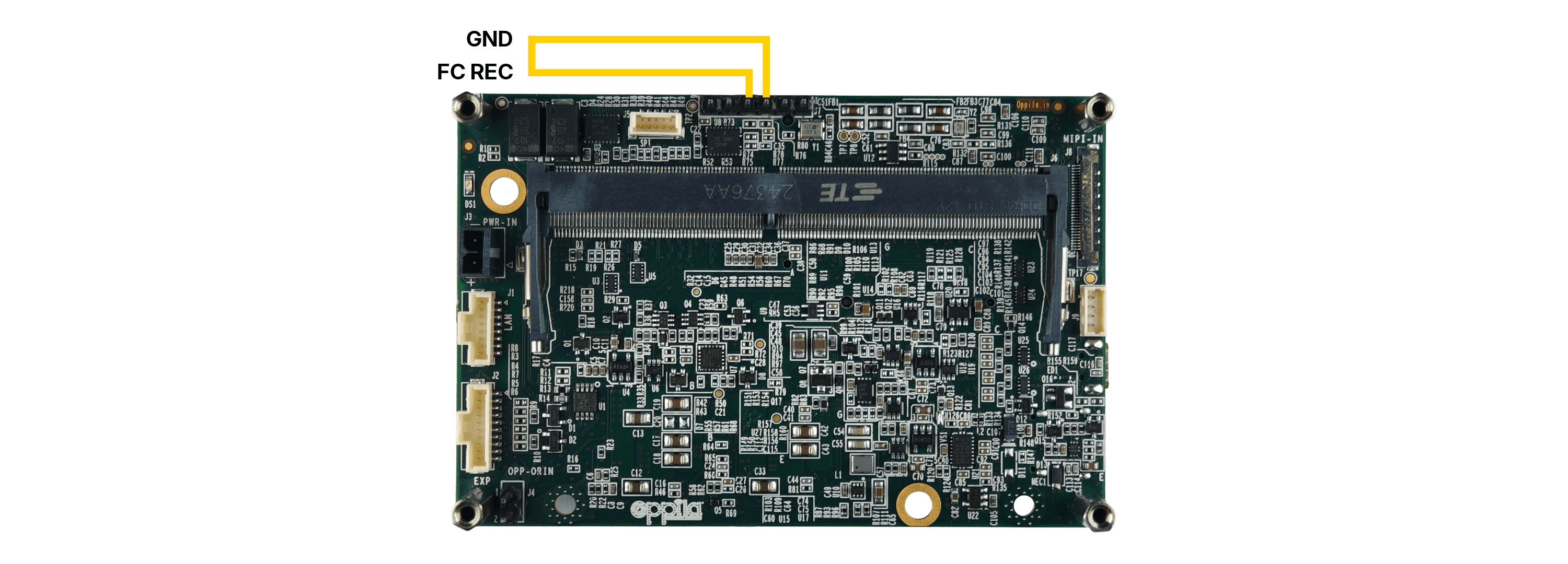

On the AstrOptix AI Carrier Board, short J7 Pin 3 (GND) to J7 Pin 4 (FORCE REC) using a jumper wire, as shown below.

J7 recovery mode — Pin 3 (GND) and Pin 4 (FORCE RECOVERY)

After placing the jumper:

  • Connect the Jetson Orin Nano/NX module to the AstrOptix AI Carrier Board.
  • Insert an NVMe SSD into the M.2 Key M slot (J14).
  • Connect a USB Type-C cable from J11 to the host PC.
  • Power on the board using the provided adapter.
Verify Device Detection

Step 9: Check Jetson Orin Nano/NX is detected in Recovery Mode on Host PC terminal

lsusb

Look for an entry such as: NVIDIA Corp. APX

Note

If the device is not visible, try a different USB cable or ensure jumper is placed in FC REC and GND pins.

Flashing Image

Step 10: Execute the below command to flash image from Host PC to Jetson Orin Nano/Nx

sudo ./nvsdkmanager_flash.sh --storage nvme0n1p1

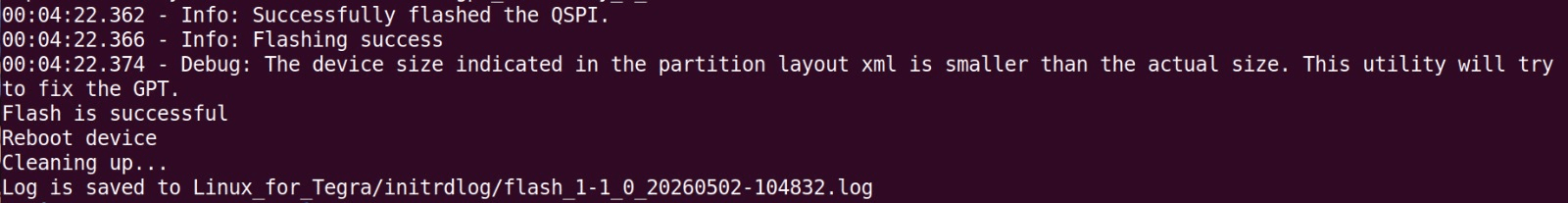

A successful flash is shown in the image below:

Successful flash

Note

The flashing may take around 10-15 minutes.

Post-Flash Setup

Once flashing is complete:

1
Power Off

Power off the AstrOptix Board and disconnect the power cable.

2
Remove Recovery Mode

Remove the jumper from the J7(3rd and 4th pins) recovery mode pins.

3
Connect Camera Module

Connect your camera to the AstrOptix Board:

  • LVDS camera → J13 connector (bottom side)
  • MIPI camera → J8 connector (top side)
4
Power On

Power on the AstrOptix Board with Orin Nano/NX Module.

OEM Configuration Setup

On first boot, you will be guided through the following steps:

  • Language Selection — Choose your preferred language.
  • License Agreement — Accept the terms to continue.
  • Networking — Configure Ethernet or Wi-Fi if needed.
  • User Account — Create your NVIDIA account credentials.
  • Password — Set a secure password for your account.
  • Review & Finish — Confirm your settings and complete setup.

Once done, the device will boot into the NVIDIA Desktop Environment.
