HDMI Interface Board

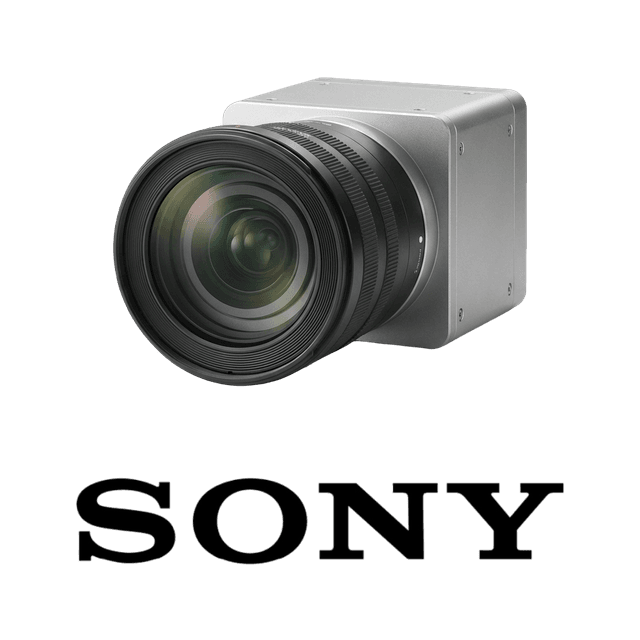

4K UHD HDMI output for Sony FCB-ER8530 and FCB-EW9500H block cameras with VISCA control.

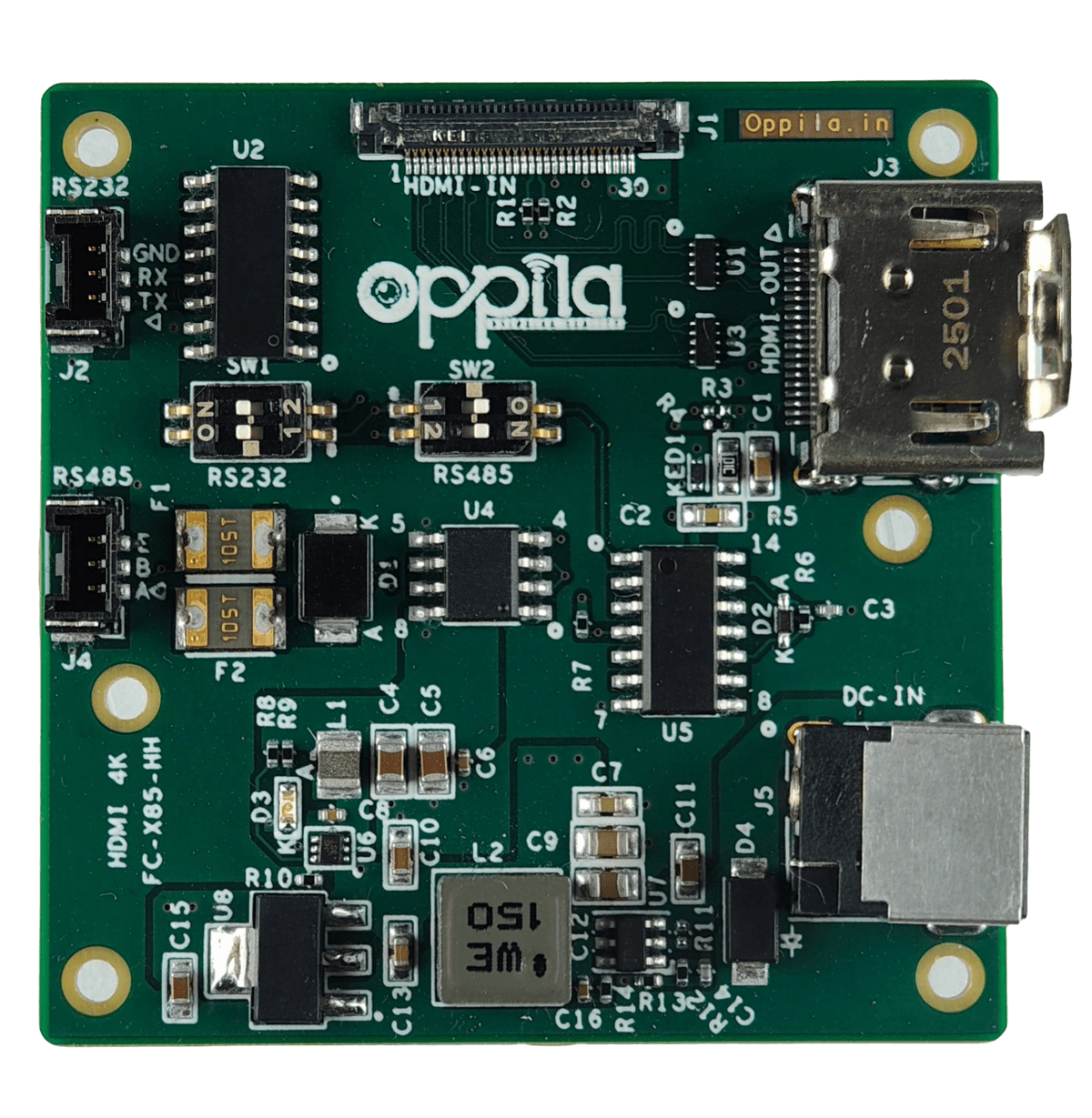

HDMI Interface Board — 4K HDMI Output
The 4K HDMI Interface Board enables high-definition video output from Sony's FCB-ER8530 and FCB-EW9500H cameras. With support for 4K UHD at 30 fps and robust connectivity features, it is ideal for surveillance, broadcasting, and industrial imaging applications.
- Supports Sony FCB-ER8530 / FCB-EW9500H
- 4K UHD (3840 × 2160) @ 30 fps Output
- HDMI 2.0 Interface
- VISCA over UART Control
- Compact 50x60mm Form Factor
High-Definition HDMI Output for Sony Block Cameras
The HDMI Interface Board is designed to unlock the full potential of Sony's 4K block cameras, providing a direct HDMI 2.0 output for high-resolution video monitoring and recording. It seamlessly integrates with the FCB-ER8530 and FCB-EW9500H models, offering a plug-and-play solution for demanding imaging tasks.
Whether used in medical imaging, security surveillance, or industrial inspection, this board ensures pristine image quality and reliable performance. Its compact size allows for easy installation in space-constrained enclosures.
Key Features:
- Direct HDMI 2.0 output for 4K video
- Supports VISCA protocol for full camera control
- Low power consumption (less than 5W)
- Industrial temperature range operation
- Standard mounting holes for easy integration
| Features | Description |
|---|---|
| Camera Compatibility | Sony FCB-ER8530, FCB-EW9500H |
| Video Output | HDMI 2.0, 4K UHD (3840 × 2160) @ 30 fps |
| Camera Interface | 30-pin FFC/FPC cable connector |
| Power Supply | 12V DC via RMC2 |
| Power Consumption | Less than 5W |
| Camera Control | VISCA over UART (Onboard joystick or external controller) |
| Dimensions | 50 x 60mm |
| Operating Temperature | -40°C to 85°C |
No videos available currently.
FAQs
What Sony cameras work with the HDMI interface board?
The Oppila HDMI Camera Interface Board is compatible with Sony FCB-ER8530 (20× optical zoom, 4K) and Sony FCB-EW9500H (30× optical zoom, 4K) block cameras. Both connect via the 30-pin FFC/FPC cable connector.
What resolution does the Sony FCB HDMI interface board support?
The board outputs 4K UHD (3840 × 2160) at 30 fps via HDMI 2.0, matching the full resolution capability of the Sony FCB-ER8530 and FCB-EW9500H cameras.
Can I control the Sony camera through the HDMI interface board?
Yes. The board supports full VISCA camera control over UART.
What is the power requirement for the HDMI interface board?
The board requires 12V DC input.
