3.3V SINGLE APEX DEV KIT
Single AN231E04 dpASP Development Kit for Analog Signal Processing

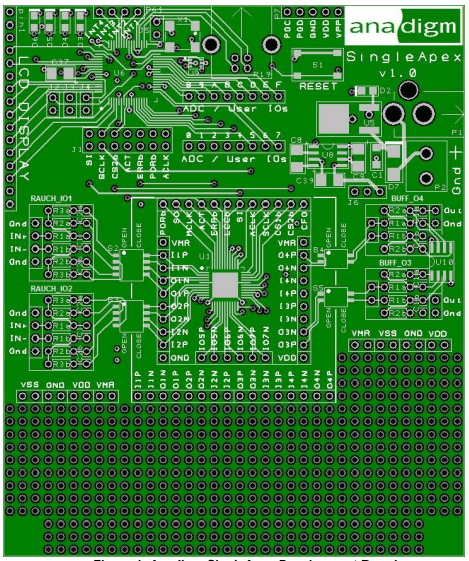

3.3V SINGLE APEX DEV KIT
The 3.3V Single Apex Development Kit is a versatile platform featuring a single AN231E04 dpASP. It is designed for easy evaluation and development of analog signal processing applications, with built-in support for Rauch filters and USB connectivity.
Product Overview
This development kit provides a straightforward way to implement and test analog designs. It features a large breadboard area for custom interface circuitry and supports daisy-chaining for multi-chip system evaluation.
Key Features
- Core FPAA: AN231E04 dpASP with header pins.
- Signal Conditioning: Optional Rauch filter to level shift and prepare input signal (includes single-ended to differential conversion).
- Connectivity: Serial (USB) interface for ”plug and play” connectivity with AnadigmDesigner®2 software.
- Interface: SPI (or host processor) interface for direct connection to digital boards.
- Customization: Large breadboard area for building specific interface circuitry.
| Features | Description |
|---|---|
| FPAA Unit | 1x AN231E04 dpASP. |
| Microcontroller | 32bit 80Mhz (3rd Party) microcontroller. |
| Clock Source | On-board 16-MHz or 40MHz clock source for FPAA Analog clock input. |
| Scalability | Daisy chain capability – allowing multiple boards to be connected. |
| Software Support | Compatible with AnadigmDesigner®2 software Version 2.8.0.2 or later. |
