Tamron MP3010M-EV
Ultra-compact Full HD LVDS block camera with a Sony STARVIS sensor and 10x Optical Zoom.
MP3010M-EV

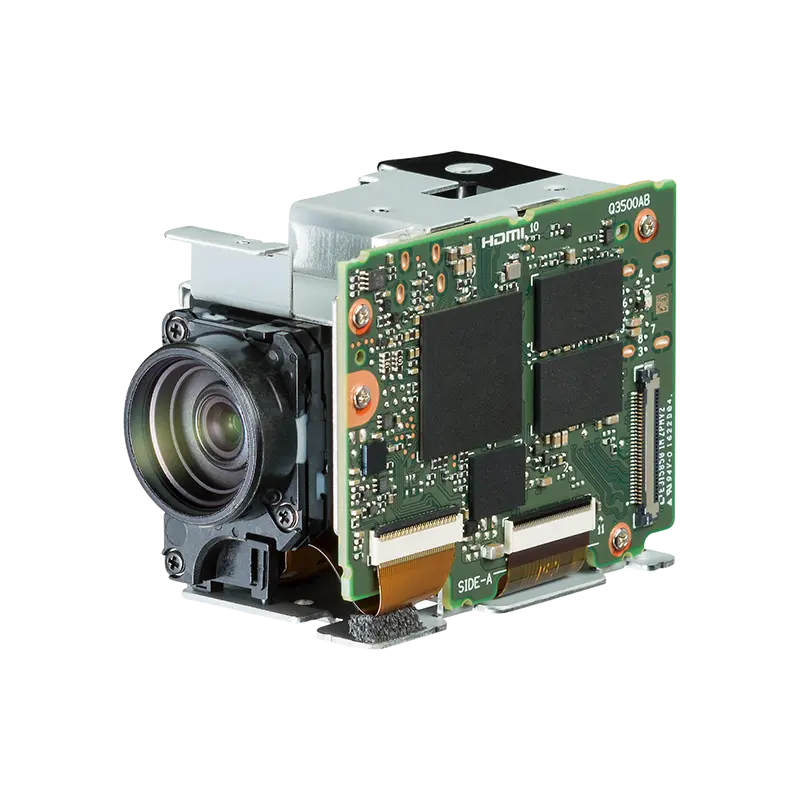

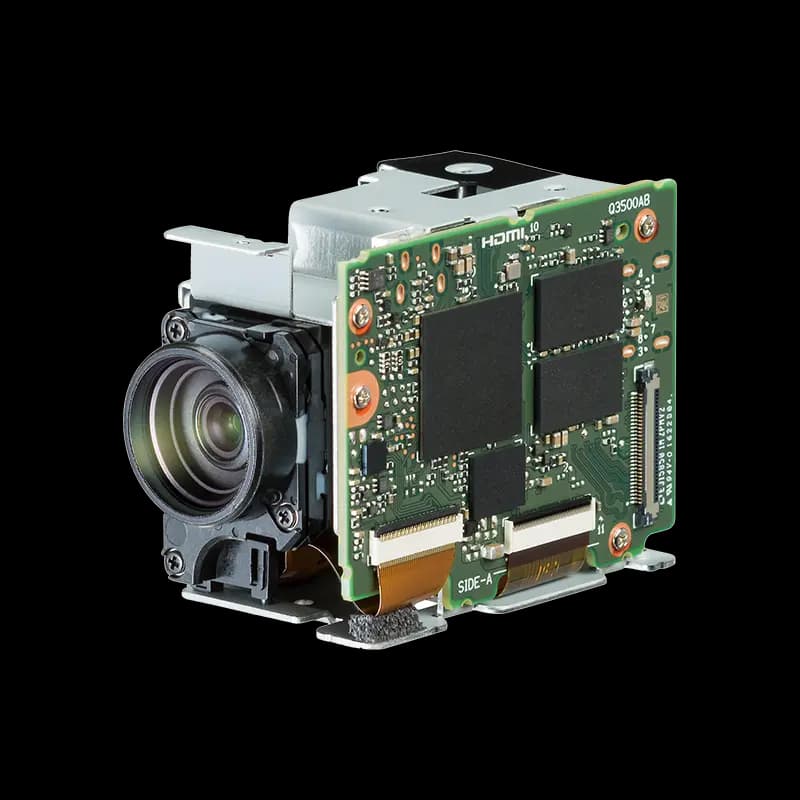

The Tamron MP3010M-EV is an ultra-compact, high-sensitivity Full HD block camera built on a Sony STARVIS™ CMOS image sensor, delivering excellent low-light imaging in a lightweight 70g body.
- Sony STARVIS™ CMOS Sensor (~2.07 MP)
- 10x Optical Zoom (f=3.3–33.0mm, F1.8–3.4)
- Full HD 1080p/60 LVDS Output
- VISCA Protocol Control
- Ultra-Compact Design (~70 g)
Tamron MP3010M-EV – Ultra-Compact STARVIS Camera Block
The MP3010M-EV is an ultra-compact, high-sensitivity Full HD block camera built on a Sony STARVIS™ CMOS image sensor, providing approximately 2.07 megapixels (1920 × 1080) and superior low-light sensitivity down to 0.1 lx (colour) / 0.025 lx (B&W). Its 10x optical zoom (f=3.3–33.0mm, F1.8–3.4) and 1080p@60fps LVDS output deliver clear, detailed imaging even in challenging conditions.
Measuring just 33 × 43 × 59 mm and weighing approximately 70g, the camera is ideal for space-constrained deployments such as drones and embedded vision systems. VISCA protocol control enables precise zoom, focus, and exposure adjustment.
Key Applications:
- Drone & UAV Vision Payloads
- Embedded & Machine Vision
- Security & Surveillance
- Robotics
- Remote Monitoring
| Features | Description |
|---|---|
| Imager | Sony STARVIS™ CMOS Image Sensor |
| Effective Pixels | Approx. 2,070,000 (1920 × 1080) |
| Zoom | 10x Optical Zoom (f = 3.3–33.0 mm, F1.8–3.4) |
| Horizontal Angle of View | 59.2° (wide) to 6.7° (tele) |
| Video Output | LVDS Digital Y/Pb/Pr 4:2:2 (HD); CVBS (SD) |
| Signal System | 1080p/60, 1080p/50, 1080p/30 … down to 720p |
| Electronic Shutter | 1/1 to 1/10,000 sec |
| Minimum Illumination | Colour 0.1 lx / B&W 0.025 lx (F1.8) |
| S/N Ratio | More than 50 dB |
| Camera Control Interface | VISCA protocol |
| Power Requirements | DC 8–12 V (±10%) |
| Power Consumption | Approx. 2.5 W (4.4 W during zoom/focus) |
| Operating Temperature | –5 °C to +60 °C |
| Mass | Approx. 70 g |
| Dimensions | 33 × 43 × 59 mm (W/H/D) |
