Product Manuals

Find technical specifications, setup instructions, hardware connections, and software setup guides for Oppila bridge boards and carrier boards.

Carrier Boards

AstrOptix Orin Carrier Board

Compact, high-performance carrier board for NVIDIA Jetson Orin Nano/NX with LVDS, MIPI CSI-2, Ethernet, M.2, CAN, and GPIO interfaces.

Open docs

AstrOptix Orin Super Carrier Board

Next-generation carrier board for NVIDIA Jetson Orin Nano/NX with updated interfaces.

Open docs

Bridge Boards

AGX Orin MIPI CSI-2 Bridge Board

1 × LVDS
1 × HDMI
2-Channel GMSL3
1 × Native MIPI CSI-2

Combines LVDS–MIPI, HDMI–MIPI, 2-channel GMSL and native MIPI CSI-2 on one board to populate all four camera ports on the NVIDIA Jetson AGX Orin.

Open docs

AGX Orin MIPI CSI-2 Bridge Board

1 × LVDS
1 × HDMI
2 × Native MIPI CSI-2

Combines LVDS–MIPI, HDMI–MIPI and two native MIPI CSI-2 ports on one board to populate all four camera ports on the NVIDIA Jetson AGX Orin.

Open docs

LVDS – GMSL3 Serializer Board

Converts LVDS camera video to a 12 Gbps GMSL3 serial stream over a single coaxial cable, with remote camera control over the GMSL3 link.

Open docs

LVDS – MIPI CSI-2 Bridge Board

Converts LVDS camera output to 4-lane or 2-lane MIPI CSI-2. Includes built-in VISCA control bridge.

NVIDIA Jetson

Raspberry Pi 5

HDMI – MIPI CSI-2 Bridge Board

Converts HDMI input to MIPI CSI-2 output.

NVIDIA Jetson

Raspberry Pi 5

PAL/NTSC – MIPI CSI-2 Bridge Board

Converts PAL/NTSC input to MIPI CSI-2 output.

NVIDIA Jetson

Raspberry Pi 5

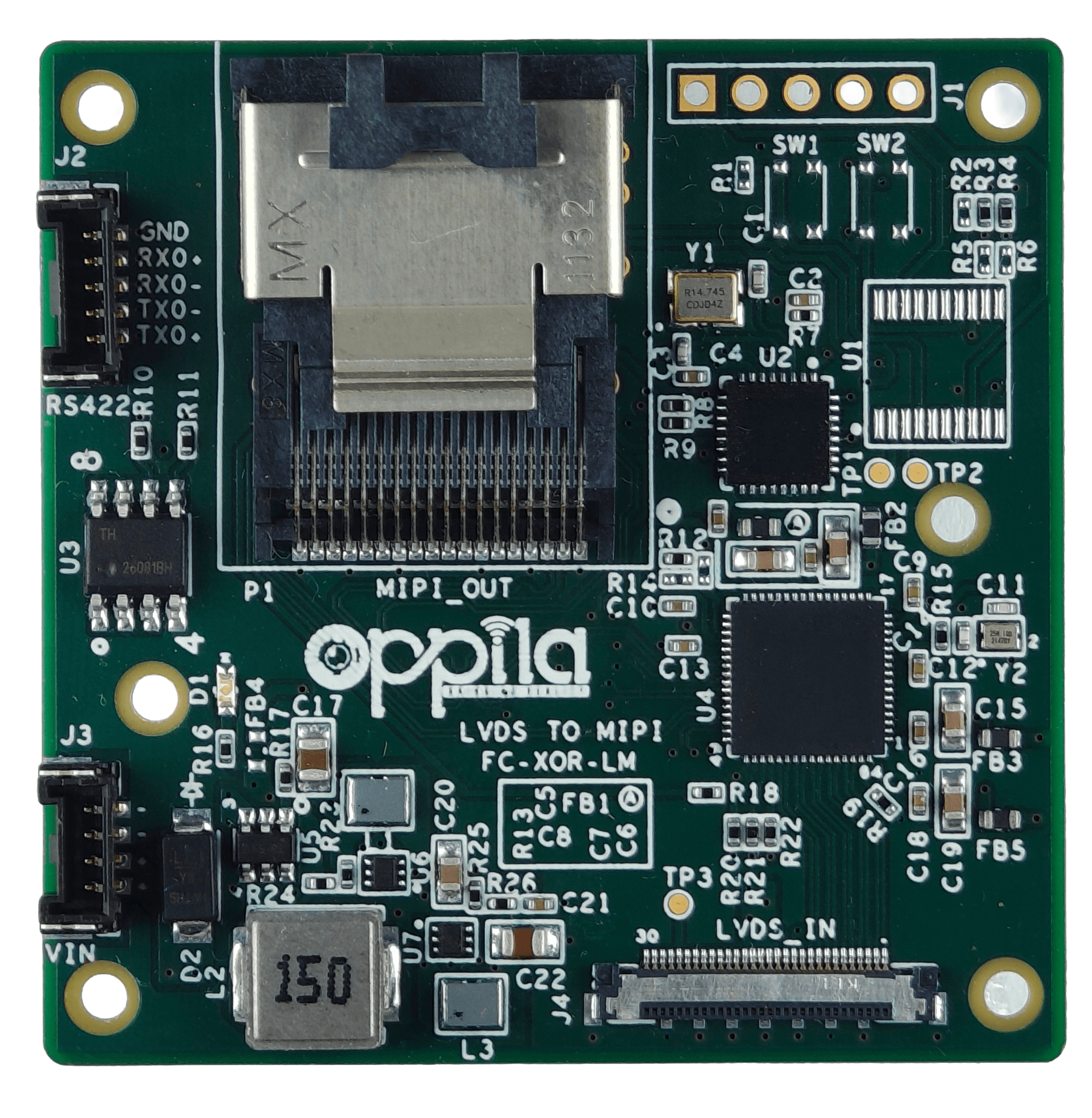

LVDS – MIPI CSI-2 Bridge Board for NXP i.MX8M Plus

Converts LVDS camera output to 4-lane MIPI CSI-2 for NXP i.MX8M Plus. Includes built-in VISCA control bridge.

Open docs

Interface Boards

LVDS – USB 3.0 Interface Board

Converts Sony and Tamron FCB LVDS block camera output to a plug-and-play UVC 1.1 stream over USB 3.0 Type-C, with VISCA control on any Windows or Linux host.

Open docs
