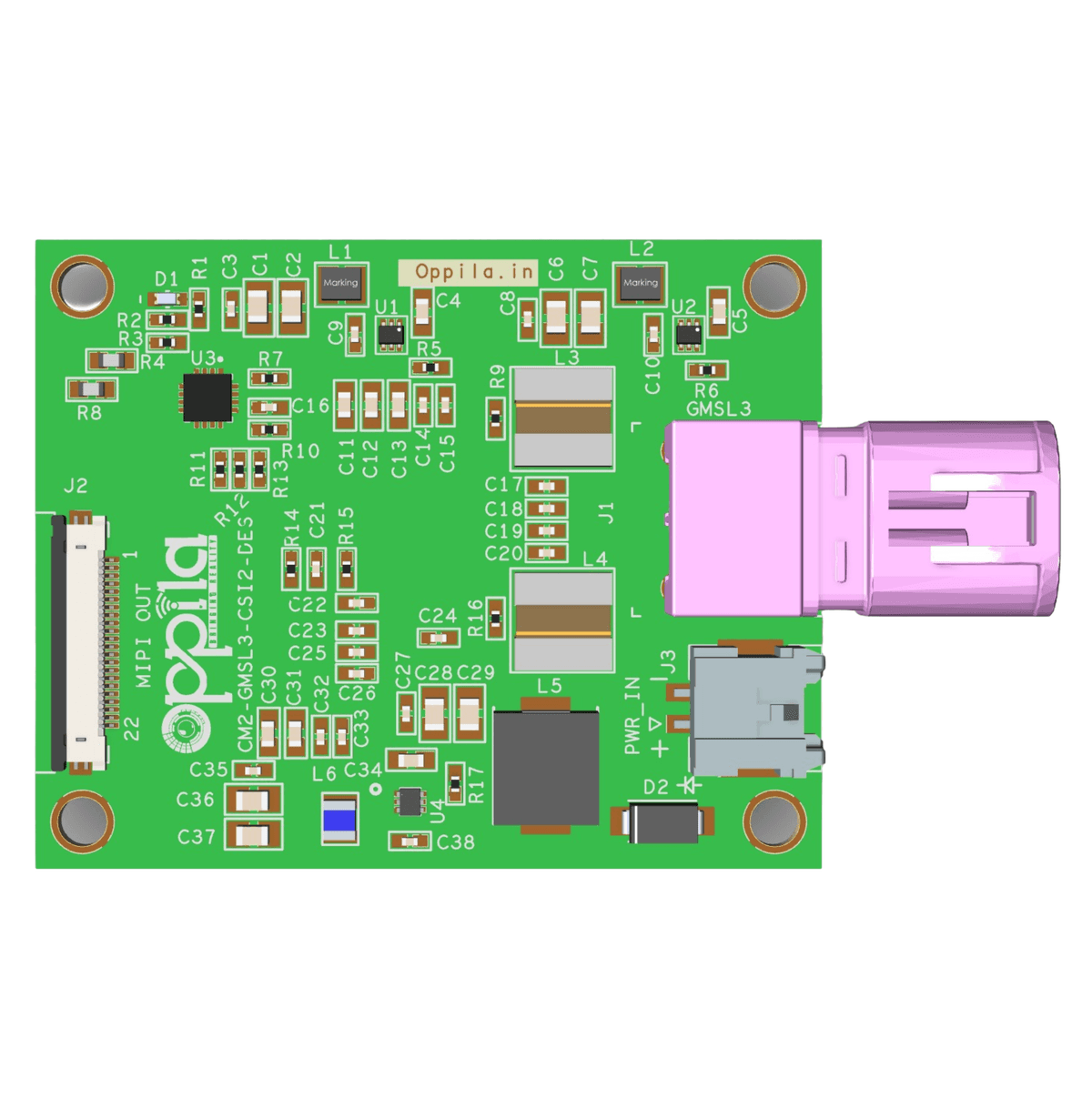

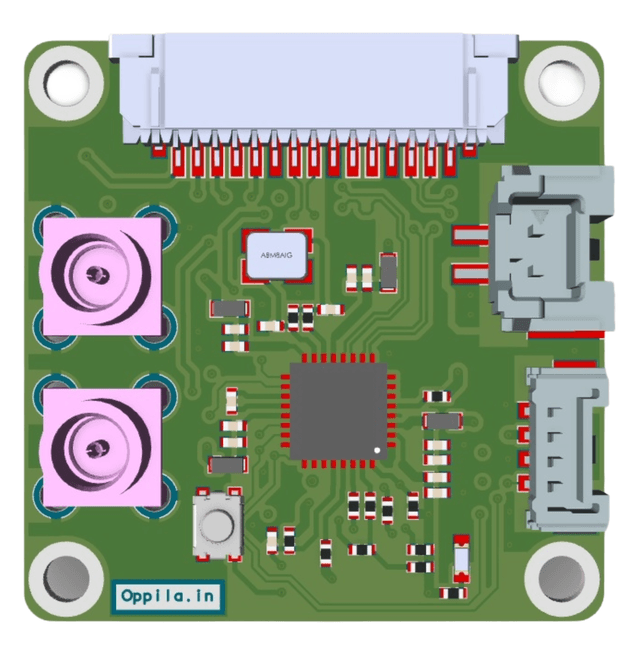

GMSL3 to MIPI Deserializer Board
Converts GMSL3 serialized video streams into MIPI CSI-2 output
GMSL3 to MIPI Deserializer Board
The GMSL3 to MIPI Deserializer Board converts GMSL3 serialized video streams from two independent camera links into a single 4-lane MIPI CSI-2 output.
- Two independent GMSL3 camera links, aggregated into a single 4-lane MIPI CSI-2 output
- 12 Gbps GMSL3 with Power over Coax (PoC), backward compatible with 6 Gbps / 3 Gbps GMSL2
- Compatible with NVIDIA Jetson Orin Nano Super Developer Kit and Raspberry Pi 5 through a single 22-pin FPC connector

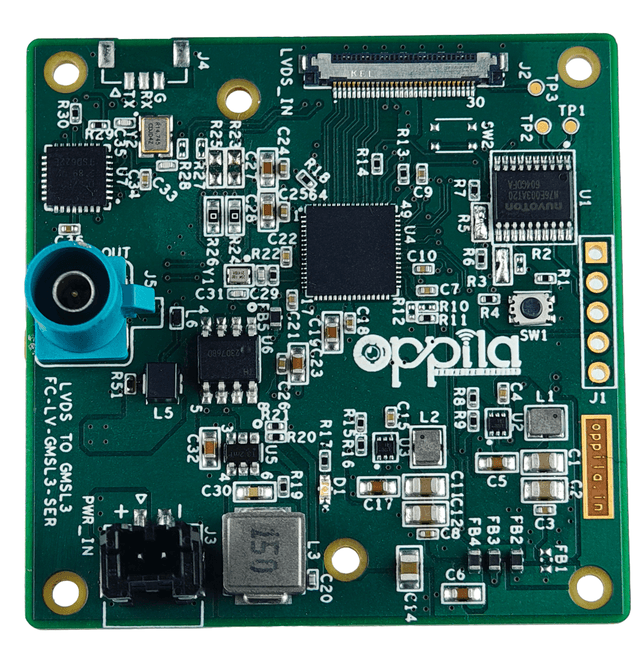

- Supports Sony, Tamron, KT&C, Videology, Wonwoo, Skoopia LVDS cameras through the LVDS to GMSL3 Serializer Board
- MATE-AX dual coax connectors with breakout cables to FAKRA
- 50 × 50 mm form factor, 12–24 V DC input & Temperature range: –20 °C to +85 °C
GMSL3 to MIPI Deserializer Board
The GMSL3 to MIPI Deserializer Board converts GMSL3 serialized video streams into MIPI CSI-2 output. It supports two independent GMSL3 camera links at 12 Gbps, and its onboard GMSL3 de-serializer aggregates both camera links into a single 4-lane MIPI CSI-2 output, delivered to the host processing platform through a single 22-pin FPC connector.
The board connects GMSL3 cameras directly, and LVDS cameras from Sony, Tamron, KT&C, Videology, Wonwoo and Skoopia through a serializer board. The two GMSL3 camera channels operate independently, Power over Coax (PoC) is supported, and the board is backward compatible with 6 Gbps / 3 Gbps GMSL2. MATE-AX dual coax connectors with breakout cables to FAKRA are used for the camera links.
Supported host platforms are the NVIDIA Jetson Orin Nano Super Developer Kit and Raspberry Pi 5. The board runs on a wide-range 12–24V DC input with reverse-voltage and transient-voltage protection and power-status LEDs, comes in a compact 50 × 50 mm form factor, operates from –20°C to +85°C, and is RoHS compliant.
| Parameter | Details |
|---|---|
| Camera Interface | 2 × independent GMSL3 camera links (MATE-AX dual coax connectors with breakout cables to FAKRA) |
| GMSL Link Rate | 12 Gbps GMSL3, backward compatible with 6 Gbps / 3 Gbps GMSL2 |
| Camera Power | Power over Coax (PoC) |
| MIPI CSI-2 Output | Single 22-pin FPC connector, 4-lane MIPI CSI-2 (two camera links aggregated) |
| Compatible Cameras | GMSL3 cameras; LVDS cameras (Sony, Tamron, KT&C, Videology, Wonwoo, Skoopia) through serializer board |
| Supported Host Platforms | NVIDIA Jetson Orin Nano Super Developer Kit, Raspberry Pi 5 |
| Input Voltage | Wide-range 12–24 V DC |
| Protection | Reverse-voltage and transient-voltage protection |
| Indicators | Power-status LEDs |
| Board Dimensions (L × W) | 50 × 50 mm |
| Operating Temperature | −20 °C to +85 °C |
| Compliance | RoHS compliant |
GMSL3 to MIPI Deserializer Board Documentation
Product manuals for this board are coming soon.
- Connector PinoutsPower, GMSL3 camera and 22-pin MIPI CSI-2 connector pin descriptions.Coming soon
- Mechanical DimensionsPCB dimensions, weight and mounting holes.Coming soon
- Software & DriversHost setup, driver installation and video streaming.Coming soon
- Troubleshooting GuideResolving common camera, link and video issues.Coming soon
- Release NotesSoftware driver version history and update changelogs.Coming soon
Kernel Drivers
Driver packages for this board are coming soon.
- NVIDIA Jetson Orin Nano Super Developer KitKernel driver package for the GMSL3 to MIPI Deserializer Board.Coming soon
- Raspberry Pi 5Kernel driver package for the GMSL3 to MIPI Deserializer Board.Coming soon
FAQs
What does the GMSL3 to MIPI Deserializer Board do?
It converts GMSL3 serialized video streams into MIPI CSI-2 output. An onboard GMSL3 de-serializer aggregates two camera links into a single 4-lane MIPI CSI-2 output for the host processing platform.
How many cameras can I connect?
Two. The board supports two independent GMSL3 camera links, and the two camera channels operate independently.
Which host platforms are supported?
The NVIDIA Jetson Orin Nano Super Developer Kit and Raspberry Pi 5. The board connects to the host through a single 22-pin FPC connector carrying 4-lane MIPI CSI-2.
Can I use LVDS block cameras with this board?
Yes, through a serializer board. LVDS cameras from Sony, Tamron, KT&C, Videology, Wonwoo and Skoopia connect to the LVDS to GMSL3 Serializer Board, which sends the video over GMSL3 to this deserializer.
Is it compatible with GMSL2 cameras?
Yes. The board supports 12 Gbps GMSL3 operation and is backward compatible with 6 Gbps / 3 Gbps GMSL2.
Can the board power the cameras over the coax cable?
Yes. The board supports Power over Coax (PoC).
Which connectors does the board use?
MATE-AX dual coax connectors with breakout cables to FAKRA for the GMSL3 camera links, and a single 22-pin FPC connector for the MIPI CSI-2 connection to the host.
What power supply does the board need?
The board accepts a wide-range 12–24 V DC input, with reverse-voltage and transient-voltage protection and power-status LEDs.
When will documentation and drivers be available?
Product manuals and driver packages for this board are coming soon. In the meantime, contact technical support at support@oppila.in for integration help.
