LVDS to MIPI CSI-2 Bridge Board
Converts LVDS video from Sony FCB, Tamron, and KT&C block cameras into 4-lane MIPI CSI-2.
LVDS to MIPI CSI-2 Bridge Board

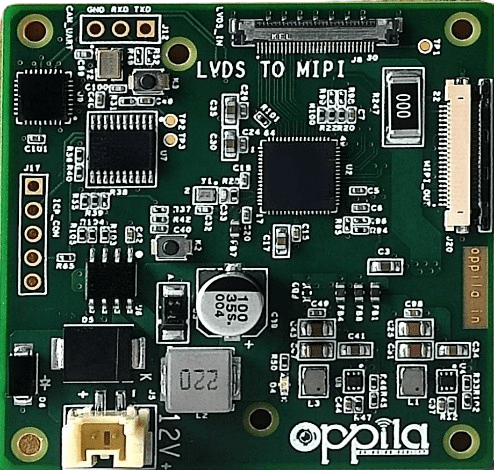

The LVDS–MIPI CSI-2 Bridge Board is a compact, high-performance camera interface bridge designed to convert LVDS video output from Sony and Tamron LVDS block cameras into a MIPI CSI-2 signal compatible with leading embedded AI computing platforms.
- Compatible pinouts with Sony, Tamron, Wonwoo, Skoopia, Videology, KT&C LVDS block cameras.
- Converts LVDS video signals to 4-lane MIPI CSI-2 output
- Compatible with NVIDIA Jetson Orin Super Developer Kit, Connect Tech Hadron, AVerMedia D133 & Waveshare Jetson Orin IO-Base carrier boards and Raspberry Pi 5.
- I²C-to-UART bridge for VISCA control
- 50 × 50 mm form factor & Temperature range: –20 °C to +85 °C
Supported Configurations
- Cameras: Sony FCB-EV9520L / FCB-EV9500L · Tamron MP3010M-EV · KT&C ATC-HZ5540T-LP · Videology 24Z2.1W-10X-LVDS-462 · Wonwoo MM‑G405
- Host platforms: AstrOptix Orin Super Carrier Board · NVIDIA Jetson Orin Super Developer Kit · Connect Tech Hadron Carrier · AVerMedia D133 Carrier Board · Waveshare Jetson Orin IO Base Carrier Board · Raspberry Pi 5
- Software versions:
- NVIDIA – JetPack 6.2.2 / L4T 36.5
- Raspberry Pi 5 – OS Trixie / Kernel 6.12.75+rpt-rpi-2712
Above are the default supported combinations. Customization is offered for other cameras, host platforms and software kernel versions.
LVDS to MIPI CSI-2 Bridge Board

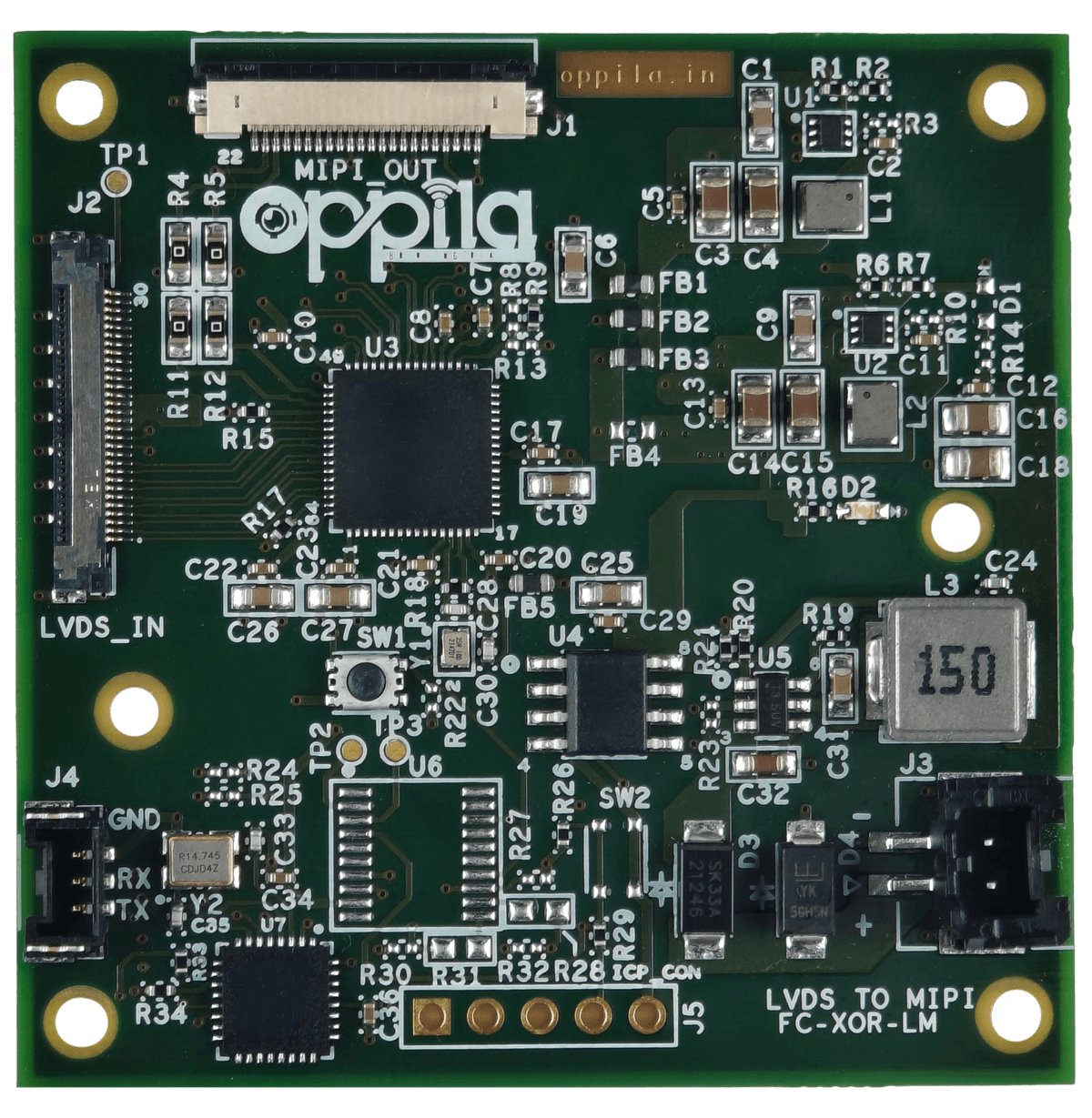

The LVDS–MIPI CSI-2 Bridge board is a compact, high-performance camera interface bridge designed to convert LVDS video output from Sony FCB-EV9520L / FCB-EV9500L, Tamron MP3010M-EV, KT&C ATC-HZ5540T-LP, Wonwoo MM‑G405 and Videology 24Z2.1W-10X-LVDS-462 LVDS block cameras into a MIPI CSI-2 signal compatible with leading embedded AI computing platforms such as the NVIDIA Jetson Orin Super Developer Kit, AVerMedia D133 Carrier Board, Connect Tech Hadron Carrier, Waveshare Jetson Orin IO - Base Carrier Board and the Raspberry Pi 5 and any host platform with 4-lane, 22-pin MIPI CSI-2 output (Raspberry Pi 5 pinout).
The bridge board enables real-time Full HD (1080p60) video streaming while maintaining reliable video transmission and signal integrity. The FCB cameras are controlled via a 3.3 V CMOS-level VISCA interface through an onboard I²C-to-UART bridge. This configuration enables comprehensive camera control—including zoom, focus, exposure, and other VISCA-supported functions—to be performed directly from the host platform over I²C using the same MIPI CSI-2 interface connector. As a result, no external serial adapters or additional control wiring are required.
Engineered for embedded vision and AI applications, the LVDS–MIPI CSI-2 Bridge Board features a 4-lane MIPI CSI-2 output, a wide-range 12–30 V DC input with onboard power conditioning, and an optimized design for reliable operation in demanding environments. The board’s ultra-compact 50 × 50 mm footprint and simplified hardware integration make it an ideal solution for AI edge systems, robotics, machine vision, and defense imaging platforms requiring reliable, real-time video streaming and embedded camera control.
Applications:
- AI Edge Computing and Vision Analytics
- Robotics and Autonomous Platforms
- Industrial & Machine Vision Systems
- Medical & Diagnostic Imaging Instruments
- UAV / ROV Vision Payloads
- Security and Surveillance Cameras
- Broadcast and Multimedia Streaming
- Research, Development & Prototyping
| Features | Description |
|---|---|
| Power Input | 12-30 V DC regulated (via 2-pin connector) |
| Camera Interface | 30-pin LVDS (Single mode) micro-coaxial interface |
| MIPI CSI-2 Output | 4-lane 22-pin MIPI CSI-2 (FFC/FPC) |
| Supported Video Format | Up to Full HD 1080p 60fps (camera-dependent) |
| Camera Control | • VISCA over UART (3.3 V CMOS) bridged to I²C (host) • External onboard UART header |
| Indicators | Power LED (Green) |
| Board Dimensions (L × W) | 50 mm × 50 mm, 6 x M2 mounting holes |
| Board weight | 10.8 g |
| Operating Temperature | −20 °C to +85 °C |
| Compliance | MIPI CSI-2 Specification, RoHS |
| Recommended Supply | 12 V DC, 1.5 A |
| Camera Compatibility (H/W pinout) | LVDS Block Cameras (Sony, Tamron, KT&C, Videology, Wonwoo and Skoopia) |
| Supported Host Platforms | • NVIDIA Jetson Orin Super Developer Kit, Connect Tech Hadron Carrier, AVerMedia D133 Carrier Board, Waveshare Jetson-Orin IO-Base Carrier Board and Raspberry Pi 5 • Any host platform with 4-lane, 22-pin MIPI CSI-2 output (Raspberry Pi 5 pinout) |
LVDS – MIPI CSI - 2 Documentation
Everything you need to integrate and deploy the bridge board.
Kernel Drivers
| Module | Description | L4T Release | Status |
|---|---|---|---|
| OPPILA_ORIN_L4T_36.5.0_INTEGRATION_LM.zip | Configuration folder | 36.5.0 | Download |
| Module | Description | Kernel Release | Status |
|---|---|---|---|
| OPPILA_RASP_TRIXIE_64_INTEGRATION_LM.zip | Configuration folder | 6.12.75+rpt-rpi-2712 | Download |
FAQs
Which cameras does the Oppila LVDS to MIPI CSI-2 Bridge Board support?
The bridge board supports any LVDS block camera compatible with the Sony FCB-EV9520L 30-pin KEL pinout — including Sony FCB-EV9520L / EV9500L, Tamron MP3010M-EV, Wonwoo, Videology, Skoopia and KT&C LVDS cameras.
Which host platforms does the bridge board work with?
The board outputs 4-lane MIPI CSI-2 and is validated on the NVIDIA Jetson Orin Super Developer Kit, Connect Tech Hadron Carrier, AVerMedia D133 Carrier Board, Waveshare Jetson Orin IO-Base Carrier Board and Raspberry Pi 5. It also works with any host platform with 4-lane, 22-pin MIPI CSI-2 output (Raspberry Pi 5 pinout).
How is the camera controlled — zoom, focus, exposure?
The board integrates an on-board I²C-to-UART bridge that converts host I²C commands into 3.3 V CMOS VISCA messages. Zoom, focus, exposure and all VISCA functions are driven from the Jetson over the same MIPI CSI-2 connector — no external serial wiring required.
What video resolution and latency does it deliver?
Up to Full HD 1080p at 60 fps (camera dependent) with low-latency uncompressed streaming over 4-lane MIPI CSI-2 — suitable for real-time AI inference, robotics and industrial vision.
What are the board dimensions and operating temperature?
The board is 50 × 50 mm with 6 × M2 mounting holes, weighs 10.8 g and operates from −20 °C to +85 °C. Input is 12–30 V DC regulated; a 12 V DC, 1.5 A supply is recommended.
