3.3V QUAD APEX DEV KIT
Quad AN231E04 dpASP Development Kit for Complex Signal Processing
3.3V QUAD APEX DEV KIT

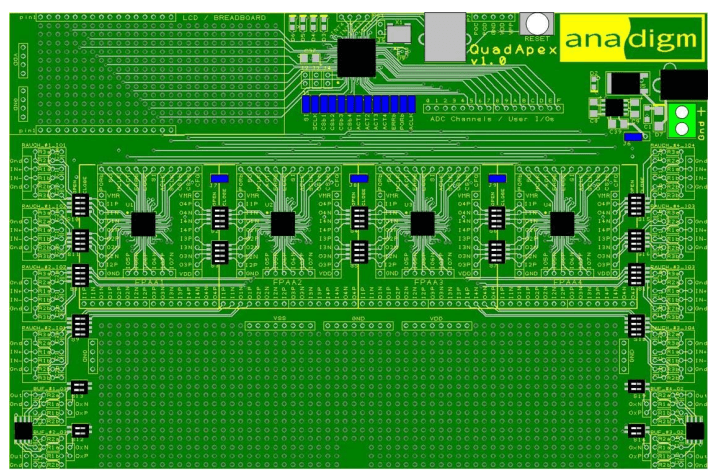

The 3.3V Quad Apex Development Kit is a powerful platform featuring four AN231E04 dpASPs. It allows for complex analog signal processing designs with user-selectable inter-FPAA connections and easy plug-and-play connectivity via USB.
Product Overview
This development board is designed for multi-chip system evaluation, allowing you to configure 1, 2, 3, or 4 FPAAs. It includes a large breadboard area for custom circuitry and supports SPI interfacing for direct connection to digital boards.
Key Features
- Multi-FPAA: FOUR AN231E04 dpASP with header pins and user-selectable inter FPAA connections.
- Connectivity: Serial (USB) interface for ”plug and play” connectivity with AnadigmDesigner®2 software.
- Interface: SPI (or host processor) interface for direct connection to digital boards.
- Customization: Large breadboard area for building specific interface circuitry.
- Clock Source: On-board 16-MHz or 40MHz clock source for FPAA Analog clock input.
| Feature | Description |
|---|---|
| FPAA Units | 4x AN231E04 dpASPs. |
| Microcontroller | 32bit 80Mhz (3rd Party) microcontroller. |
| Filter Options | Pre-laid out options for Rauch Filter on Input/Output. |
| Scalability | Easy choice of 1, 2, 3 or 4 FPAA's to be configured. |
| Software Support | Compatible with AnadigmDesigner®2 software Version 2.8.0.2 or later. |
