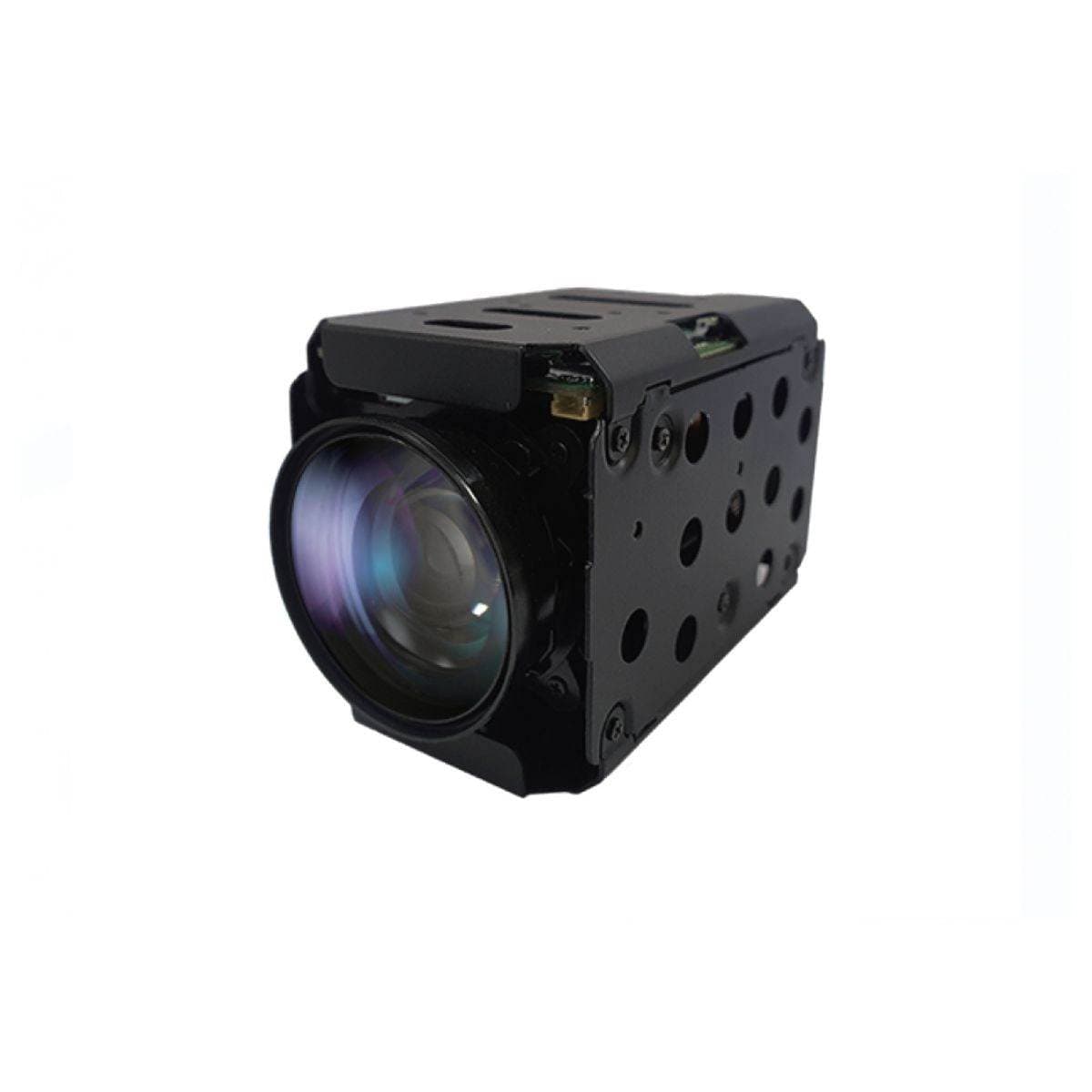

KT&C ATC-HZ5540T-LP
Global Shutter LVDS block camera with 1/2.9-type CMOS sensor and 40x Optical Zoom for motion-free long-range imaging.
ATC-HZ5540T-LP
The KT&C ATC-HZ5540T-LP is a high-performance Global Shutter block camera with a 1/2.9-type 1.58MP CMOS sensor and 40x optical zoom, delivering motion-free imaging for industrial, surveillance, and machine vision applications.
- 1/2.9-type Progressive Scan Global Shutter CMOS Sensor (1.58MP)
- 40x Optical Zoom + 12x Digital (420x AF Zoom)
- Up to 1080p/60 via LVDS / Parallel
- Motion-Free Global Shutter
- Excellent Low-Light Performance (0.01 lx day / 0.007 lx night)
KT&C ATC-HZ5540T-LP – Global Shutter Camera Block
The ATC-HZ5540T-LP is a high-performance Global Shutter block camera built on a 1/2.9-type 1.58MP (1456 × 1088) Progressive Scan CMOS sensor. Its Global Shutter design captures the entire frame simultaneously, eliminating motion blur and rolling shutter artifacts — critical for fast-moving targets in ALPR, metrology, and machine vision.
With 40x optical zoom (f=4.25–170mm, F1.6–4.95), up to 1080p@60fps via LVDS/Parallel output, and excellent low-light sensitivity down to 0.01 lux (day) / 0.007 lux (night), the camera delivers sharp, stable imaging across demanding deployments. Multi-protocol control (VISCA, Pelco-D, Pelco-P, Hitachi with automatic detection) enables flexible integration with existing camera control systems.
Key Applications:
- Automatic License Plate Recognition (ALPR)
- Long-Range Surveillance
- Machine Vision & Metrology
- Autonomous Inspection Drones
- Intelligent Transport Systems (ITS)
| Features | Description |
|---|---|
| Imager | 1/2.9 Type SONY Progressive Scan Global Shutter CMOS Sensor |
| Effective Pixels | 1.58 MP (1456 H × 1088 V) |
| Zoom | 40x Optical + 12x Digital (420x AF Zoom) |
| Lens | f = 4.25–170 mm, F1.6 (W) – 4.95 (T) |
| Video Output | LVDS / Parallel (up to 1080p@60/50), CVBS |
| Shutter Type | Global Shutter (motion-free, no rolling shutter artifacts) |
| Min. Illumination | 0.01 lx (day) / 0.007 lx (night, IR-cut on) at F1.6 |
| S/N Ratio | More than 55 dB (AGC off, Sens-Up off) |
| Camera Control Interface | VISCA / Pelco-D / Pelco-P / Hitachi (auto-detect), RS232 TTL UART (2400 to 115200 bps) |
| Power Requirements | 12 V DC (9 V to 15 V DC) |
| Power Consumption | Max. 8.4 W (4.5 W non-working zoom & focus) |
| Operating Temperature | –10 °C to +50 °C |
| Mass | Approx. 315 g |
| Dimensions | 53.2 × 62.0 × 101.2 mm (W/H/D) |
