Camera Connection

This section covers physical camera connections on the AstrOptix AI Carrier Board — LVDS and MIPI CSI-2 interfaces.

LVDS Camera Connection

Connect the LVDS camera to J13 (LVDS, bottom side) using a Kel cable.

Board Connector (J13)

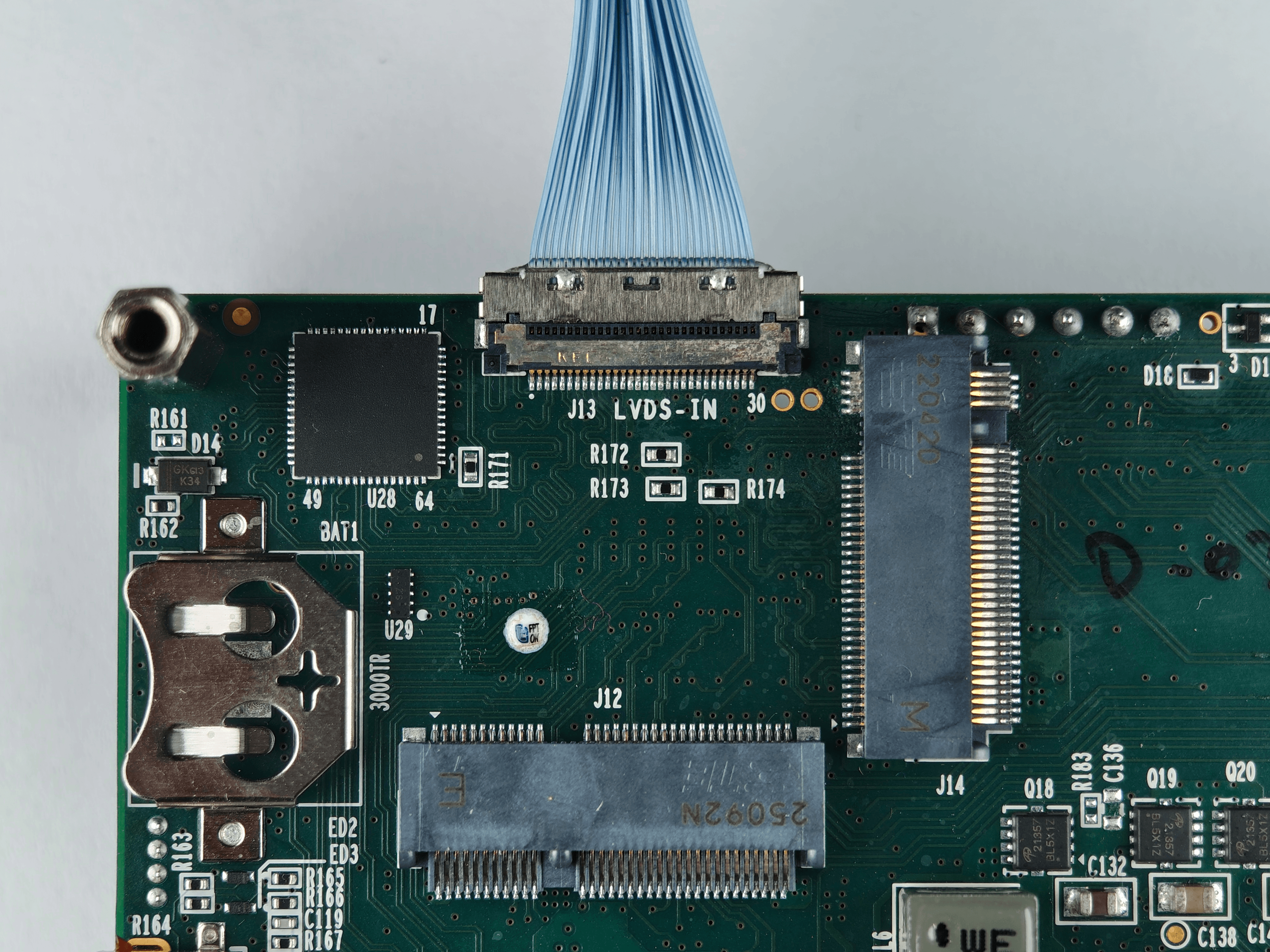

J13 LVDS connector on AstrOptix AI Carrier Board

Connected Setup

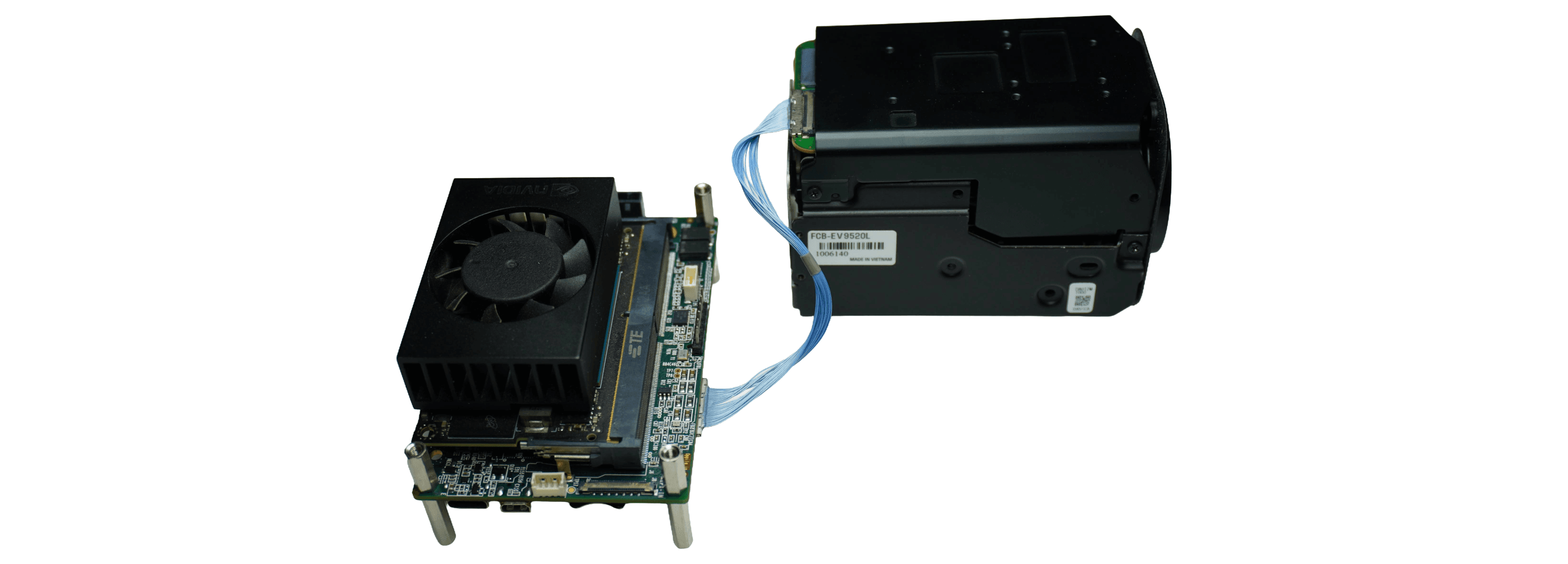

LVDS camera connected to AstrOptix AI Carrier Board

Warning

Ensure the cable is fully seated and correctly oriented before powering on. Incorrect installation may permanently damage the camera.

MIPI Camera Connection

Connect the MIPI camera to J8 (MIPI CSI-2, top side) using a Kel cable.

Board Connector (J8)

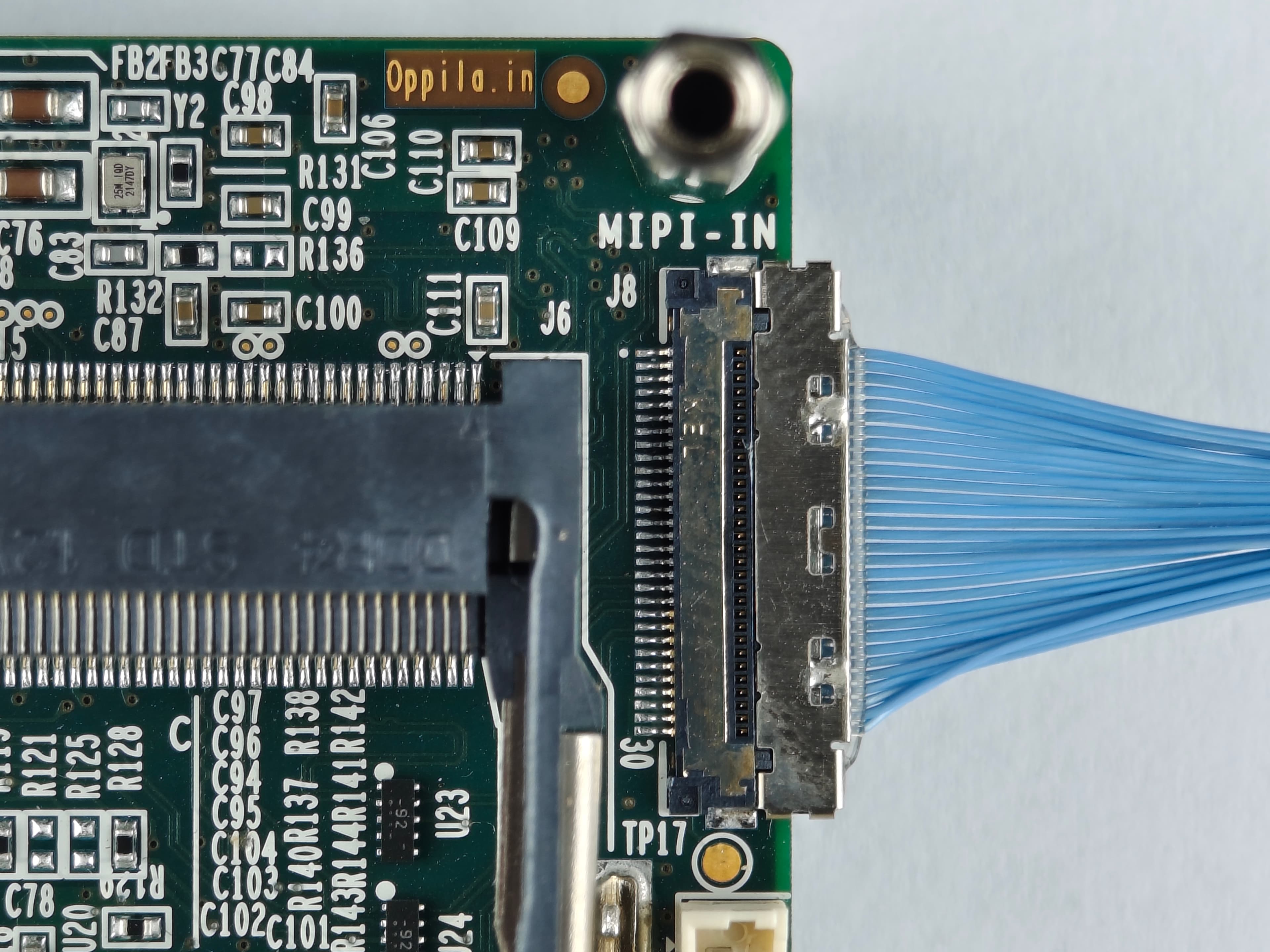

J8 MIPI CSI-2 connector on AstrOptix AI Carrier Board

Connected Setup

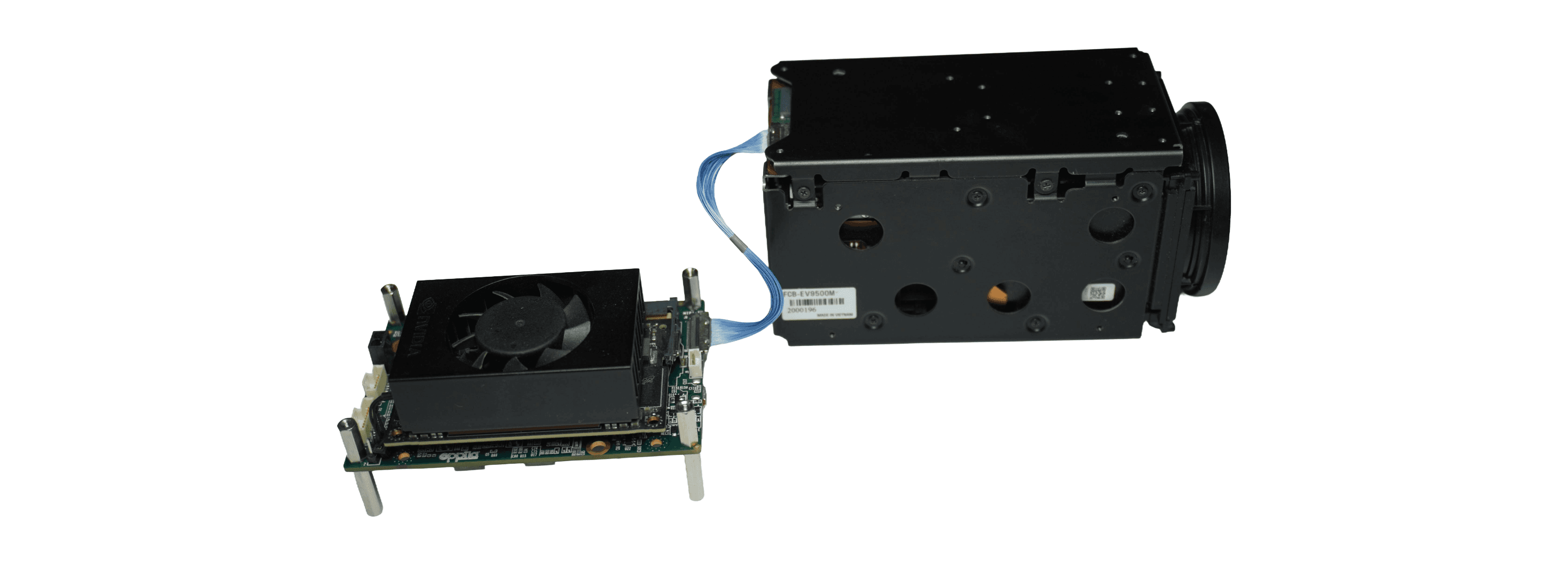

MIPI camera connected to AstrOptix AI Carrier Board

Warning

Ensure the cable is fully seated and correctly oriented before powering on. Incorrect installation may permanently damage the camera.
