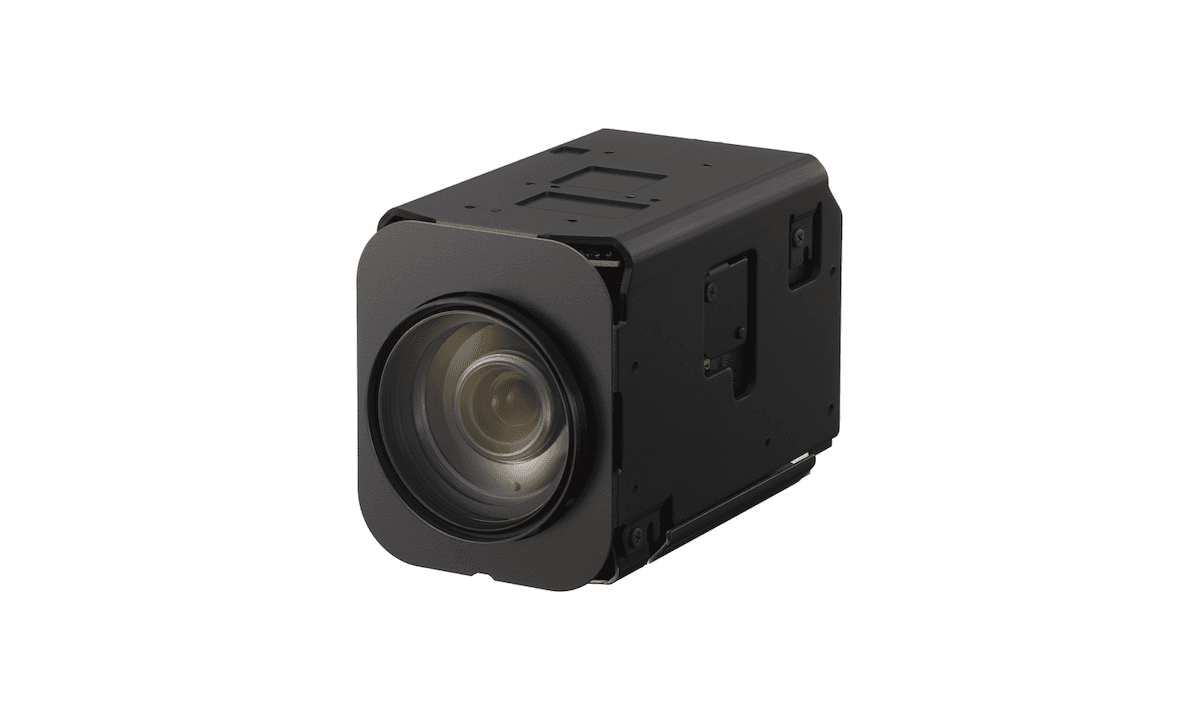

Sony FCB-EV9520L
Advanced 1/2.8-type STARVIS 2 CMOS sensor camera block with 30x Optical Zoom and high sensitivity.
FCB-EV9520L
The Sony FCB-EV9520L features a 1/2.8-type STARVIS 2 CMOS sensor and 30x optical zoom, delivering high-quality image capture with improved sensitivity and dynamic range.
- 1/2.8-type STARVIS 2 CMOS Sensor
- 30x Optical Zoom
- Full HD 1080p/60 Output
- High Sensitivity & Low Noise
- Super Image Stabilizer
Sony FCB-EV9520L – STARVIS 2 Technology
The FCB-EV9520L adopts the new 1/2.8-type STARVIS 2 CMOS sensor, offering superior sensitivity and dynamic range compared to previous models. It delivers clear and vivid images even in low-light conditions, making it suitable for a wide range of surveillance and monitoring applications.
Equipped with a 30x optical zoom lens, the camera provides high-resolution imaging capabilities from wide-angle to telephoto. Features like Super Image Stabilizer and advanced noise reduction ensure stable and sharp video output.
Key Applications:
- Security & Surveillance
- Infrastructure Inspection
- Remote Monitoring
- Intelligent Transport Systems (ITS)
- Medical Imaging
| Features | Description |
|---|---|
| Imager | 1/2.8 Type STARVIS 2 CMOS Sensor |
| Picture Elements | 2130K pixels |
| Lens | f= 4.3 mm (WIDE) to 129.0 mm (TELE), F1.6 to F4.7 |
| Zoom Movement Speed | • WIDE − TELE (59.94p/50p): 4.8 sec (Focus Tracking On), 3.0 sec (Focus Tracking Off) • WIDE − TELE (29.97p/25p): 5.7 sec (Focus Tracking On), 3.0 sec (Focus Tracking Off) • WIDE – Digital TELE (Digital 12×): 6.0 sec (59.94p mode), 6.3 sec (50p mode), 7.0 sec (29.97p mode), 7.3 sec (25p mode) |
| Focus Movement Time | ∞ to Near 0.4 sec |
| Zoom | • Optical zoom 30× • Digital Zoom 12× (max. 432× with “StableZoom”) |
| Angle of View (H) | • Distortion Compensation Off: Approx. 64.0 degrees (Wide end), approx. 2.4 degrees (Tele end) • Distortion Compensation On: Approx. 61.5 degrees (Wide end), approx. 2.3 degrees (Tele end) |
| Min. Working Distance | 10 mm (Wide end), 1200 mm (Tele end) |
| Min. Illumination | In the case of ICR-Off: • 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) • 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) • 0.0012 lx (1/4 sec, 50%, High Sensitivity mode On) • 0.012 lx (1/4 sec, 50%, High Sensitivity mode Off) In the case of ICR-On: • 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) • 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) • 0.000005 lx (1/4 sec, 50%, High Sensitivity mode On) |
| Sync System | Internal |
| Recommended Illumination | 100 lx to 100,000 lx |
| Image S/N | 50 dB (Weight On) |
| Back Light Compensation | On/Off |
| Electronic Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Gain | • Auto/Manual (0 to 50.0 dB in 28 steps), • Max. Gain Limit (10.7 to 50.0 dB in 28 steps) |
| Wide Dynamic Range Mode | On/Off |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps) |
| Defog Mode | On/Off (Low, Mid, High) |
| Aperture Control | 16 steps |
| Preset | 16 positions |
| Camera Control Interface | VISCA protocol (CMOS 3.3 V level, 5.5 V tolerant) 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Video Output | Digital (LVDS) |
| Storage Temperature/Humidity | –20 °C to +60 °C (–4 °F to +140 °F) / 20% to 95%, Absolute humidity: 36 g/m³ |
| Operating Temperature/Humidity | –5 °C to +60 °C (23 °F to 140 °F) / 20% to 80%, Absolute humidity: 36 g/m³ |
| Power Requirements | 7 V to 12 V DC |
| Power Consumption | 4.4 W (during motor operation: 5.4 W) |
| Mass | Approx. 239 g (8.4 oz.) |
| Dimensions | 50 × 60 × 89.7 mm (2 × 2 3/8 × 3 5/8 in.) (W/H/D) |
