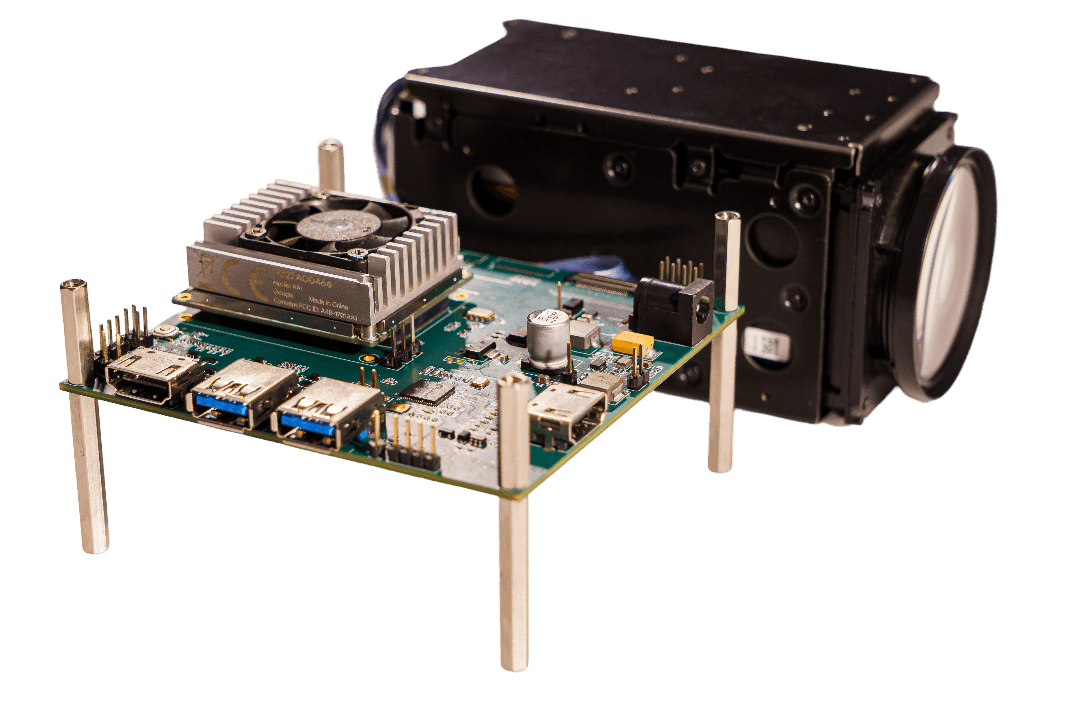

Google Coral SOM Carrier Board
Advanced carrier board optimized for the Google Coral ecosystem and edge AI inference.
Google Coral SOM Carrier Board
High-performance carrier board designed for AI edge computing, robotics, vision systems and industrial automation.
- Supports Sony FCB LVDS Cameras
- Dual USB 3.1 Ports & Gigabit Ethernet
- M.2 Key-E + Key-B Slots
- Industrial Temperature Range
- Compatible with Google Coral Camera Module
Google Coral SOM Carrier Board – AI Edge Computing
The Google Coral SOM Carrier Board is a high-performance platform designed for next-generation AI applications. It supports the Google Coral SOM, delivering powerful AI performance in a compact form factor.
Designed for industrial automation, robotics, and smart city applications, this carrier board features a robust set of I/O interfaces including Gigabit Ethernet, USB 3.1, and dedicated camera connectors. Its industrial-grade design ensures reliable operation in harsh environments.
Typical Applications Include:
- Autonomous Mobile Robots (AMR)
- Smart Surveillance & Security
- Industrial Inspection & Automation
- Edge AI Gateways
| Features | Description |
|---|---|
| Power Supply | Input Voltage Range: 12V to 24V |
| Connectivity Interfaces | USB 3.0 Ports: 2 x USB Type-A USB 2.0 Ports: 2 x USB Type-A |
| Display Connectors | HDMI 2.0a Type-A Connector: Supports up to 4K resolution at 60Hz, HDCP 2.2, and audio output HDMI 2.0a Type-A Connector (over MIPI DSI): Supports up to 1080p resolution at 60Hz |
| Camera Interfaces | MIPI-CSI Connectors: 2 x 4-lane MIPI-CSI for camera integration Compatible Cameras: FCB-EV9500M Full HD MIPI Camera, Google Coral Camera Module |
| Board Features | Infrared Receiver, Boot Select, Power LEDs, FAN On/Off Control, CPU ON/OFF Button |
| Connectivity | Coral SOM and Base Board Connector: High-performance, secure board-to-board connector. |
| Mechanical Specifications | Board Dimensions: 100 x 95 mm. |
| Environmental Specifications | Operating Temperature Range: -40°C to +85°C |
