Wired 4K OT Light Camera
30x optical zoom surgical camera — 4K UHD HDMI output with VISCA control for operation theatres.
Wired 4K OT Light Camera — Sony FCB, 30x Zoom, HDMI Output

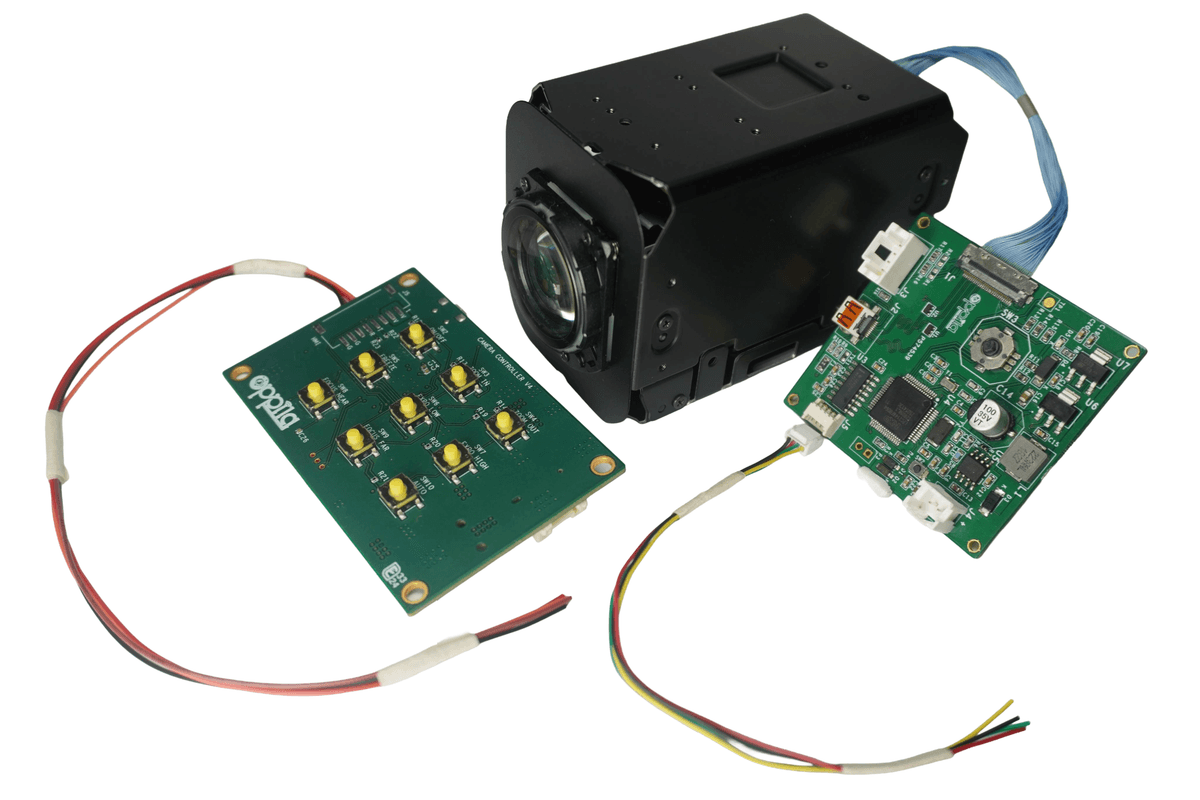

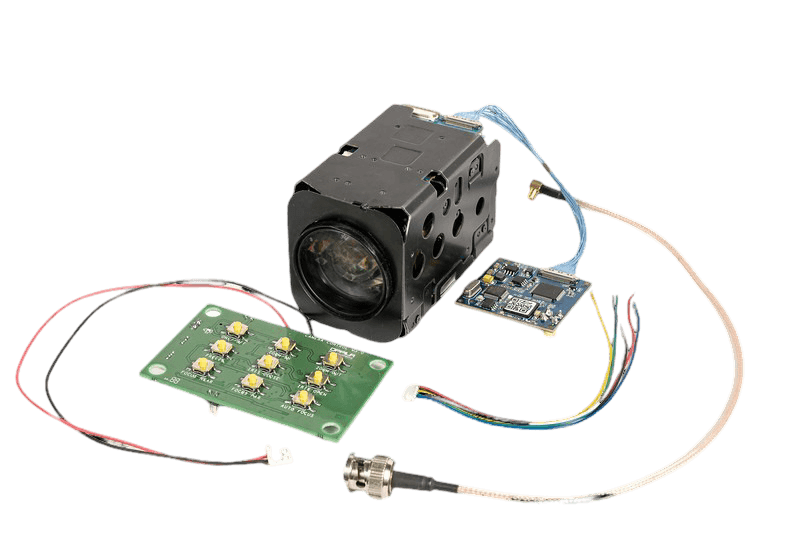

Oppila’s Wired Camera Solution for OT lights offers a high-performance setup for surgical video recording and real-time monitoring. Utilizing Sony FCB cameras with 20x or 30x optical zoom, the system delivers exceptional clarity, aided by features such as Flicker Compensation, Advanced Noise Reduction, Auto ICR, and Wide Dynamic Range.
- Supports Sony FCB-ER8530 & EV9500H
- 4K UHD (3840 x 2160) @ 30 fps via HDMI
- 20x or 30x Optical Zoom
- VISCA over UART Camera Control
- Compact 50mm x 60mm Form Factor
High-Performance Wired Imaging
Experience reliable, high-fidelity 4K video capture. Designed for critical applications like surgical visualization and medical imaging, this wired camera solution delivers visually lossless 4K @ 30fps video via direct HDMI output — ensuring zero-interference, zero-latency performance for real-time procedural documentation.
Built specifically for Operating Theatre (OT) environments, the system integrates seamlessly into surgical lighting setups, supports full VISCA camera control via keypad, touchscreen, or IR remote, and delivers consistent, uninterrupted imaging throughout every procedure.
Supported Camera Models
- Sony FCB-ER8530: 1/2.5-Type Exmor R CMOS Sensor, 20× Optical Zoom, 4K UHD output.
- Sony FCB-EW9500H: 1/1.8-Type Exmor R CMOS Sensor, 30× Optical Zoom, 4K UHD output.
Video Output
- Resolution: 4K UHD (3840 x 2160) @ 30 fps via HDMI.
- HDMI Port: Standard HDMI micro connector for video output.
- HDMI 2.0: Compliant for 4K UHD video.
Control Functionality
- Oppila's system provides full VISCA-protocol camera control over the Sony FCB camera, giving surgical teams intuitive, hands-on command of the imaging system directly from the operating theatre.
- Keypad Control: VISCA over UART via keypad controller.
- Touchscreen Interface: Intuitive touch display for real-time camera control via VISCA over UART.
- IR Remote Control: Wireless IR remote for convenient operation from anywhere in the OT.
- Full VISCA Camera Control includes:
- Zoom In / Out (optical zoom control)
- Focus Control (manual and auto)
- White Balance Presets (for accurate color rendering under OT lighting)
- Exposure Control (adapts to surgical lighting conditions)
- Picture Enhancement Settings
Power Specifications
- TX Power Input: 12V
- RX Power Input: 12V
| Specification | FCB-ER8530 |
|---|---|
| Imager | 1/2.5-Type 'Exmor R' CMOS Sensor with 8510K pixels |
| Lens | 20× Optical Zoom (4.4mm Wide – 88mm Tele; F2.0 – F3.8) |
| Zoom | Optical Zoom 20× |
| Angle of View (H) | 70.2° (Wide) to 4.1° (Tele) |
| Minimum Working Distance | 80 mm (Wide), 800 mm (Tele) |
| Minimum Illumination | 0.4 lx (1/30 sec, High Sensitivity mode On) |
| Recommended Illumination | 100 lx to 100,000 lx |
| Image S/N | 50 dB (Weight On) |
| Back Light Compensation | On/Off |
| Electronic Shutter Speed | 1/1 sec to 1/10000 sec (28 steps) |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push, Manual, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto) |
| Gain Control | Auto/Manual (0 to 48 dB in 16 steps) |
| Wide Dynamic Range Mode | On/Off |
| Noise Reduction | On/Off |
| Defog | On/Off (Low, Mid, High) |
| Aperture Control | 16 steps |
| Preset | 16 steps |
| Camera Control Interface | VISCA protocol (CMOS 3.3 V level, 5.5 V tolerant) |
| Video Output | HDMI |
| Storage/ Temperature/ Humidity | –20 °C to +60 °C (–4 °F to +140 °F) / 20% to 95% |
| Operating / Temperature / Humidity | –5 °C to +60 °C (23 °F to +140 °F) / 20% to 80% |
| Power Requirements | 7 V to 12 V DC |
| Power Consumption | 4.4 W (during motor operation: 5.4 W) |
| Mass | Approx. 239 g (8.4 oz.) |
| Dimensions | 50 × 60 × 89.7 mm (2 × 2 3/8 × 3 5/8 in.) |
