Cube Power Module
Precision voltage monitoring and redundant power distribution for the Cube Autopilot ecosystem.
Cube Power Module

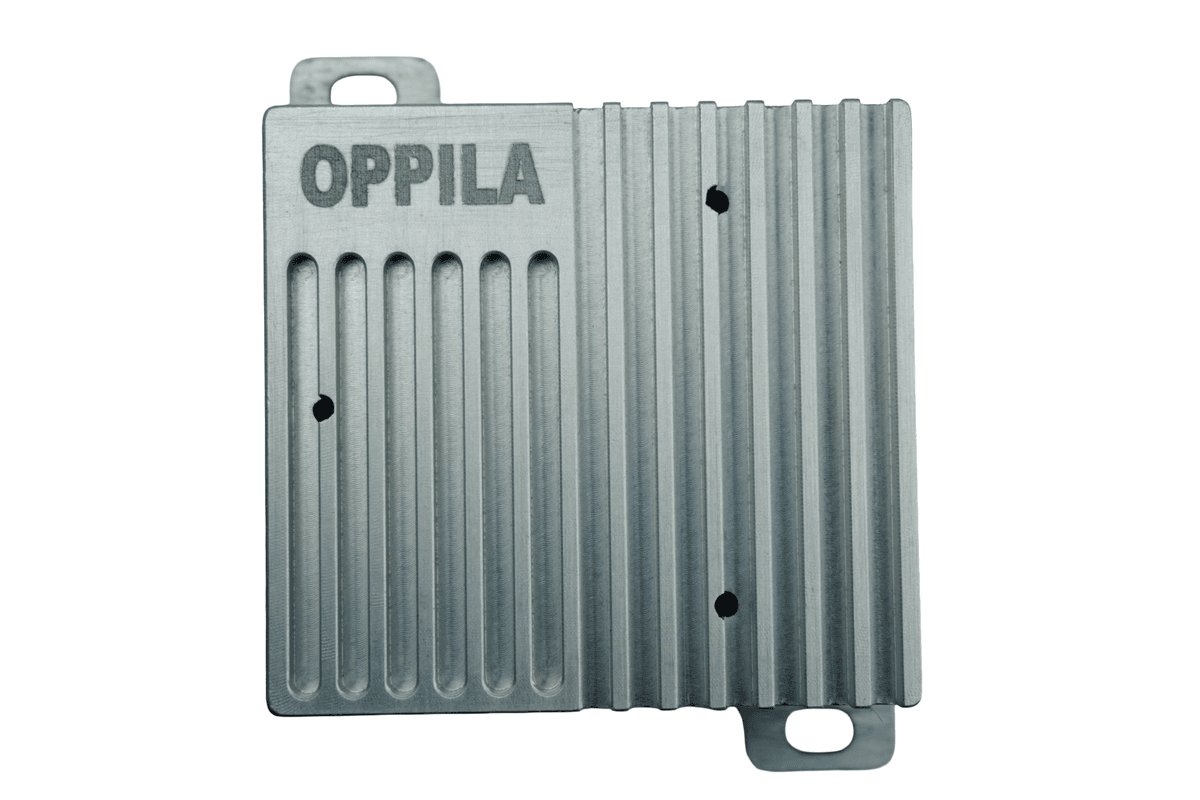

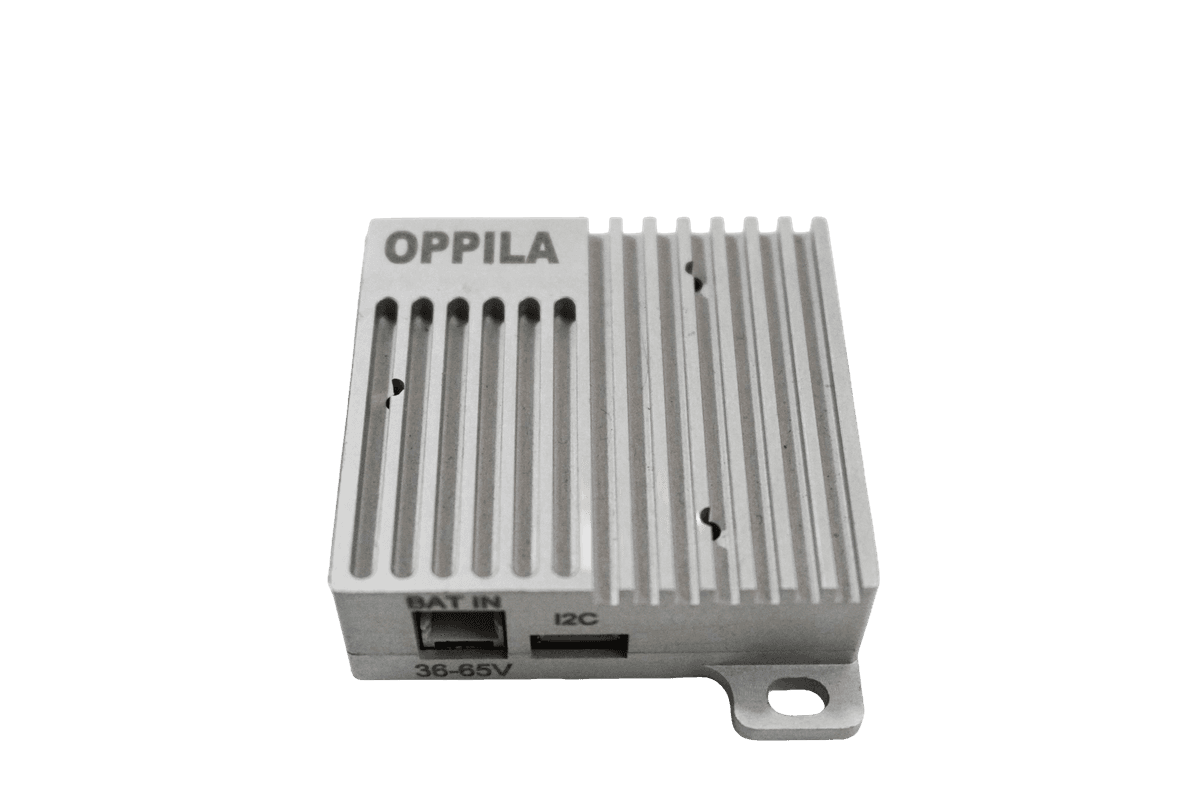

Cube Power Module is a voltage monitoring and power distribution module designed specifically for the Cube Autopilot series. It accurately measures battery voltage up to 14S LiPo (58.8 V) and communicates over I2C using a calibrated digital front-end. It also includes dual independent 5.3 V / 3 A outputs for redundant autopilot power. The module is enclosed in a rugged CNC-machined aluminum housing for mechanical stability and EMI protection.
| Features | Description |
|---|---|
| Input Voltage Range | 7 V – 58.8 V (2S – 14S LiPo) |
| Voltage Measurement Accuracy | ±0.1 V |
| I2C Address | Fixed at 0x42 |
| Output Voltage (Power1) | 5.3 V / 3 A |
| Output Voltage (Power2) | 5.3 V / 3 A |
| Enclosure | CNC-machined aluminum |
| Dimensions | 57.5 × 47.5 x 19 mm (including mounts) |
| Mounting | 2 × M3 oval slots |
| Weight | 50 grams approx. |
| Operating Temperature | −30 °C to +85 °C |
Key Features
- Wide Input Range: Supports battery input from 2S to 14S (7 V – 58.8 V).
- Accurate Telemetry: Digital voltage telemetry with ±0.1 V accuracy.
- Compatibility: Fixed I2C address (0x42) designed for Cube Autopilot compatibility.
- Redundant Power: Dual independent 5.3 V / 3A power outputs (Power1 and Power2).
- Indicators: LED indicators for input power and output rails.
- Protection: Reverse voltage protection up to 58.8 V (14S) and built-in surge protection.
- Rugged Design: CNC-machined aluminum enclosure included for durability and EMI protection.
