Image Bringup Overview

This guide covers the complete bringup process for the LVDS–MIPI CSI-2 bridge board using a pre-built L4T Oppila image. Unlike the manual driver integration workflow, this path uses a ready-to-flash image that already includes the required driver, device tree, and all configurations.

Note

The setup procedure applies to all supported LVDS cameras — Sony FCB-EV9500L, Tamron MP3010M-EV, and KT&C ATC-HZ5540T-LP.

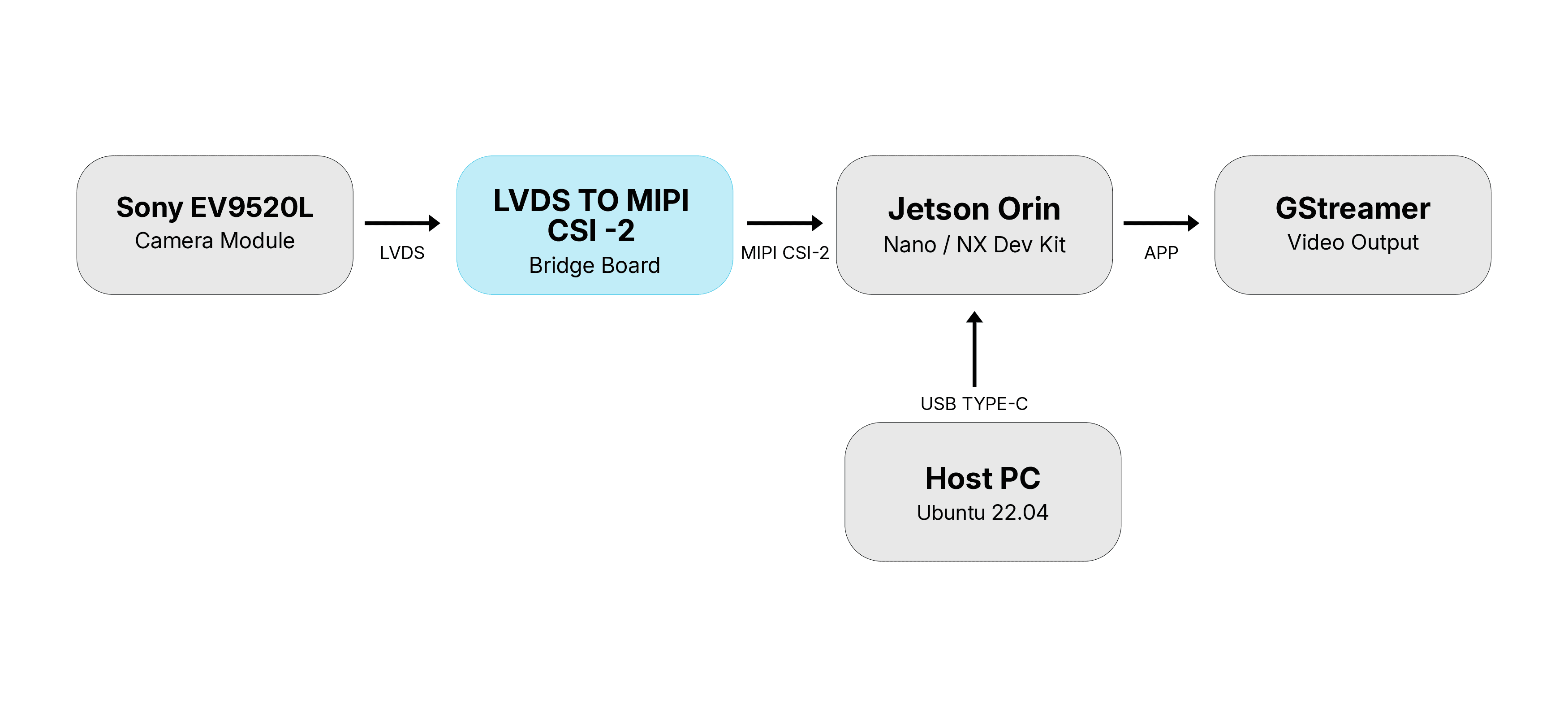

System Architecture

Host PC

Host PC running Ubuntu 22.04 connects to the Jetson Orin Super Developer Kit via USB Type-C for flashing.

LVDS Camera Block

LVDS Camera Block (Sony FCB-EV9520L) connected to the Bridge board.

Protocol conversion

Bridge board converts LVDS to MIPI CSI-2 and streams it to the Jetson Orin.

GStreamer pipeline

Jetson exposes the camera as a V4L2 device. GStreamer reads the stream and renders the video output.

Prerequisites

Before starting, ensure the following are ready:

Host

Host PC

Ubuntu 20.04 or 22.04

Hardware

NVIDIA Jetson Orin Nano / NX module

With Jetson Orin Super Developer Kit carrier board

LVDS–MIPI CSI-2 Bridge Board

With Sony EV9520L LVDS camera

USB Type-C cable

For flashing — host PC to Developer Kit

NVMe SSD

SSD for onboard storage on the carrier board

Power adapter

Compatible with Developer Kit

Jumper wireRecovery mode

Short FC_REC to GND on the carrier board before powering on

Network Connection

Active network connection for the Developer Kit

Required Files

Note

These files are not publicly available. Contact Oppila Support for the files.

OPPILA_ORIN_L4T_36.5.0_LM.tar.bz2

Pre-built Jetson OS Image archive.
