Host Setup & Flashing

This phase prepares the host PC environment, extracts the pre-built L4T Oppila image, and flashes it to the Jetson Orin Super Developer Kit via recovery mode.

Install Dependencies

Note

Skip step 1 if you have already installed the dependencies on the host machine.

Step 1: Update Package Lists and Install Required Packages

sudo apt update
sudo apt install -y qemu-user-static sshpass binutils abootimg libxml2-utils nfs-kernel-server u-boot-tools android-tools-fastboot python3-pip lz4
pip3 install -U pip
Prepare Working Directory

Step 2: Download Required Files

Download OPPILA_ORIN_L4T_36.5.0_LM.tar.bz2 provided by Oppila Support.

Step 3: Create a Working Directory

mkdir ~/OPPILA_ORIN_L4T_36.5.0_LM

Step 4: Move the Downloaded Image

mv ~/Downloads/OPPILA_ORIN_L4T_36.5.0_LM.tar.bz2 ~/OPPILA_ORIN_L4T_36.5.0_LM/

Step 5: Navigate to the New Directory

cd ~/OPPILA_ORIN_L4T_36.5.0_LM/
Extract the OS Image

Step 6: Extract the Archive

Run the following command. Extraction may take several minutes:

sudo tar -xvJf OPPILA_ORIN_L4T_36.5.0_LM.tar.bz2

Once complete, a directory named Linux_for_Tegra will be created inside ~/OPPILA_ORIN_L4T_36.5.0_LM/.

Step 7: Navigate to the Extracted Directory

cd Linux_for_Tegra/
Set Recovery Mode

Step 8: Recovery Mode Setup

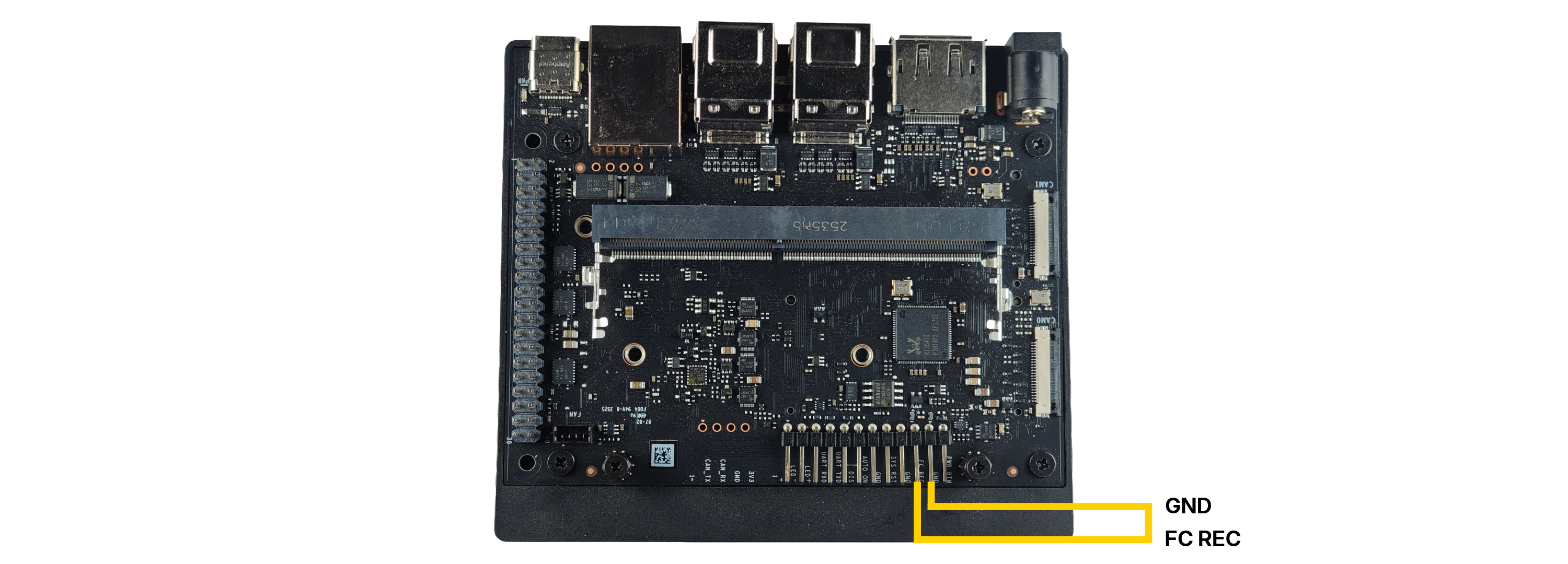

Place a jumper between FC REC and GND pins on the carrier board as shown in the below image:

recovery mode jumper — FC REC and GND pins

After placing the jumper:

  • Connect Jetson Orin Nano/NX module on Developer Kit
  • Power on the Developer kit using the provided power adapter
  • Connect a USB Type-C cable from the Developer kit to the host PC
Verify Device Detection

Step 9: Check Jetson Orin Nano/NX is detected in Recovery Mode on Host PC terminal

lsusb

Look for an entry such as: NVIDIA Corp. APX

Note

If the device is not visible, try a different USB cable or ensure jumper is placed in FC REC and GND pins.

Flashing Image

Step 10: Execute the below command to flash image from Host PC to Jetson Orin Nano/Nx

sudo ./nvsdkmanager_flash.sh --storage nvme0n1p1

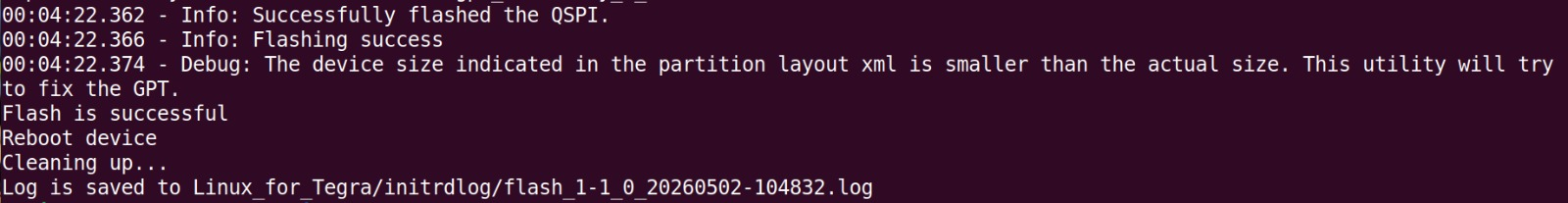

A successful flash is shown in the image below:

Successful flash

Note

The flashing may take around 10-15 minutes.

Post-Flash Setup

Once flashing is complete:

1
Power Off

Power off the Developer Kit and disconnect the power cable.

2
Recovery Mode Remove

Remove the jumper from the FC REC and GND recovery mode pins on the Developer Kit.

3
Connect Camera Module

Connect the camera module via LVDS–MIPI CSI-2 Bridge Board to Developer Kit as per Full Connection setup.

4
Power sequenceMandatory

Power on the LVDS-MIPI Bridge Board first and then power on the Developer Kit or both at the same time.

OEM Configuration Setup

On first boot, you will be guided through the following steps:

  • Language Selection — Choose your preferred language.
  • License Agreement — Accept the terms to continue.
  • Networking — Configure Ethernet or Wi-Fi if needed.
  • User Account — Create your NVIDIA account credentials.
  • Password — Set a secure password for your account.
  • Review & Finish — Confirm your settings and complete setup.

Once done, the device will boot into the NVIDIA Desktop Environment.
