Board Specification
Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 12 V DC regulated (via 2-pin connector) |
| Input Current | 1.5 A typical (up to 2.0 A max depending on camera load) |
| USB Interface | USB 3.0 Type-C, SuperSpeed (5 Gbps) |
| Video Streaming | UVC 1.1 (USB Video Class) — Plug & Play |
| Supported Video Formats | Up to Full HD (1080p @ 60 fps) — camera dependent |
| Camera Interface | LVDS interface compatible with Sony FCB-EV9500L / EV9520L |
| Control Interface | VISCA over USB CDC (Virtual COM) & UART TTL |
| Control Mode Selection | Via DIP switch (USB / TTL) |
| Indicators | Power LED (ON) / Status LED (Stream Activity) |
| Connectors | USB Type-C (host), 2-pin DC input, 30-pin micro-coax (camera), 3-pin UART header |
| Dimensions (L × W) | 50 mm × 60 mm |
| Weight | 21 g |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −20 °C to +60 °C |
| Compliance | USB 3.0 Specification, UVC 1.1, RoHS Compliant |

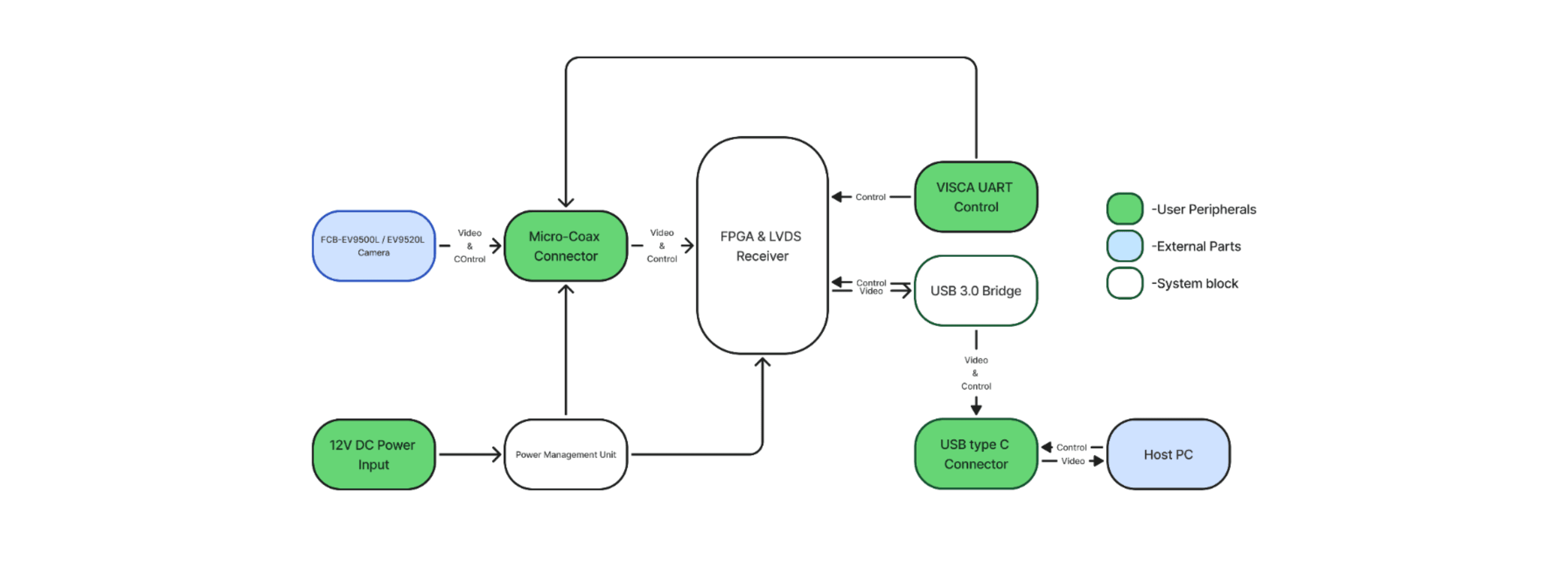

Block Diagram

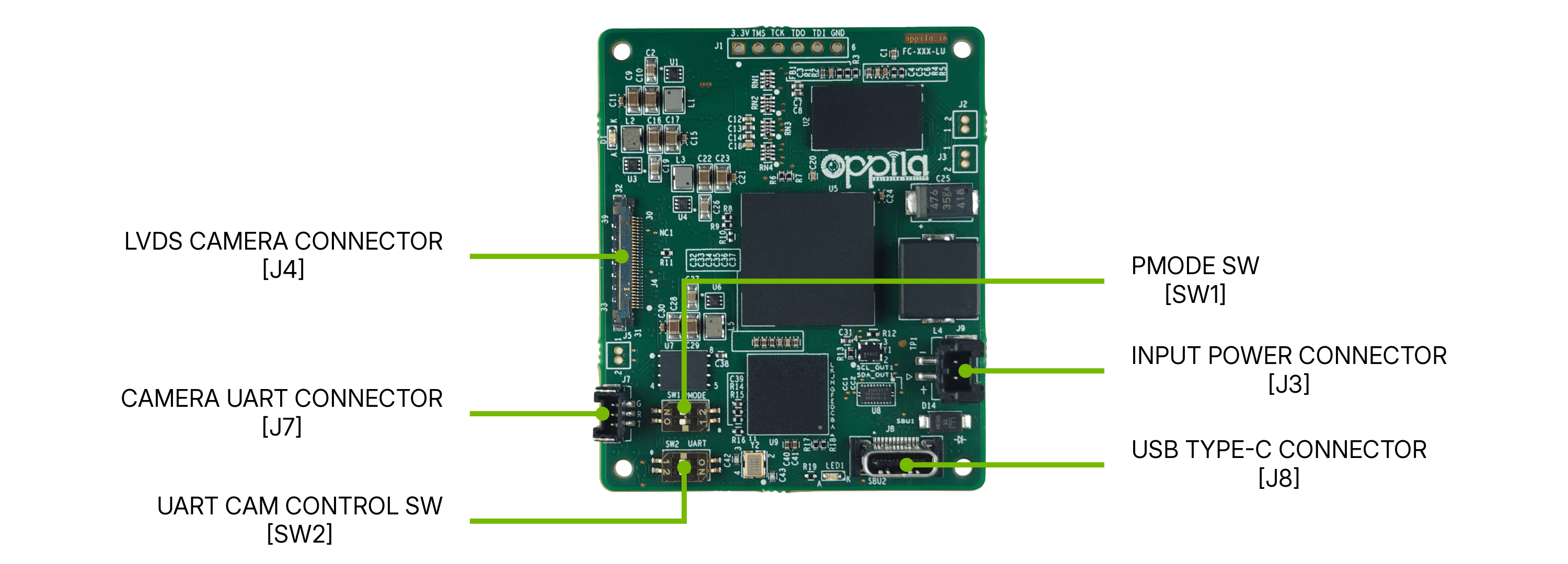

Connector Summary & Location
| Designator | Description |
|---|---|
| J4 | LVDS CAMERA CONNECTOR |
| J7 | UART CAMERA CONNECTOR |
| J9 | INPUT POWER CONNECTOR |
| J8 | USB TYPE-C CONNECTOR |
| SW1 | PMODE SWITCH |
| SW2 | UART CAMERA CONTROL SWITCH |

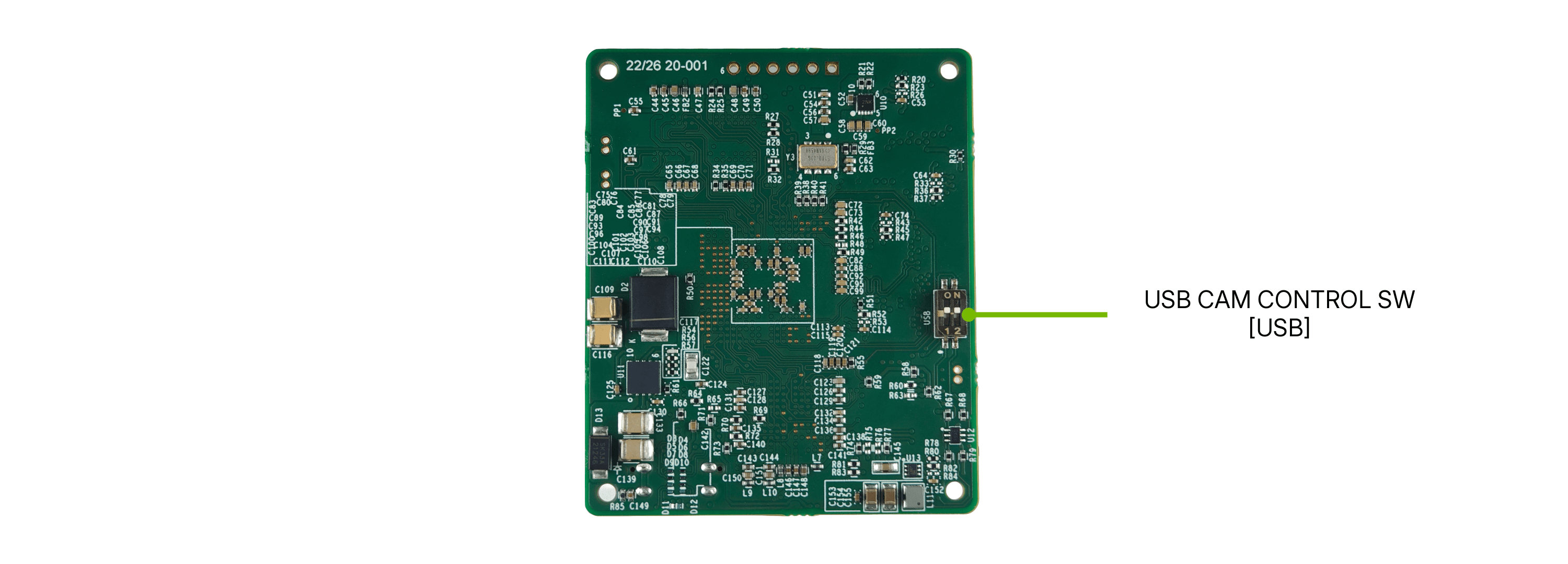

| USB | USB CAMERA CONTROL SWITCH |
