Connector Details

Power Connector [J3]

Function	Description
Location	J3
Interface	Main Power Input [12 – 30V]
Type	4-pin, 2MM Molex Micro Lock Plus
Mating Cable	Custom Cable – Contact

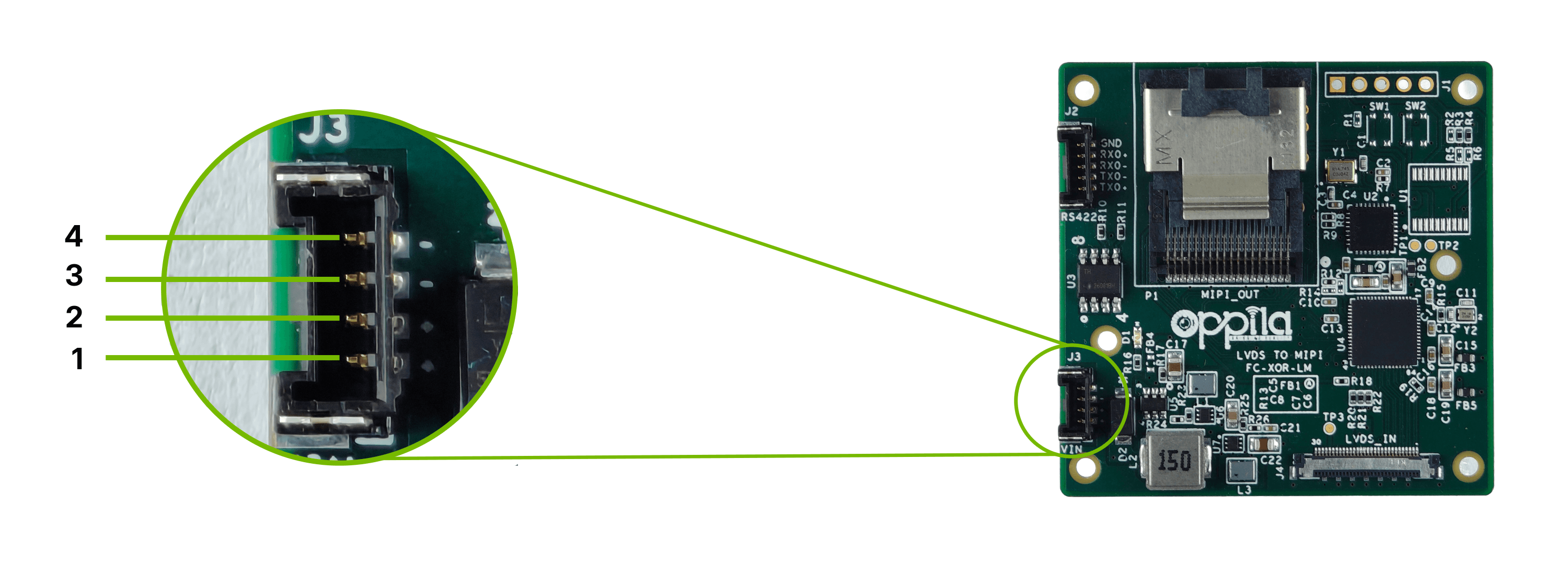

Power Connector J3

Pinout

Pin	Signal
Pin 1	VIN 12V +
Pin 2	VIN 12V +
Pin 3	GND
Pin 4	GND

RS-422 Connector [J2]

Function	Description
Location	J2
Interface	RS-422 serial (VISCA camera control)
Type	5-pin
Mating Cable	Custom Cable – Contact

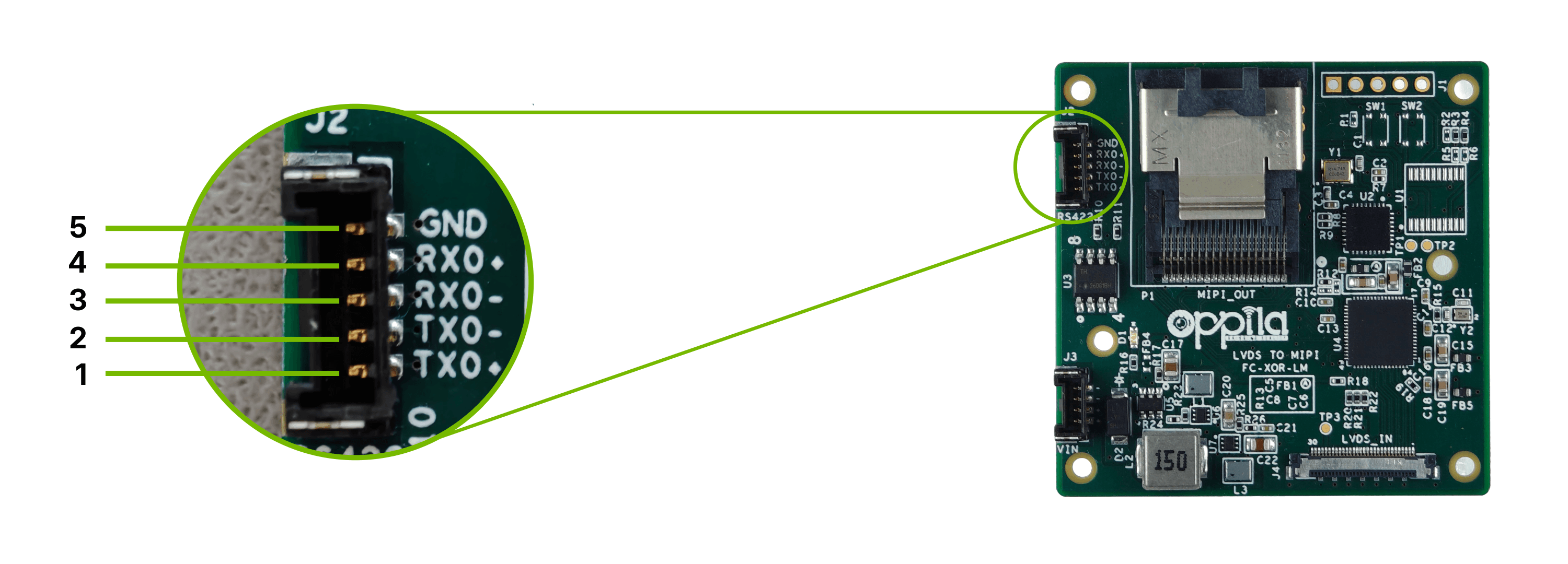

RS-422 Connector J2

Pinout

Pin	Signal
Pin 1	TXO+
Pin 2	TXO-
Pin 3	RXO-
Pin 4	RXO+
Pin 5	GND

LVDS Input Connector [J4]

Function	Description
Location	J4
Interface	LVDS
Type	30 Pin Micro Coax
Board Connector	KEL Connector
Lanes	4-lane

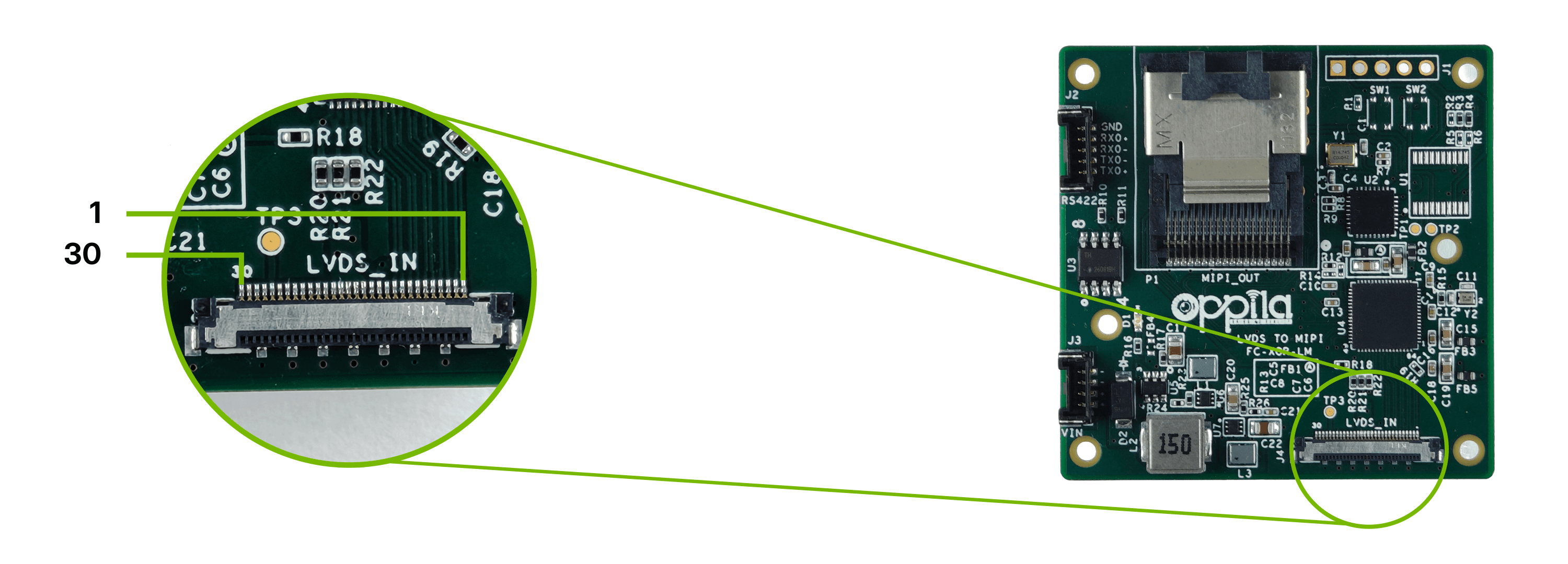

LVDS Input Connector

Pinout

Pin	Signal	Pin	Signal
1	LVDS_D3_P	16	DC_IN
2	LVDS_D3_N	17	DC_IN
3	LVDS_CLK_P	18	DC_IN
4	LVDS_CLK_N	19	GND
5	LVDS_D2_P	20	GND
6	LVDS_D2_N	21	NC
7	LVDS_D1_P	22	NC
8	LVDS_D1_N	23	NC
9	LVDS_D0_P	24	NC
10	LVDS_D0_N	25	NC
11	GND	26	RESET [TP1]
12	CAM_TXD	27	NC
13	CAM_RXD	28	NC
14	DC_IN	29	NC
15	DC_IN	30	NC

MIPI CSI-2 Output Connector [P1]

Function	Description
Location	P1
Interface	MIPI CSI-2

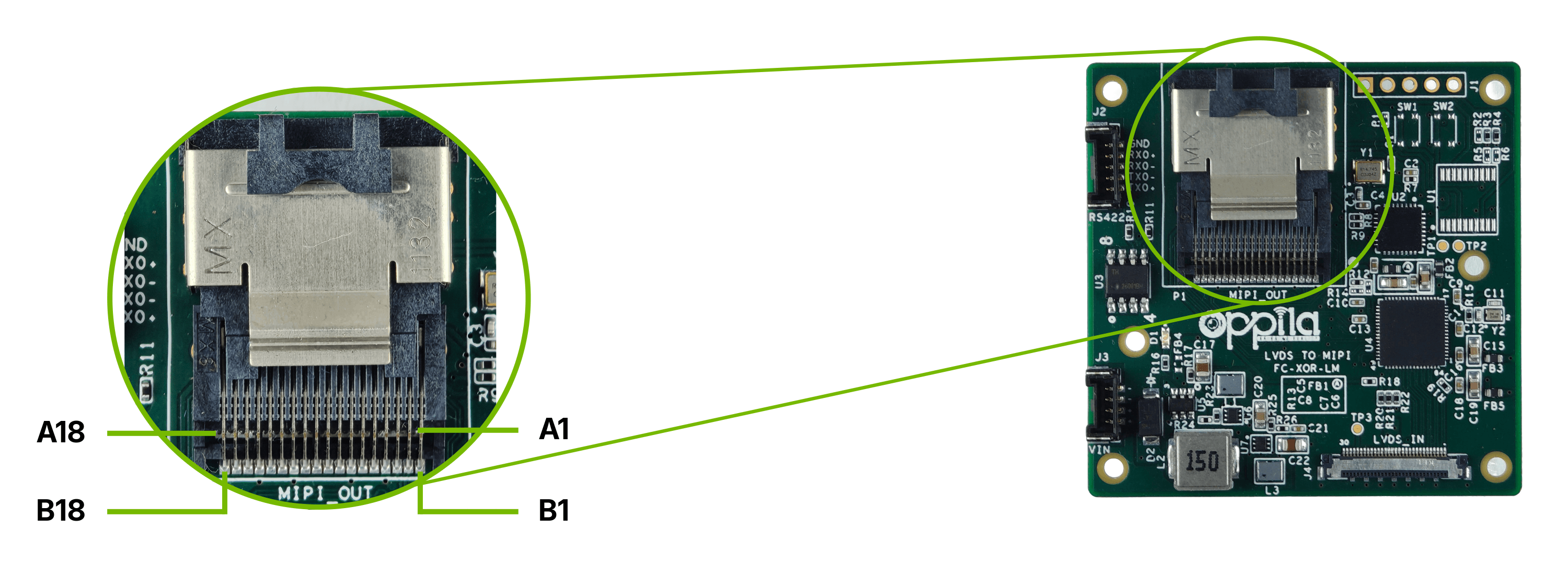

MIPI CSI-2 Output Connector

Pinout

SIDE A

Pin	Signal	Pin	Signal
A1	GND	A10	CSI1_I2C_SDA
A2	CSI1_DN0	A11	CSI1_I2C_SCL
A3	CSI1_DP0	A12	GND
A4	GND	A13	CSI1_DN2
A5	CSI1_DN1	A14	CSI1_DP2
A6	CSI1_DP1	A15	GND
A7	GND	A16	CSI1_DN3
A8	NC	A17	CSI1_DP3
A9	CSI_nRST	A18	GND

SIDE B

Pin	Signal	Pin	Signal
B1	GND	B10	NC
B2	CSI1_CKN	B11	NC
B3	CSI1_CKP	B12	GND
B4	GND	B13	NC
B5	NC	B14	NC
B6	NC	B15	GND
B7	GND	B16	NC
B8	NC	B17	NC
B9	NC	B18	GND
