Connector Details
Connector Inventory
| Designator | Silkscreen | Function |
|---|---|---|
J2 | LVDS_IN | LVDS camera input, 30-pin micro-coax |
J3 | PWR_IN | Main DC power input, 12–24 V |
J4 | G / RX / TX | External UART camera control, 3.3 V CMOS TTL |
J5 | GMSL3_OUT | GMSL3 output, Rosenberger FAKRA Z-coded |

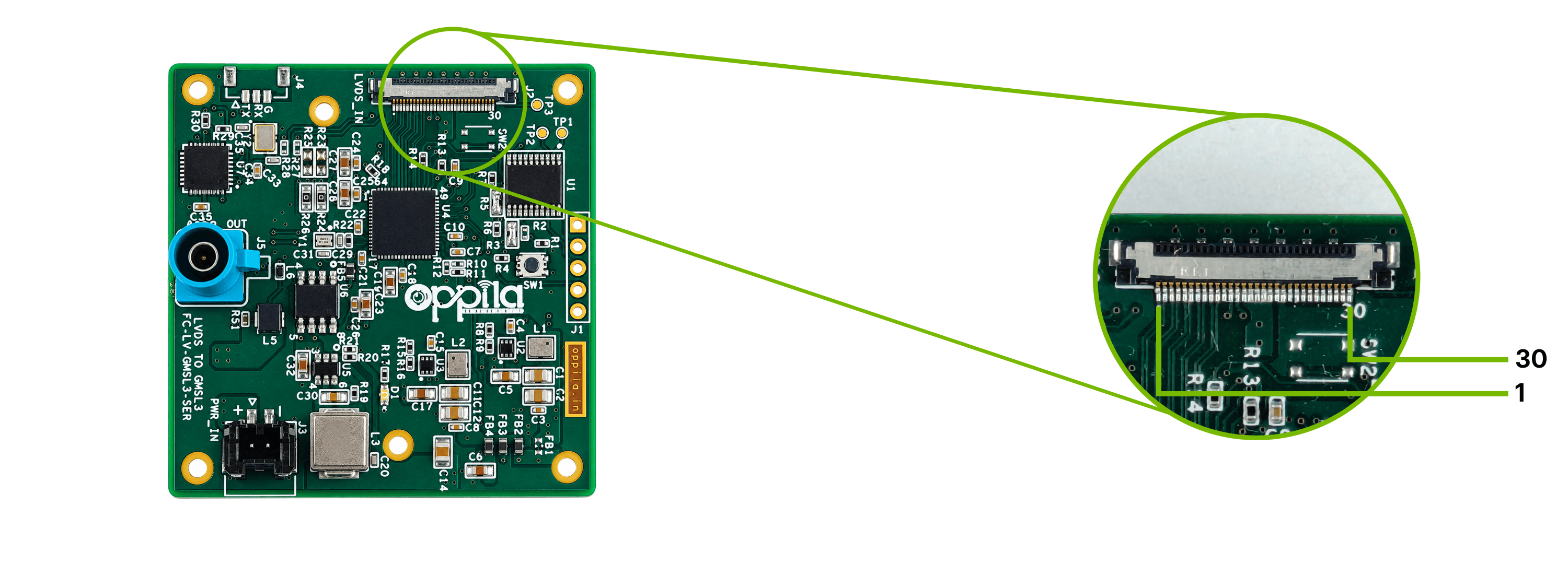

LVDS Camera Connector [J2]
| Function | Description |
|---|---|
| Location | J2 — LVDS_IN |
| Interface | LVDS |
| Type | 30 Pin Micro Coax |
| Board Connector | KEL Connector |
| Lanes | 4-lane |
Pinout
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | LVDS_D3_P | 16 | DC_IN |
| 2 | LVDS_D3_N | 17 | DC_IN |
| 3 | LVDS_CLK_P | 18 | DC_IN |
| 4 | LVDS_CLK_N | 19 | GND |
| 5 | LVDS_D2_P | 20 | GND |
| 6 | LVDS_D2_N | 21 | NC |
| 7 | LVDS_D1_P | 22 | NC |
| 8 | LVDS_D1_N | 23 | NC |
| 9 | LVDS_D0_P | 24 | NC |
| 10 | LVDS_D0_N | 25 | NC |
| 11 | GND | 26 | RESET |
| 12 | CAM_TXD | 27 | NC |
| 13 | CAM_RXD | 28 | NC |
| 14 | DC_IN | 29 | NC |
| 15 | DC_IN | 30 | NC |

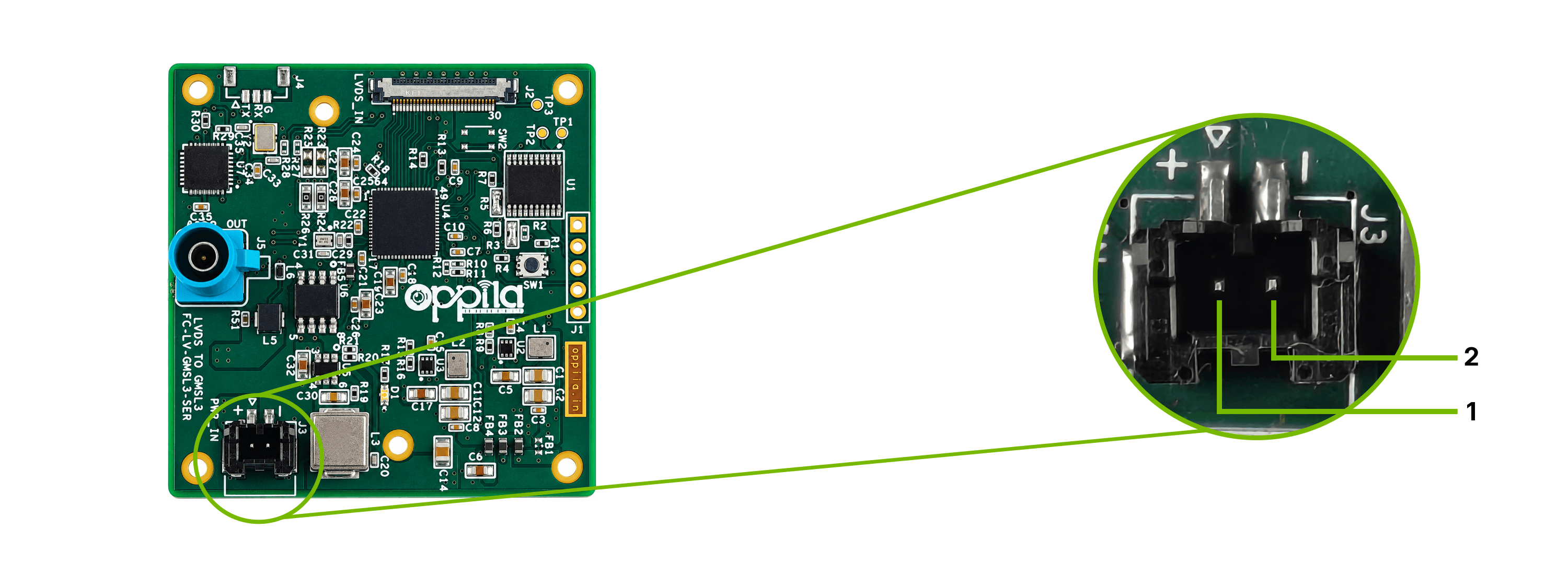

Power Connector [J3]
| Function | Description |
|---|---|
| Location | J3 — PWR_IN |
| Interface | Main Power Input [12–24 V] |
| Type | 2-pin Molex Micro-Lock Plus |
| Board Connector | 505578-0271 |
| Mating | Custom cable – Contact |
Pinout
| Pin | Signal |
|---|---|
| Pin 1 | +VIN |
| Pin 2 | GND |
External UART Connector [J4]
| Function | Description |
|---|---|
| Location | J4 |
| Interface | UART TTL |
| Type | 3-pin Molex |
| Board Connector | 5055680381 |
| Mating Connector | 5055650301 |
Pinout
| Pin | Signal |
|---|---|
| 1 | TXD (3.3 V CMOS) |
| 2 | RXD (3.3 V CMOS) |
| 3 | GND |

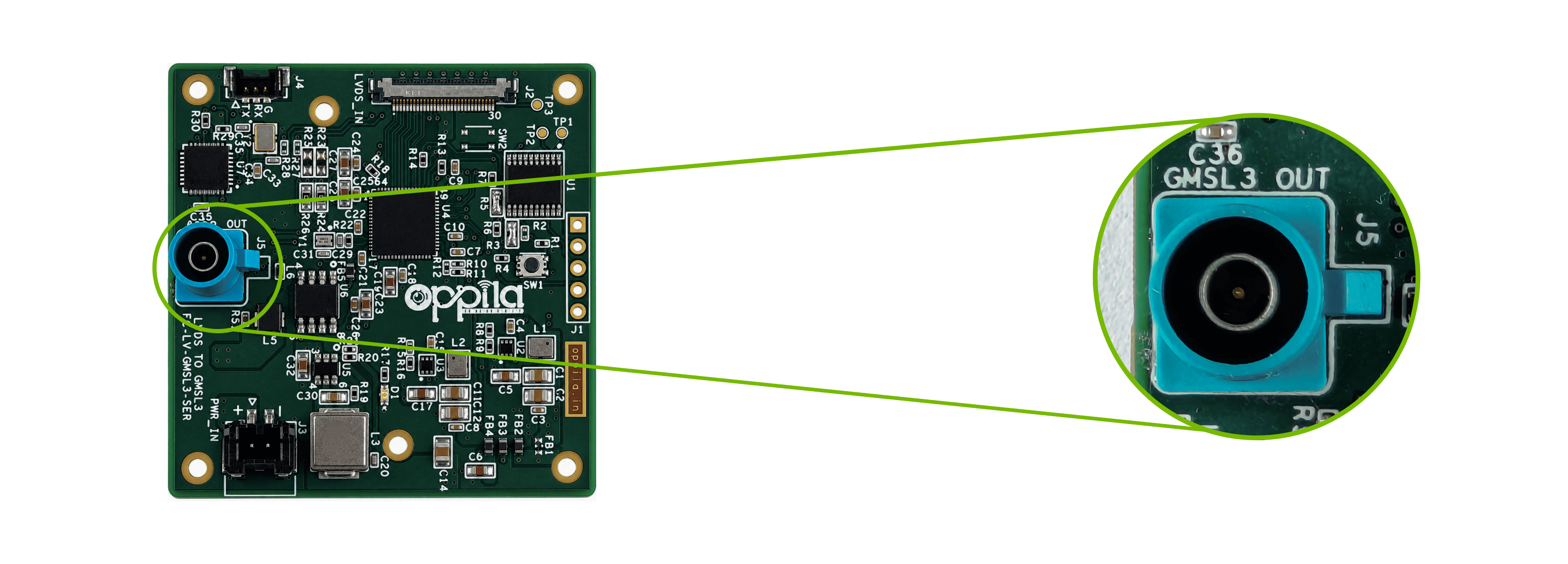

GMSL3 Camera Connector [J5]
| Function | Description |
|---|---|
| Location | J5 — GMSL3_OUT |
| Interface | |
| Type | |
| Mating |
Pinout
| Pin | Signal |
|---|---|
| Pin 1 | GMSL3 OUT |
