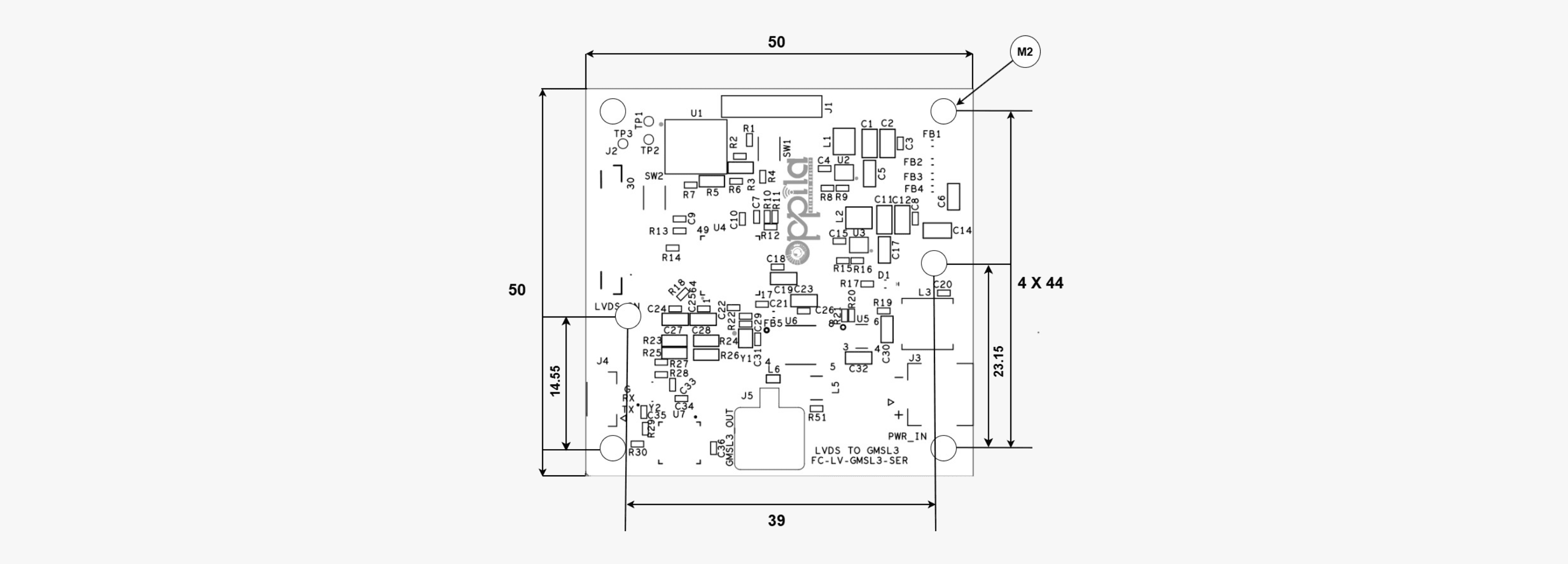

Dimensions
Note
All dimensions are in millimeters (mm)
| Dimension | Value |
|---|---|
| PCB Length | 50 mm |
| PCB Width | 50 mm |
| Mounting Holes | 4 × M2 |
| Weight | 14.9 g |
3D Model
Drag to rotate · scroll to zoom · right-drag to pan
Download: LVDS to GMSL3 Serializer Board FC-LV-GMSL3-SER.stp (STEP)
