Board Specification
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 12–30 V DC regulated input via Molex 2-pin connector |
| Camera Interface | 30-pin single-mode LVDS micro-coaxial interface (USL00-30L-A) |
| GMSL3 Interface | Rosenberger FAKRA Z-coded coaxial connector |
| Supported Video Format | Up to Full HD (1920 × 1080) at 60 fps (camera-dependent) |
| Camera Control | Dual-Option VISCA Camera Control Interface: • Host Control: VISCA camera-control communication over the GMSL3 link. • External Control: Direct camera control via onboard UART header. Only one control interface can be used at a time. |
| Indicators | Green power LED |
| Board Dimensions and weight | 50 × 50 mm and 14.9 g |
| Recommended Supply | 12 V DC, 2 A regulated |
| Operating Temperature | −20 °C to +85 °C |
| Compliance | RoHS compliant |

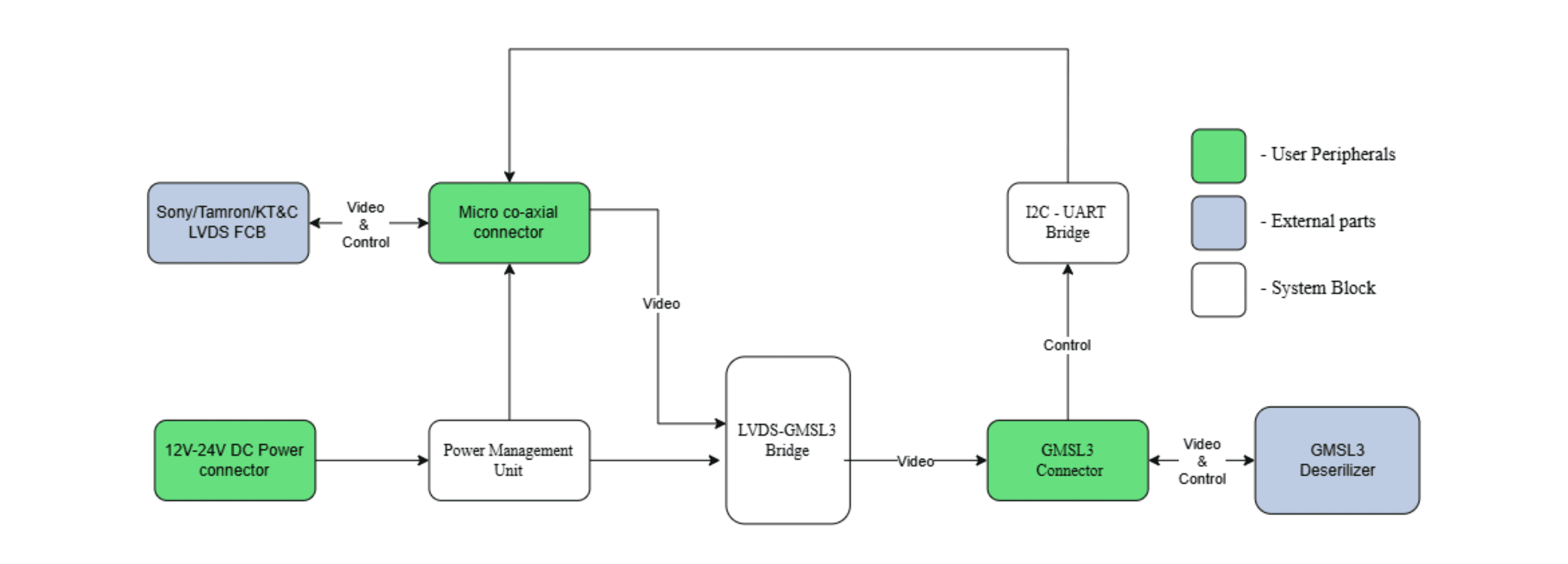

Block Diagram

Connector Summary & Location

| Designator | Description |
|---|---|
J2 | LVDS camera connector (LVDS_IN) |
J3 | Power input (PWR_IN) |
J4 | External UART connector |
J5 | GMSL3 output (GMSL3_OUT) |
