Connector Details
Power Connector [J4]
| Function | Description |
|---|---|
| Location | J4 |
| Interface | Main Power Input [12 – 30V] |
| Type | 2-pin, 2MM Molex Micro Lock Plus |
| Board Connector | 5055750271 |
| Mating Cable | Custom Cable – Contact |
Pinout
| Pin | Signal |
|---|---|
| Pin 1 | +VIN (12 V DC) |
| Pin 2 | GND |
Camera Switch [SW3]
Pinout
| SW3.1 | SW3.2 | Camera |
|---|---|---|
| ON | ON | FCB-ER8530 |
| ON | OFF | FCB-ER9500 / FCB-EW9500H |
HDMI Input Connector [J2]
| Function | Description |
|---|---|
| Location | J2 |
| Interface | HDMI |
| Type | 30 Pin Micro Coax |
| Board Connector | KEL Connector |
| Mating Cable | Custom Cable – Contact |
| Lanes | 4-lane |
Part Number
KEL Connector : USL00-30L-C KEL Cable : USL20-30SS-020.0-C
Pinout
BRIDGE BOARD SIDE
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | GND | 16 | NC |
| 2 | HDMI_CLK_N | 17 | HPD / NC |
| 3 | HDMI_CLK_P | 18 | HDMI_5V / NC |
| 4 | GND | 19 | GND / NC |
| 5 | HDMI_D0_N | 20 | GND / NC |
| 6 | HDMI_D0_P | 21 | NC |
| 7 | GND | 22 | NC |
| 8 | HDMI_D1_N | 23 | GND / NC |
| 9 | HDMI_D1_P | 24 | CAM_RXD |
| 10 | GND | 25 | CAM_TXD |
| 11 | HDMI_D2_N | 26 | NC |
| 12 | HDMI_D2_P | 27 | DC_IN [7V – 12V] |
| 13 | GND | 28 | DC_IN [7V – 12V] |
| 14 | NC | 29 | DC_IN [7V – 12V] |
| 15 | NC | 30 | DC_IN [7V – 12V] |
CAMERA SIDE
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | GND | 16 | NC |
| 2 | HDMI_CLK_N | 17 | HPD / NC |
| 3 | HDMI_CLK_P | 18 | HDMI_5V / NC |
| 4 | GND | 19 | GND / NC |
| 5 | HDMI_D0_N | 20 | GND / NC |
| 6 | HDMI_D0_P | 21 | NC |
| 7 | GND | 22 | NC |
| 8 | HDMI_D1_N | 23 | GND / NC |
| 9 | HDMI_D1_P | 24 | CAM_RXD |
| 10 | GND | 25 | CAM_TXD |
| 11 | HDMI_D2_N | 26 | NC |
| 12 | HDMI_D2_P | 27 | DC_IN [7V – 12V] |
| 13 | GND | 28 | DC_IN [7V – 12V] |
| 14 | NC | 29 | DC_IN [7V – 12V] |
| 15 | NC | 30 | DC_IN [7V – 12V] |

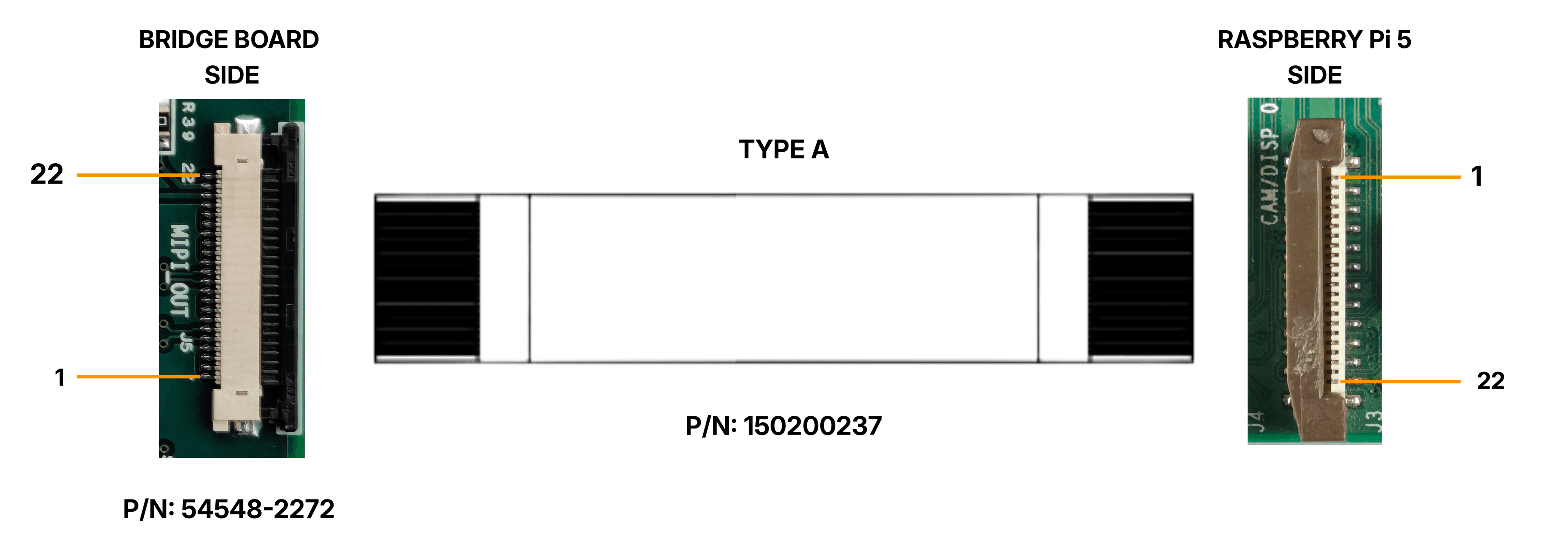

MIPI CSI-2 Output Connector [J5]
| Function | Description |
|---|---|
| Location | J5 |
| Interface | MIPI CSI-2 |
| Type | 22-pin FFC Connector |
| Board Connector | 54548-2272 |
| Mating Cable | Custom Cable – Contact |
| Lanes | 4-lane |
Part Number
FPC Connector : 54548-2272 FPC Cable : 150200237
Pinout
BRIDGE BOARD SIDE
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | GND | 16 | GND |
| 2 | CSI2_D0_N | 17 | NC |
| 3 | CSI2_D0_P | 18 | NC |
| 4 | GND | 19 | GND |
| 5 | CSI2_D1_N | 20 | I2C_CLK |
| 6 | CSI2_D1_P | 21 | I2C_DATA |
| 7 | GND | 22 | NC |
| 8 | CSI2_CLK_N | ||
| 9 | CSI2_CLK_P | ||
| 10 | GND | ||
| 11 | CSI2_D2_N | ||
| 12 | CSI2_D2_P | ||
| 13 | GND | ||
| 14 | CSI2_D3_N | ||
| 15 | CSI2_D3_P |
Raspberry Pi 5 [CAM0]
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | 16 | ||
| 2 | 17 | ||
| 3 | 18 | ||
| 4 | 19 | ||
| 5 | 20 | ||
| 6 | 21 | ||
| 7 | 22 | ||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 |
