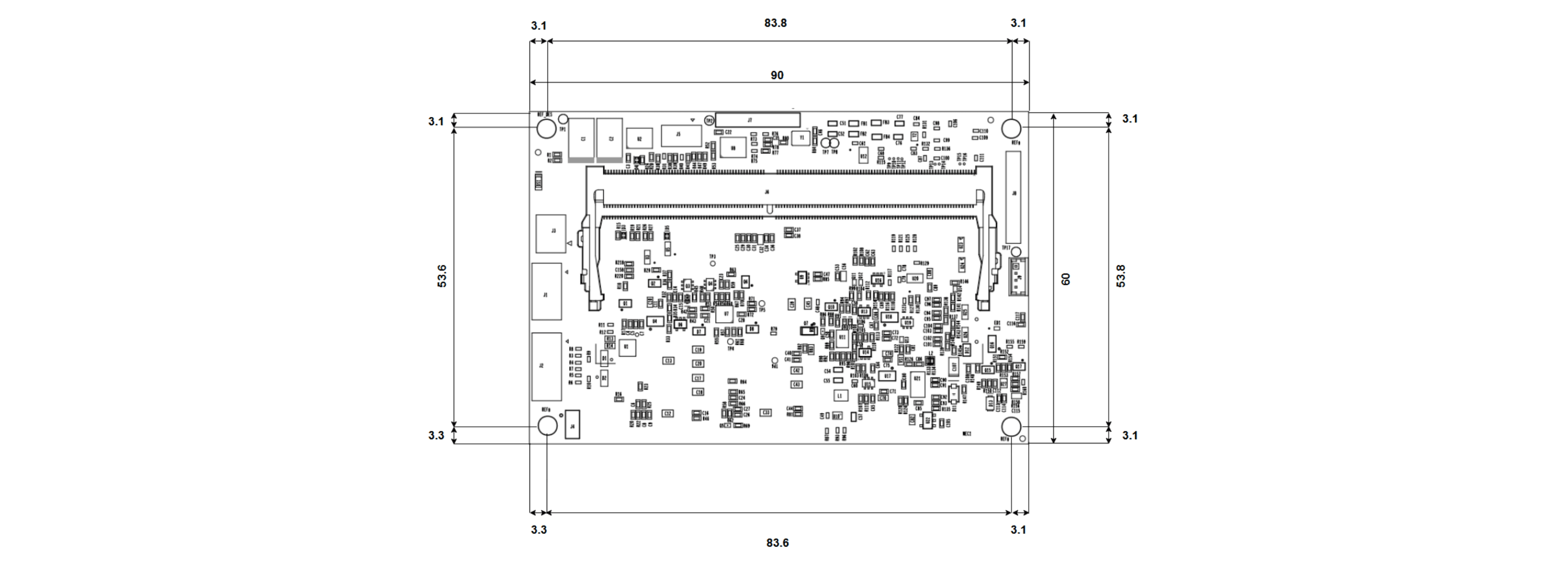

Mechanical Details
Note
All dimensions are in millimetres (MM).
| Dimension | Value |
|---|---|
| PCB Length | 90 mm |
| PCB Width | 60 mm |
| PCB Height | 17.5 mm |
| Weight | 37.5 g |
Download: AstrOptix V1 Step.stp (STEP)
Note
All dimensions are in millimetres (MM).
| Dimension | Value |
|---|---|
| PCB Length | 90 mm |
| PCB Width | 60 mm |
| PCB Height | 17.5 mm |
| Weight | 37.5 g |
Download: AstrOptix V1 Step.stp (STEP)
