Dimensions

Note

All dimensions are in millimeters (mm)

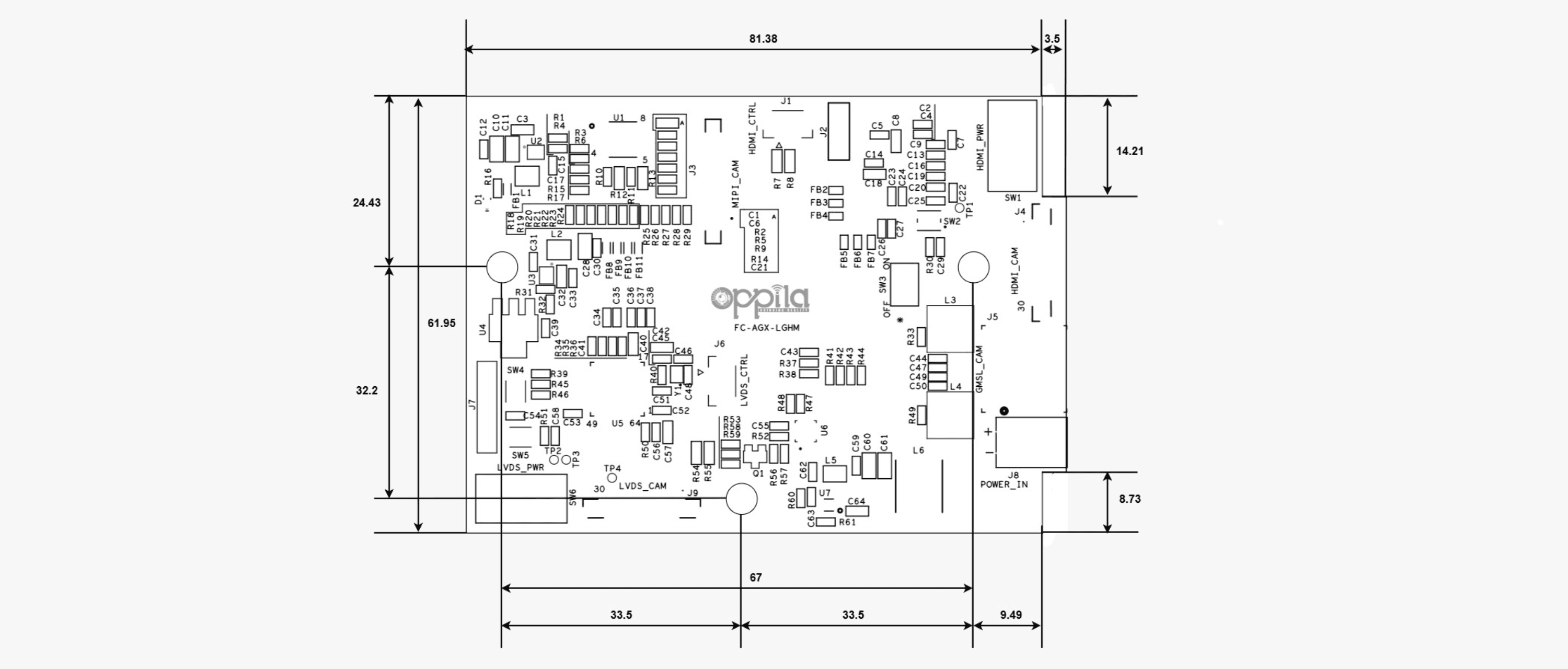

AGX Orin MIPI CSI-2 Bridge Board Dimensions

Dimension	Value
PCB Length	84.87 mm
PCB Width	61.95 mm
Weight	38.4 g

3D Model

Drag to rotate · scroll to zoom · right-drag to pan

Download: AGX Orin MIPI CSI-2 Bridge Board.stp (STEP)
