| Input Voltage | 12–24 V DC regulated, wide-input (Molex Micro Fit+ 2-pin connector) |

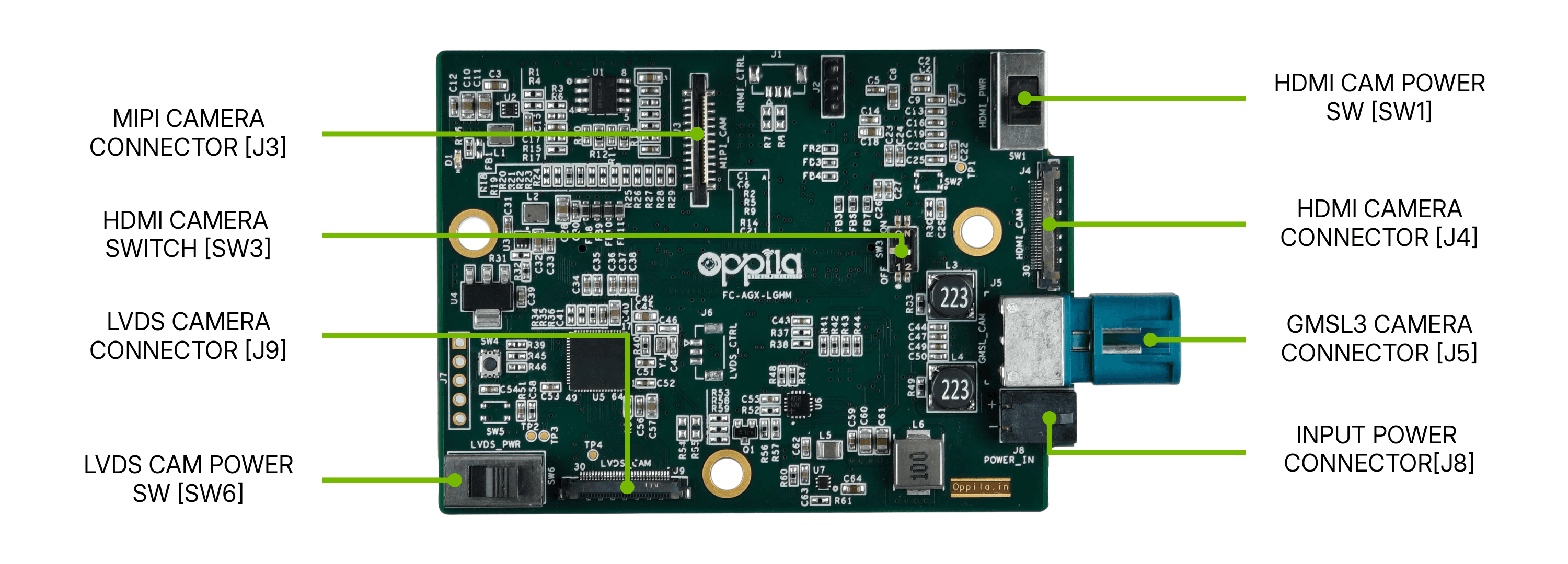

| Camera Interface | 4 independent ports: LVDS–MIPI CSI-2 (30-pin KEL, LVDS Single mode), HDMI–MIPI CSI-2 (30-pin KEL, HDMI), 2-ch GMSL–MIPI CSI-2 (MATE-AX dual coax), native MIPI CSI-2 (22-pin FPC) |

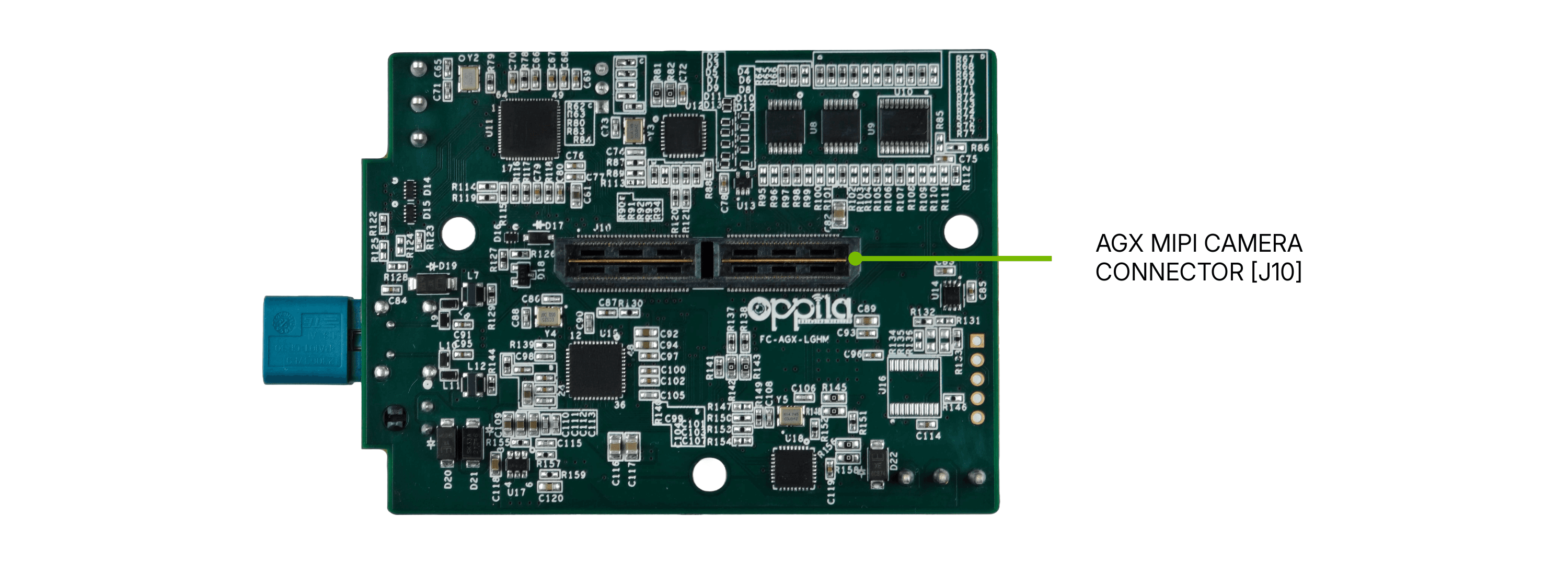

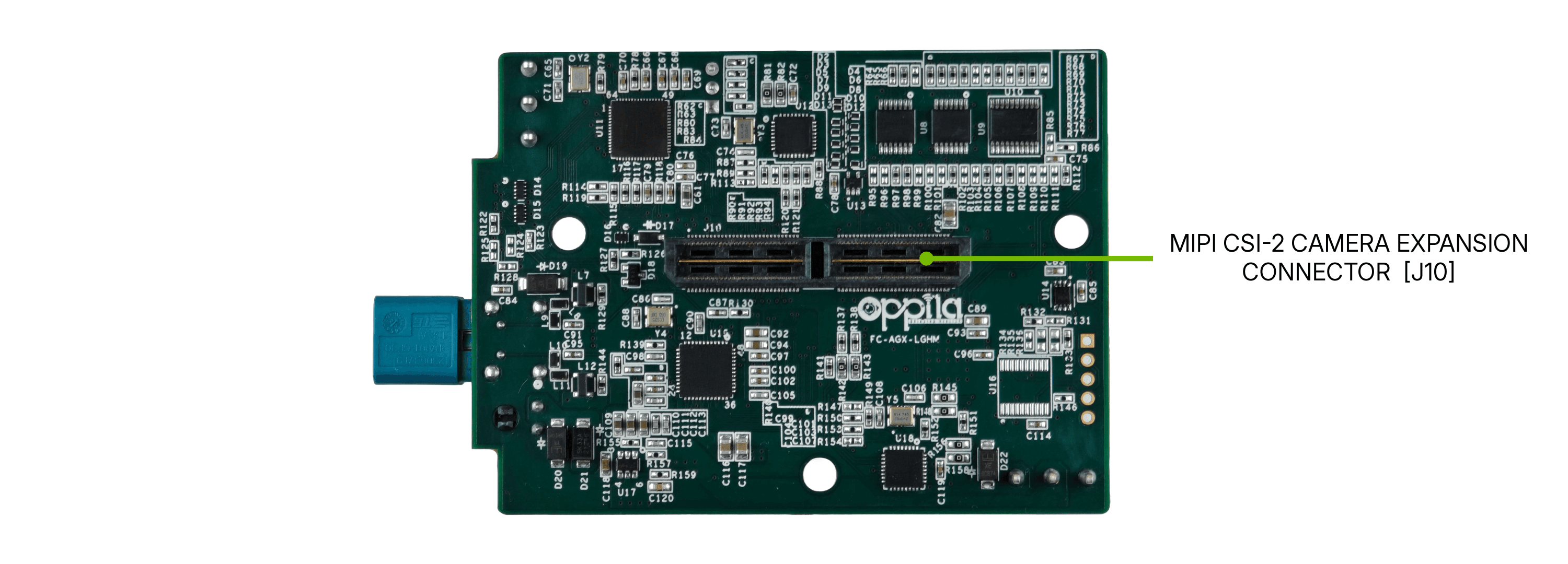

| MIPI CSI-2 Output | AGX Orin camera expansion connector compatible — 120-pin Samtec QTH-060 series, 16-lane MIPI CSI-2 |
| I²C Architecture | 3 independent I²C MUX ICs, each dedicated to a camera port group: TCA9544 for LVDS camera + control, TCA9543 for HDMI camera + control, TCA9542 for native MIPI. GMSL3 connects directly to the host I²C bus, bypassing the MUX architecture entirely |
| Supported Video Format | Up to Full HD 4K 60fps (camera dependent) |
| Camera Control | VISCA over UART (3.3 V CMOS) bridged to I²C (host) for LVDS/HDMI ports |
| Indicators | Power LED (Green) |
| Board Dimensions (L × W) | 84.87 × 61.95 mm |
| Weight | 38.4 g |
| Operating Temperature | –20 °C to +85 °C |
| Compliance | MIPI CSI-2 Specification, RoHS |
| Recommended Supply | 12 V / 3 A regulated (wide-input 12–24 V tolerant) |
