PAL Camera Integration with Jetson Orin

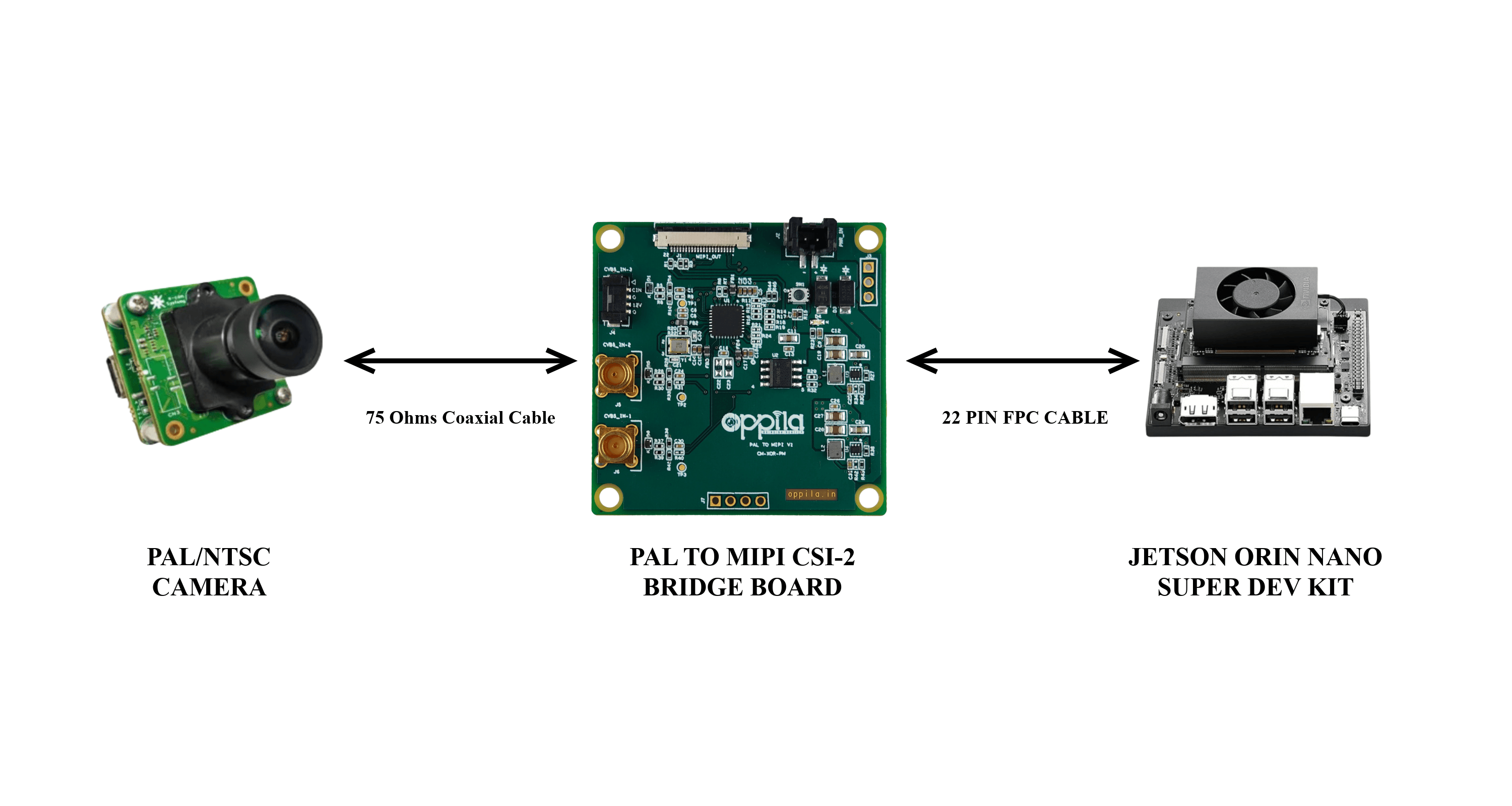

System Block Diagram

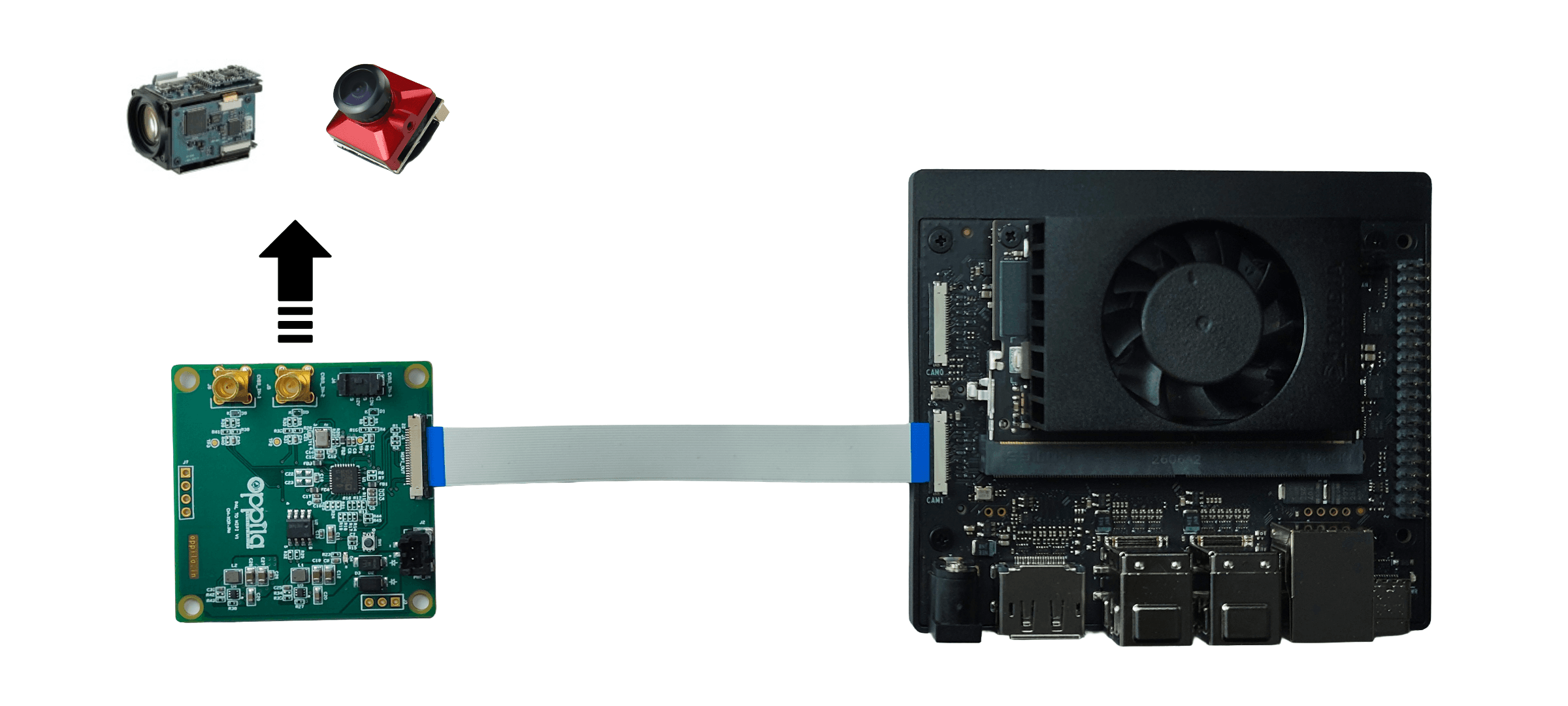

Hardware Setup
Supported Cameras
| Coming | Soon |
|---|
Integration Steps
1
Camera → Bridge board
Connect your analog PAL/NTSC composite (CVBS) camera to one of the input connectors (J2/J6 MCX ports or J5 Molex connector) on the bridge board.
2
Bridge board → Jetson CSI Port
Connect the J1 MIPI CSI-2 connector of the bridge board to the Jetson carrier board CSI Port [CAM1] using the 15-pin FPC cable.
3
Power Supply
Provide a regulated 12 V DC supply to the J2 connector of the bridge board.
