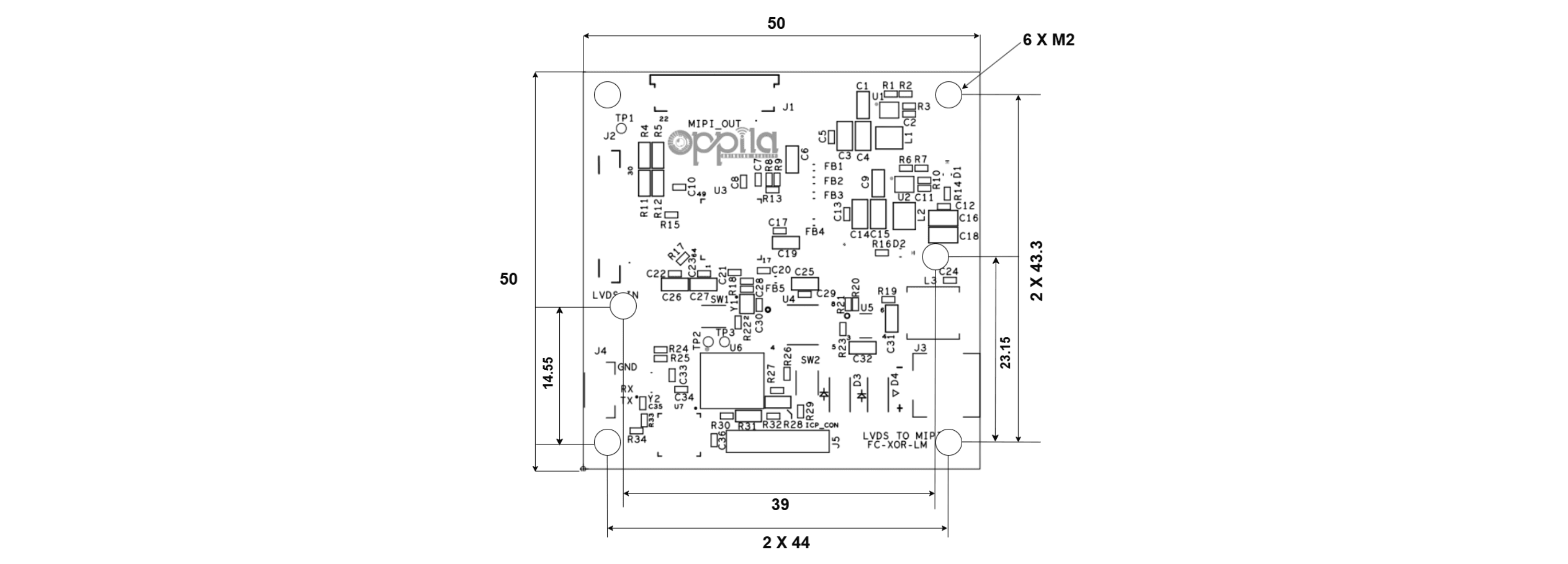

Dimensions
Note
All dimensions are in millimeters (mm)
| Dimension | Value |
|---|---|
| PCB Length | 50 mm |
| PCB Width | 50 mm |
| Weight | 10.8 g |
3D Model
Drag to rotate · scroll to zoom · right-drag to pan
Download: LVDS-MIPI_FC-XOR-LM.stp (STEP)
Note
All dimensions are in millimeters (mm)
| Dimension | Value |
|---|---|
| PCB Length | 50 mm |
| PCB Width | 50 mm |
| Weight | 10.8 g |
Download: LVDS-MIPI_FC-XOR-LM.stp (STEP)
