Image Bringup Overview

This guide covers the complete bringup process for the PAL–MIPI CSI-2 bridge board using a pre-built L4T Oppila image. Unlike the manual driver integration workflow, this path uses a ready-to-flash image that already includes the required driver, device tree, and all configurations.

Note

The setup procedure applies to analog PAL/NTSC CVBS cameras connected via composite video input.

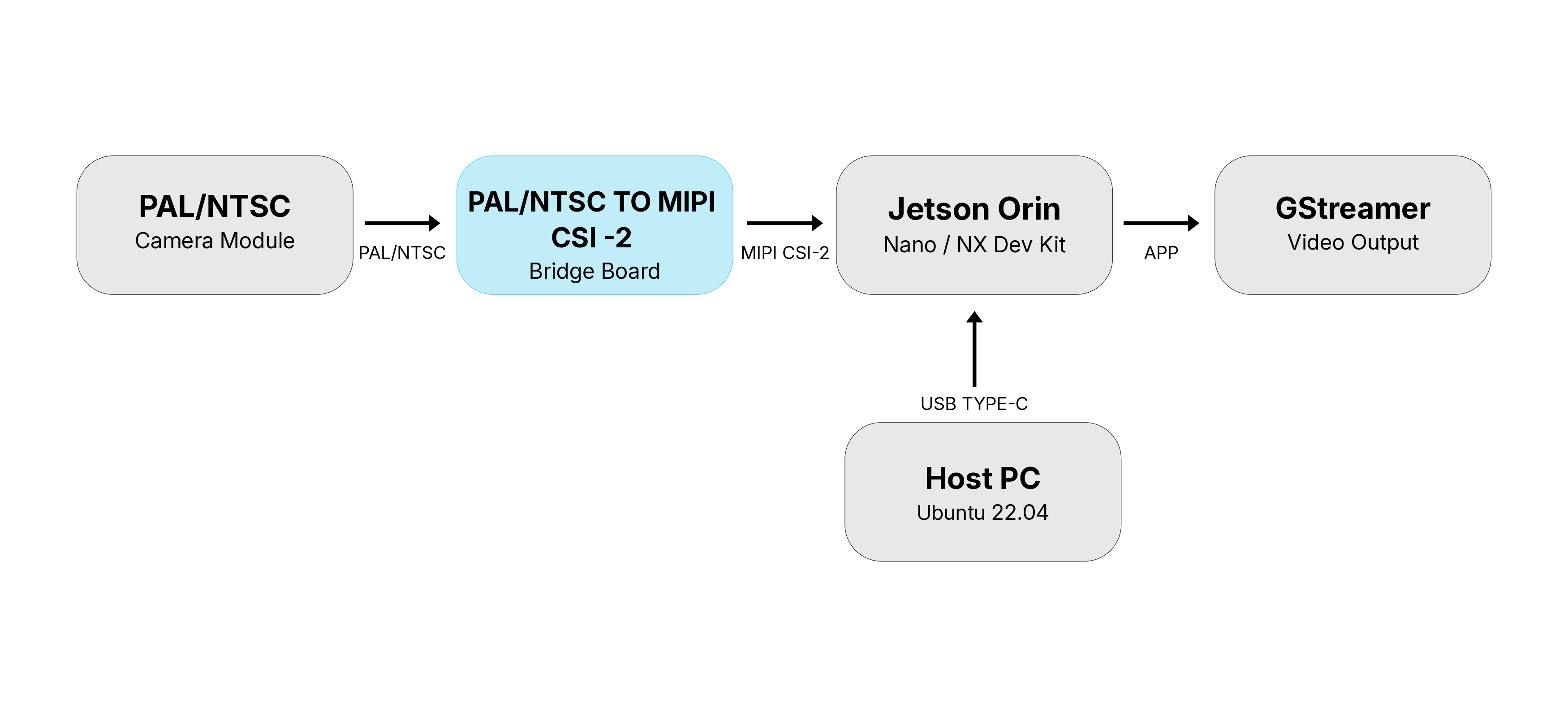

System Architecture

System Architecture

1

Host PC

Host PC running Ubuntu 22.04 connects to the Jetson Orin Super Developer Kit via USB Type-C for flashing.

2

Analog Camera

Analog PAL/NTSC camera outputs composite video (CVBS) to the Bridge board.

3

Protocol conversion

Bridge board converts PAL/NTSC analog video to MIPI CSI-2 and streams it to the Jetson Orin.

4

GStreamer pipeline

Jetson exposes the camera as a V4L2 device. GStreamer reads the stream and renders the video output.

Prerequisites

Before starting, ensure the following are ready:

Host

Host PC

Ubuntu 20.04 or 22.04

Hardware

NVIDIA Jetson Orin Nano / NX module

With Jetson Orin Super Developer Kit carrier board

PAL–MIPI CSI-2 Bridge Board

With analog PAL/NTSC CVBS camera

USB Type-C cable

For flashing — host PC to Developer Kit

NVMe SSD

SSD for onboard storage on the carrier board

Power adapter

Compatible with Developer Kit

Jumper wireRecovery mode

Short FC_REC to GND on the carrier board before powering on

Required Files

Note

These files are not publicly available. Contact Oppila Support for the files.

OPPILA_ORIN_L4T_36.5.0_PM.tar.bz2

Pre-built Jetson OS Image archive.
