← Back to Overview

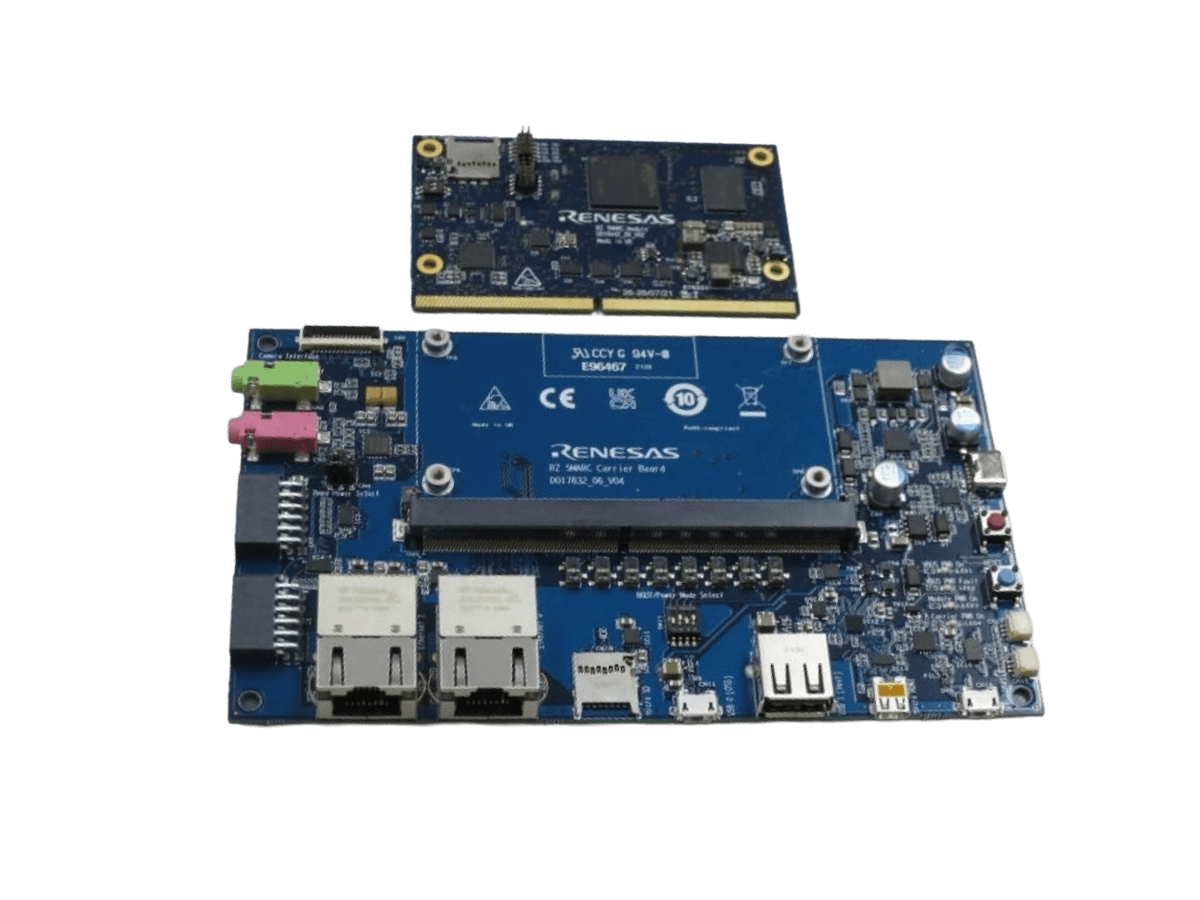

Main Product

Renesas RZ/G2 Series

Production-grade camera drivers for RZ/G2L, RZ/G2LC, and RZ/G2UL, supporting versatile MIPI CSI-2 configurations for industrial and HMI applications.

  • Support for RZ/G2L, RZ/G2LC, RZ/G2UL
  • Up to 4 Data Lanes (1.5 Gbps/lane)
  • Integrated VIN + ISP Pipeline
  • Cost-Effective Industrial Vision
Get Quote

MIPI CSI-2 Driver Operation

The RZ/G2L-family CRU/CSI2 supports 1, 2, or 4 data lanes in MIPI CSI-2 D-PHY mode at up to 1.5 Gbps per lane (per Renesas hardware manual). The VIN + ISP pipeline downstream of CSI2 handles input from MIPI-CSI or legacy parallel interfaces. Several formats are supported (RAW8–16, YUV, RGB variants) as input; output formats and processing (e.g. scaling, color conversion) are provided by the CRU/ISP block. Multiple virtual channels per CSI link are supported (up to 4 VCs). Real-world usage (e.g. on the official RZ/G2L SMARC EVK) has been demonstrated with sensors like OV5645 on CSI2, confirming the media-controller pipeline works under Linux. Consequently, RZ/G2 is suitable for cost-effective industrial, HMI, or embedded vision applications requiring up to 4-lane MIPI cameras — deterministic real-time performance will depend on sensor + lane config + ISP load + memory bandwidth.

Explore Other Renesas Families

Renesas RZ/V2 Series

Renesas RZ/V2 Series

Advanced AI-enabled camera solutions for RZ/V2L, RZ/V2M, and RZ/V2N, leveraging the same robust CSI-2 pipeline for edge-AI vision applications.
