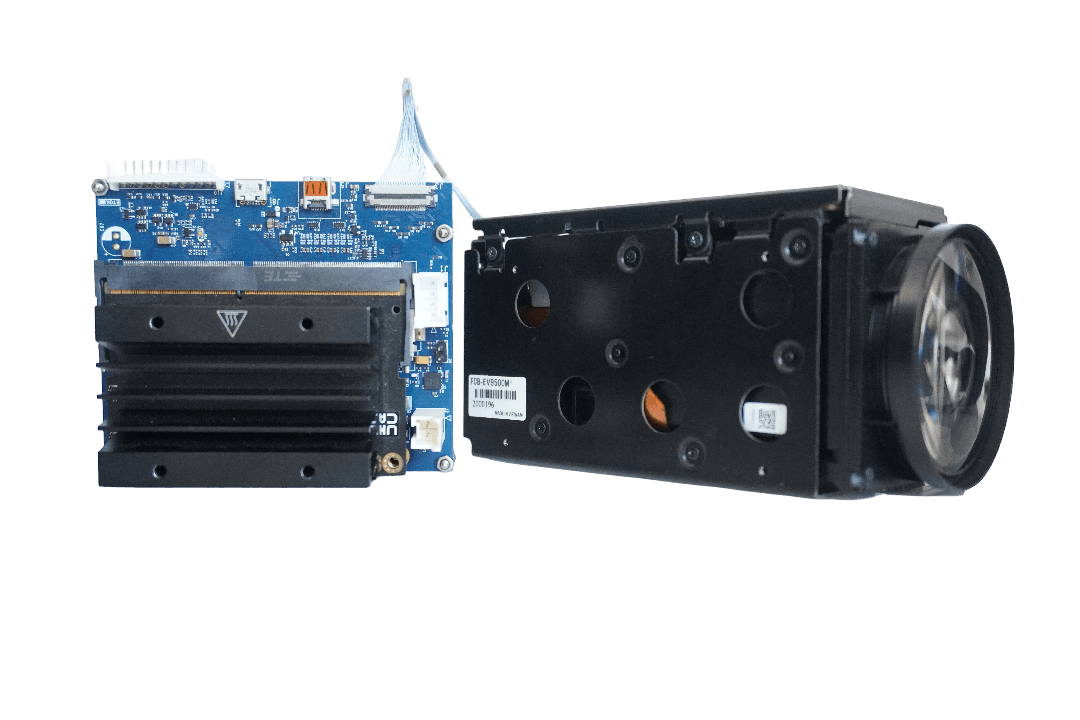

Nvidia Jetson Nano Carrier Board
Powerful carrier board designed for edge AI, robotics, and intelligent industrial applications.
Nvidia Jetson Nano Carrier Board
High-performance carrier board designed for AI edge computing, robotics, vision systems and industrial automation.
- Supports Sony FCB LVDS Cameras
- Dual USB 3.1 Ports & Gigabit Ethernet
- M.2 Key-E + Key-B Slots
- Industrial Temperature Range
- Compatible with Jetson Nano / Xavier NX / TX2 NX
Nvidia Jetson Nano Carrier Board – AI Edge Computing
The Nvidia Jetson Nano Carrier Board is a high-performance platform designed for next-generation AI applications. It supports the Nvidia Jetson Nano module, delivering powerful AI performance in a compact form factor.
Designed for industrial automation, robotics, and smart city applications, this carrier board features a robust set of I/O interfaces including Gigabit Ethernet, USB 3.1, and dedicated camera connectors. Its industrial-grade design ensures reliable operation in harsh environments.
Typical Applications Include:
- Autonomous Mobile Robots (AMR)
- Smart Surveillance & Security
- Industrial Inspection & Automation
- Edge AI Gateways
| Features | Description |
|---|---|
| Camera Compatibility | Compatible with Sony FCB Camera Blocks via a 30-pin KEL connector. Supports: FCB-EV9500M – Full HD MIPI Camera |
| 30-pin KEL Connector | Supports camera integration. |
| Storage | Supports Micro SD cards. |
| Ethernet Ports | Provides high-speed Gigabit Ethernet ports for wired Ethernet connections. |
| USB Ports | Micro-USB port (device mode only) |
| Display Interfaces | Stacked connector with HDMI™ Type A and VESA® DisplayPort™ |
| Expansion & Customization | M.2 Slots: Includes an M.2 Key-E slot for Wi-Fi/Bluetooth modules via PCIe Gen3 x1 GPIO Headers (40-pin): Supports I2C, SPI, UART, I2S, GPIOs, and PWMs |
| Dimensions | 108 × 83 mm |
| Weight | 160g (including Jetson module + heatsink) |
| Operating Temperature | -40°C to 85°C |
| Input Power | 12V / 3A |
