Long-Range Object Detection with InfinitEye AI Platform using Sony FCB-EV9520L and NVIDIA ORIN NX

InfinitEye AI Platform combines Sony FCB-EV9520L 30x optical zoom camera and NVIDIA ORIN NX to achieve long-range AI object detection up to 2 km—extendable to 4–5 km with a 2× teleconverter lens. Ideal for surveillance, monitoring, and edge AI applications.

---

InfinitEye AI Platform – Introduction

At OPPILA, innovation meets performance through InfinitEye, a next-generation long-range AI vision platform designed for real-time object detection at extreme distances. By integrating the Sony FCB-EV9520L Full HD camera block with NVIDIA ORIN NX, the system delivers exceptional clarity and accurate detection up to 2 km, even without external optics.

When a 2× teleconverter lens is added, the detection range extends to 4–5 kilometers, enabling use in advanced surveillance, critical infrastructure monitoring, traffic enforcement, border security, and remote vision detection systems.

---

System Components

InfinitEye is built using a high-performance hardware and AI software ecosystem optimized for edge deployment.

Hardware Stack:

Sony FCB-EV9520L Camera Block

• Full HD 1920×1080 @ 60 FPS
• 30× Optical Zoom with autofocus
• Enhanced low-light performance
• Built-in image stabilization
• Ideal for long-range clarity

NVIDIA Jetson ORIN NX

• 100 TOPS AI compute performance
• Ampere GPU: 1024 CUDA cores + 32 Tensor Cores
• 8-core Arm Cortex-A78AE CPU
• Ideal for high-speed inference at the edge

LVDS to MIPI CSI-2 Camera Driver

• Custom V4L2-based driver
• Optimized for high-bandwidth RAW video streaming
• Low-latency MIPI CSI-2 interface
• Stable 1080p60 real-time capture

---

AI Software Stack:

InfinitEye integrates a powerful AI pipeline optimized for performance:

• YOLOv8 → Ultra-fast object detection
• TensorFlow / PyTorch → Training & fine-tuning
• TensorRT + DeepStream + Jetson-Inference → Accelerated inference
• DeepSORT → Multi-object tracking
• Jetpack 5.1.2 → Optimized deployment environment

This ecosystem ensures high FPS, low latency, and consistent accuracy even at extreme ranges.

---

Achievements: Detection at 2–4 Kilometers

InfinitEye achieves outstanding long-range visibility due to:

• Sony FCB-EV9520L 30× zoom optics
• High-quality Full HD imaging at 60 FPS
• ORIN NX’s powerful GPU-accelerated AI inference
• Optimized streaming and low-latency processing pipeline

Native Detection Range:

• Up to 2 km (no additional optics)

Enhanced Detection Range:

• Up to 4–5 km using a 2× teleconverter lens

System Highlights:

• Precise long-distance focus
• < 30 ms processing latency
• Stable Full HD 60 FPS video
• High-accuracy detection of humans, vehicles, aircraft, wildlife

These capabilities enable InfinitEye to serve demanding applications such as border surveillance, traffic law enforcement, coastal monitoring, forest surveillance, and critical infrastructure protection.

---

Performance Benchmarks

Metric	Value
Image Resolution	Full HD 1920x1080
Latency	< 50 ms (end-to-end)
Detection Range	2 km native, 4–5 km with 2× teleconverter
FPS	60 FPS
Accuracy	High precision at long distance

The system is further scalable to 10 km detection with advanced optical modules.

---

Real-World Results

Video demo link:

https://youtu.be/fb79swHFroQ?si=ojD6VUI1UE6XLLJi

---

Captured Highlights

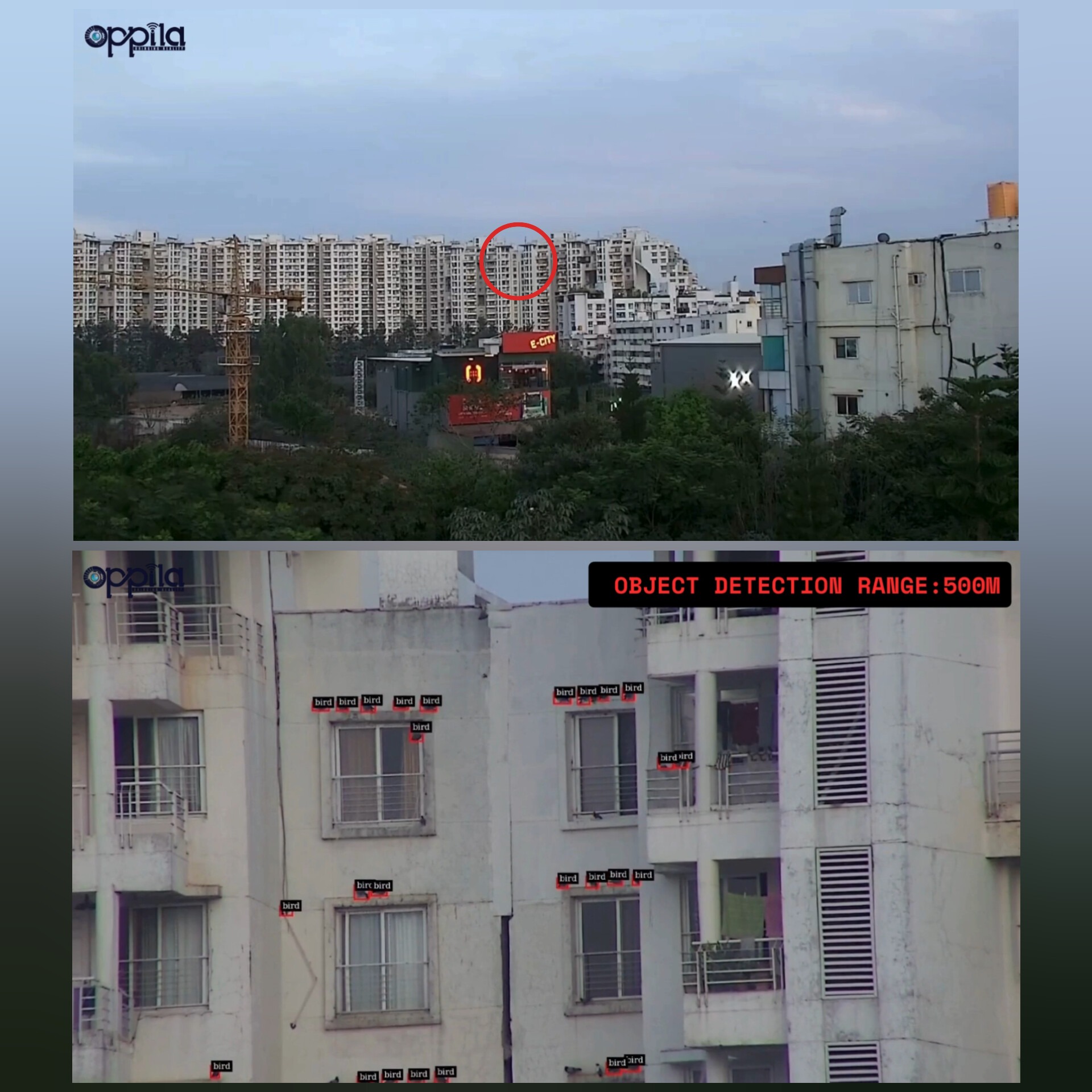

1. Bird detected at 500 meters

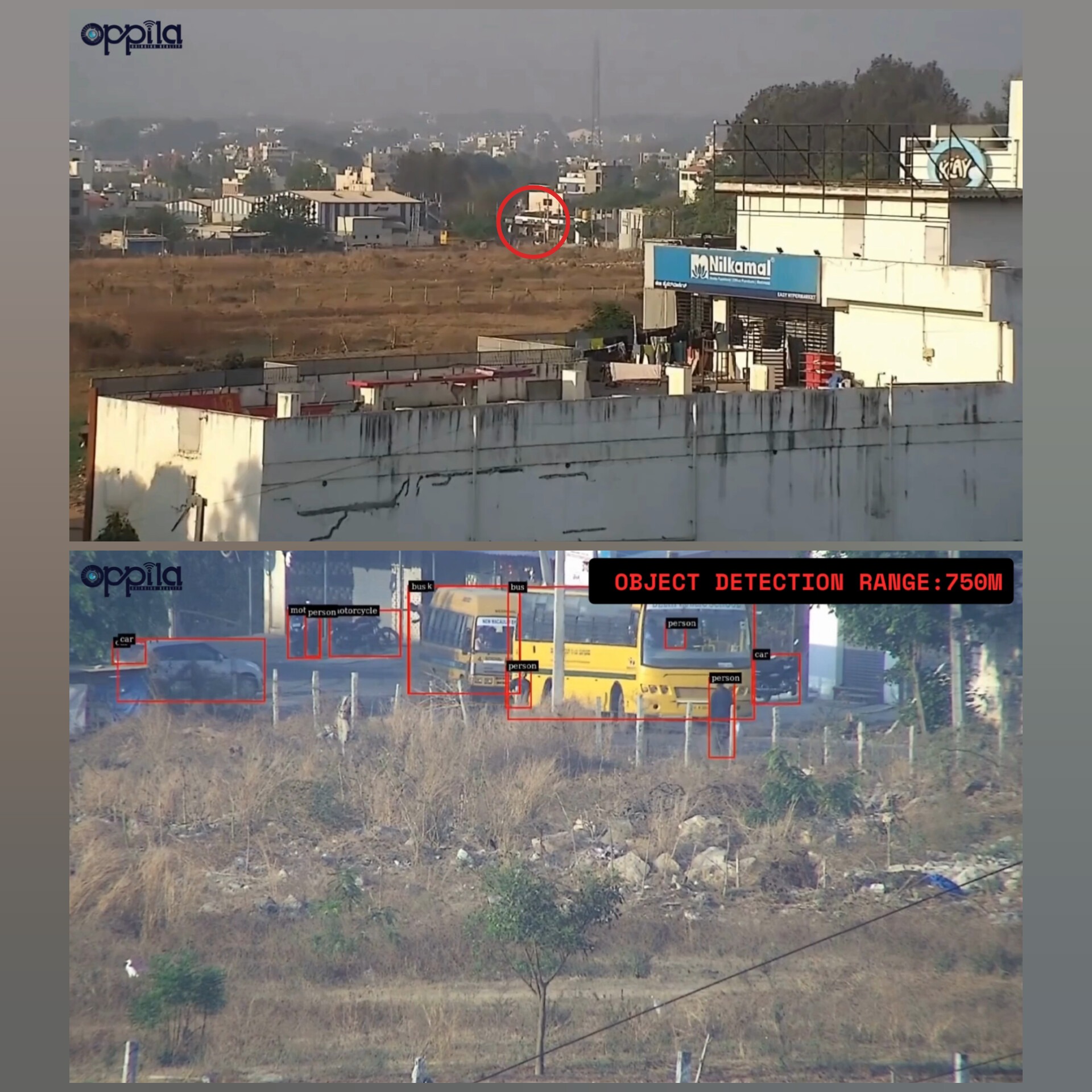

2. Human, bus, and internal details detected at 750 meters

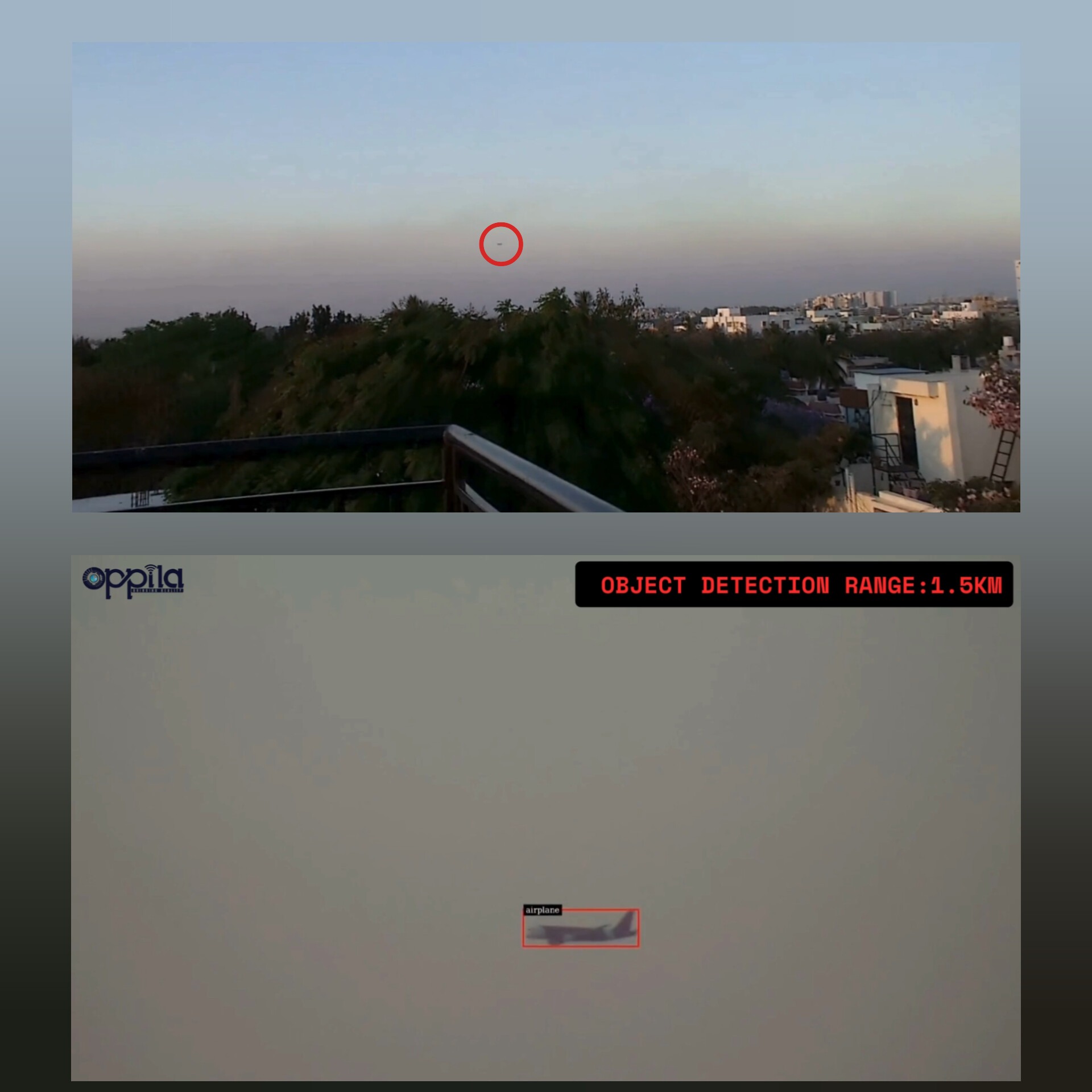

3. Aircraft detected at 1.5 km

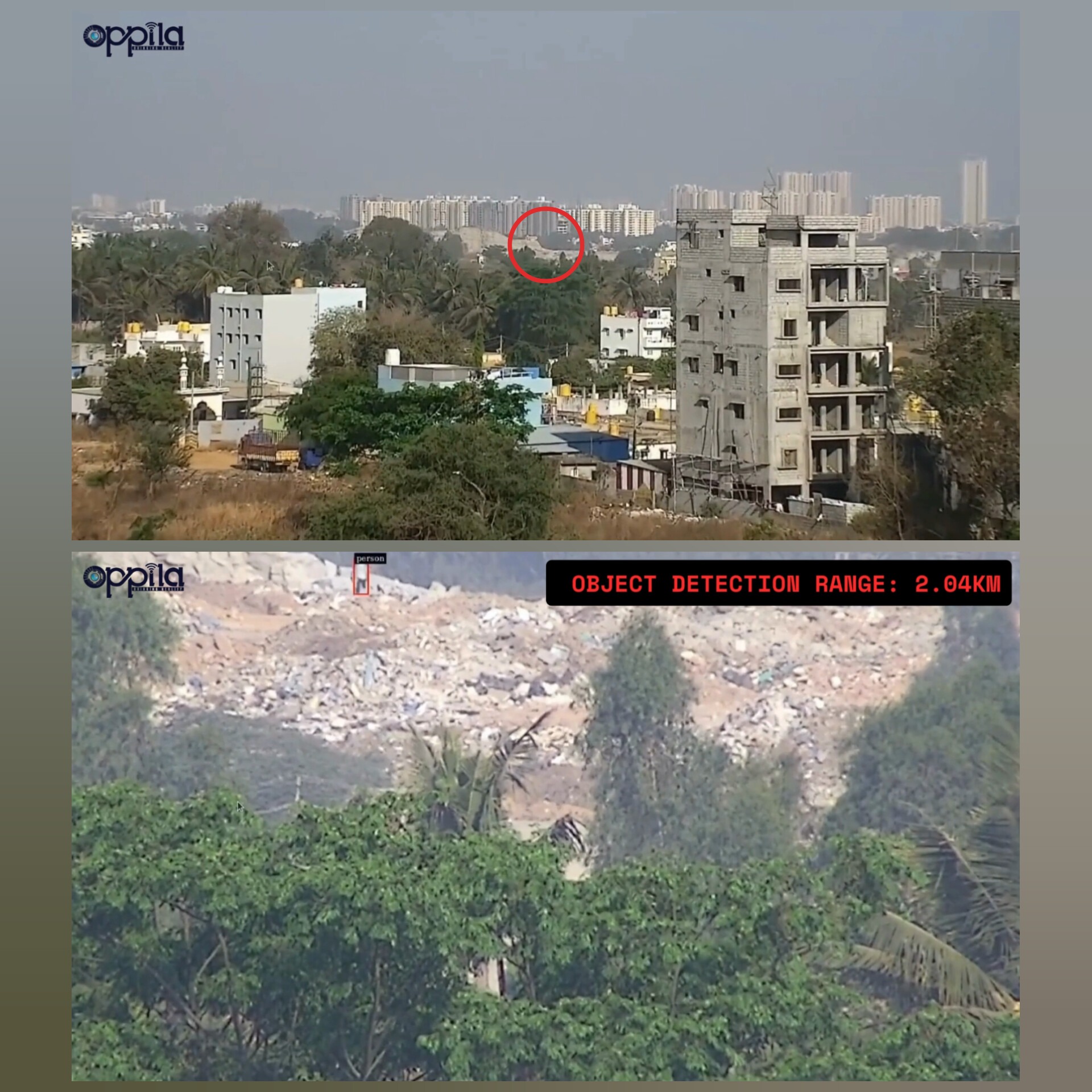

4. Person detected at 2 km

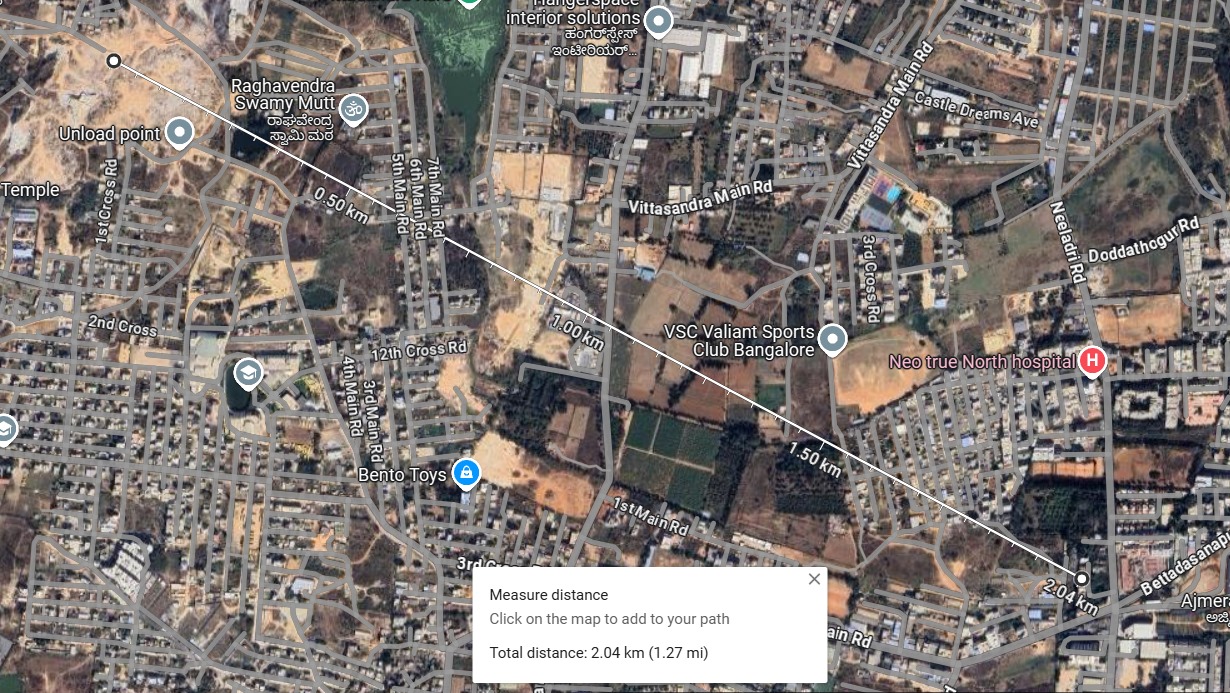

Detection distances were validated using GPS coordinates and Google Maps.

---

Summary

At OPPILA, we are advancing the limits of edge AI vision. The InfinitEye AI Platform, powered by Sony FCB-EV9520L, NVIDIA ORIN NX, and OPPILA’s AI software stack, is redefining what’s possible in remote monitoring and intelligent surveillance.

With capabilities extending across several kilometers and ultra-low latency processing, InfinitEye brings unparalleled accuracy and reach—making it ideal for next-generation AI-powered monitoring systems.

---
