| Specifications | Details |
| Power Supply | Input Voltage Range: 12V to 24V |
| Connectivity Interfaces | USB 3.0 Ports: 2 x USB Type-A USB 2.0 Ports: 2 x USB Type-A |
| Display Connectors | HDMI 2.0a Type-A Connector: Supports up to 4K resolution at 60Hz, HDCP 2.2, and audio output HDMI 2.0a Type-A Connector (over MIPI DSI): Supports up to 1080p resolution at 60Hz |

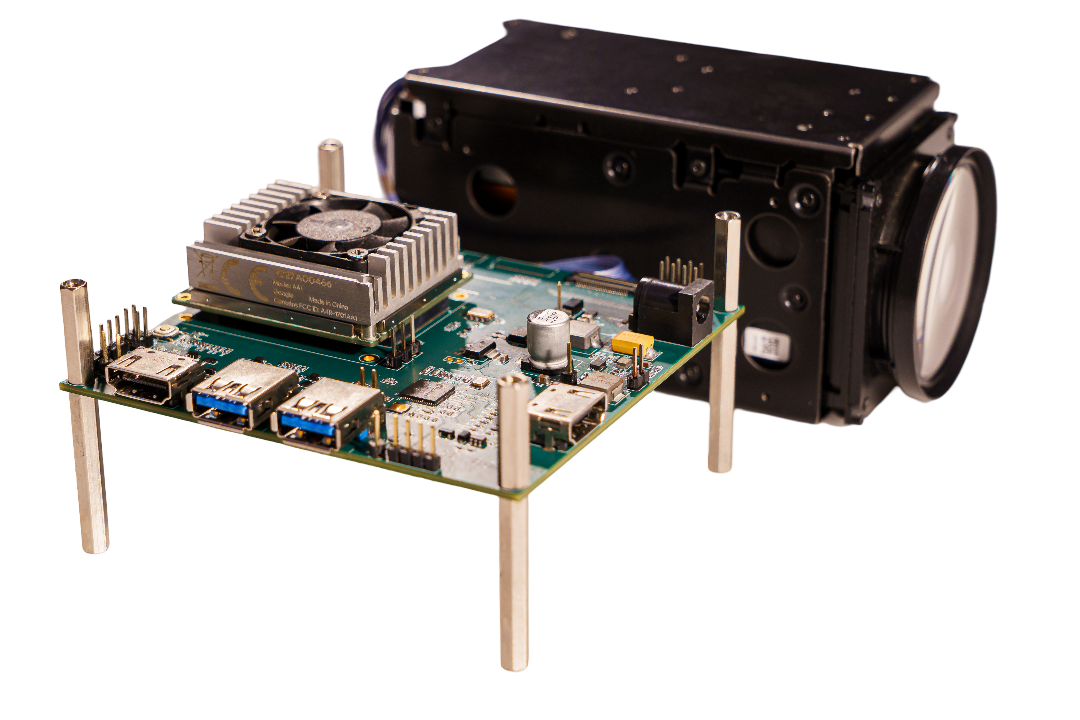

| Camera Interfaces | MIPI-CSI Connectors: 2 x 4-lane MIPI-CSI for camera integration Compatible Cameras:FCB-EV9500M Full HD MIPI Camera, Google Coral Camera Module |
| Board Features | Infrared Receiver: For remote control functionality Boot Select: Easy switch for system configuration Power LEDs: Indicates system status FAN On/Off Control: For efficient thermal management CPU ON/OFF Button: Convenient power control for the CPU |
| Connectivity | Coral SOM and Base Board Connector: High-performance, secure board-to-board connector |
| Mechanical Specifications | Board Dimensions: 100 x 95 mm |
| Environmental Specifications | Operating Temperature Range: -40°C to +85°C, suitable for operation in a wide range of environments |
