Specifications

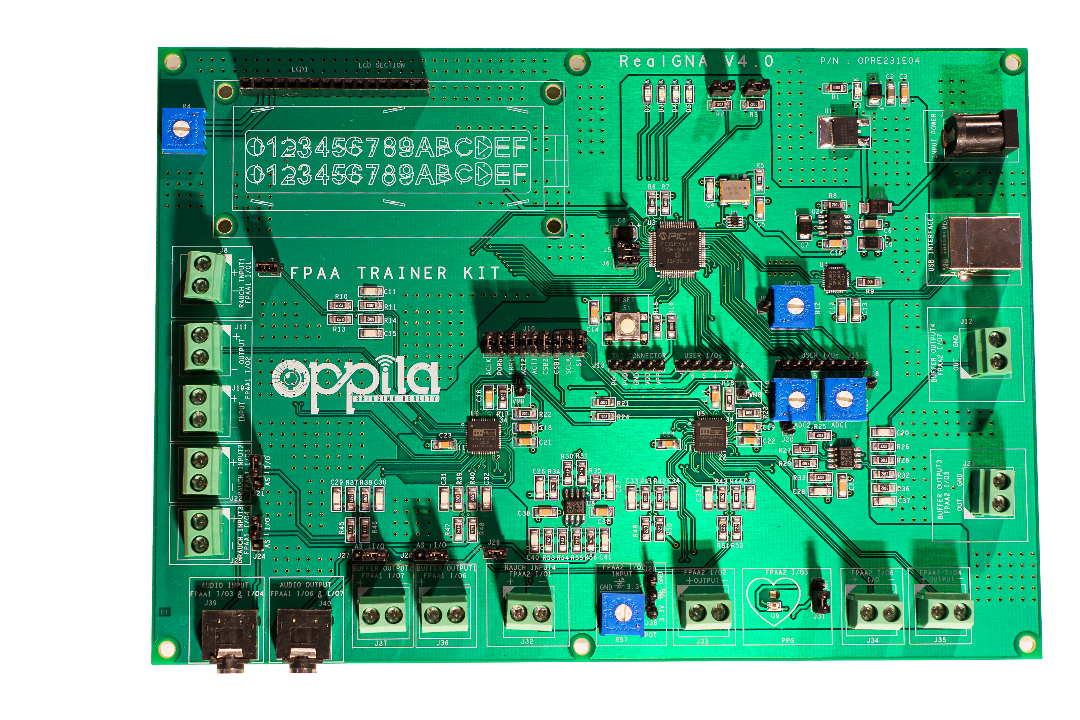

• Trainer Kit with two dpASPs (AN231E04) & 32bit PIC microcontroller with 40MHz clock, 512KB flash, 32KB data memory.
• Standard USB serial interface & 5 pin header for programming microcontroller.
• Two audio jacks for performing Audio Signal Processing.
• On-board three 10K Ohm Potentiometer.
• On-board ambient light sensor with the light source.
• Set of Terminal blocks to access the dpASP I/Os.
• 1 number of general purposes IO, 1 number of general-purpose input, 3 numbers of general-purpose outputs. And all general-purpose IOs, Input pins, Output pins accessed through terminal blocks from the board edge.
• Provision to configure 1 or 2 dpASP chains, store configuration in Flash & also to electrically isolate Analog and Digital section.
• Board size 180 x 120mm.
• Supply requirement- single supply +5V to +7V.
